Измеритель напряженности поля национального стандарта HD DTMB TV EXPLORER HD поддерживает мониторинг спектра декодирования аудио и видео

Ссылка на оригинал

Вес:

7.00 кг

Всего продаж:

2050 шт.

Минимальное количество для заказа:

1 шт.

Ссылка на оригинал

Доставим до Москвы: 24.12 - 03.1

от 762 000.00 ₽ за 1 шт.

762 000.00 ₽

Стоимость доставки в Россию: 6020.00 ₽

Оптом

от 2 шт.

762 000.00 ₽

от 30 шт.

746 125.00 ₽

от 50 шт.

730 250.00 ₽

Описание

TV EXPLORER HD DTMB 高清国标场强仪

This new jewel of thePROMAXrange will become a reference in the industry for being the very first meter of its kind to actually meet the requirements to be called a real HDTV instrument.

Would it be possible to have all those features in a 2 kg meter?

Video decoding: MPEG-2 and MPEG-4 H.264
Audio decoding: MPEG-1, MPEG-2 and AAC
Video formats: SD (standard definition) and HD (high definition)
Video resolutions: 1080i, 720p and 576i
Screen formats: 16:9 and 4:3
HDMI interface
DTMB, DVB-T, DVB-C and DVB-S/S2
CAM module (Conditional Access) for encrypted channels
TS-ASI input and output

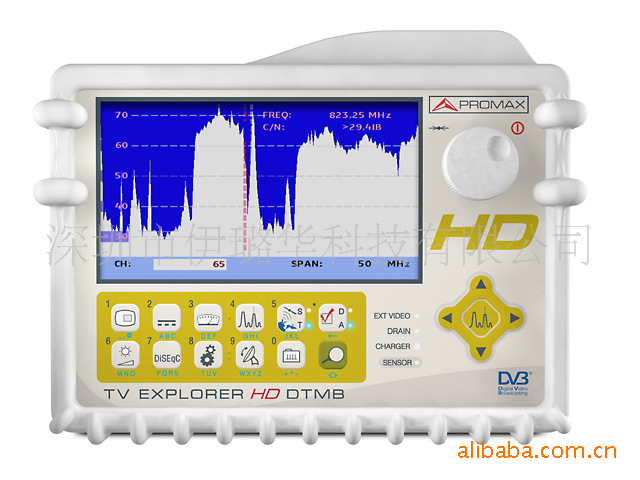

Click here to enlarge the image of the TV EXPLORER HD DTMB

Click on the image to enlarge it.

VIDEO Digital modulations Resolutions Video formats Colour system TV standard Aspect ratio	DTMB, DVB-T, DVB-S, DVB-S2, DVB-C 1080i, 720p, 576 i MPEG-2, MPEG-4 H.264 PAL, NTSC, SECAM M, N, B, G, I, D, K, L 16:9, 4:3
CONNECTIONS	RF, SCART, HDMI, TS-ASI (input and output), USB, Common Interface
DIGITAL MEASUREMENTS	Power, CBER, VBER, MER, C/N, Link margin, Noise Margin
ANALOGUE MEASUREMENTS	Level, V/A, C/N, desviación, FM deviation and demodulation
ADVANCED FUNCTIONS	Channel searching and channel tables generation (EXPLORER) Signal type automatic identifying (AUTO ID) Constellation diagram Echoes detection Built-in spectrum analyser with direct access keys Datalogger (measurements automatic acquisition and storage) for digital and analogue channels SAT IF test (IF distribution network response for satellite band) Attenuation test function (signal distribution network response for terrestrial band) DiSEqC generator and LNB supply Audio and Video recording and playing
