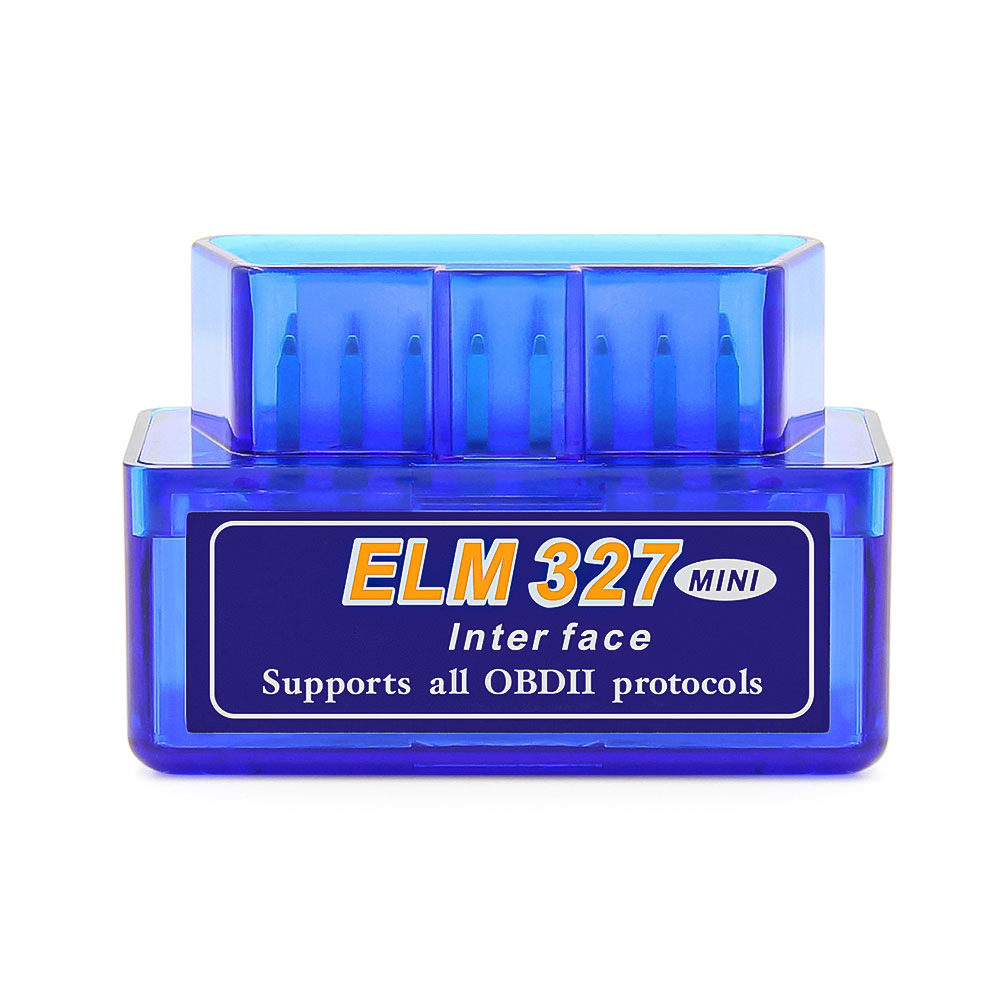

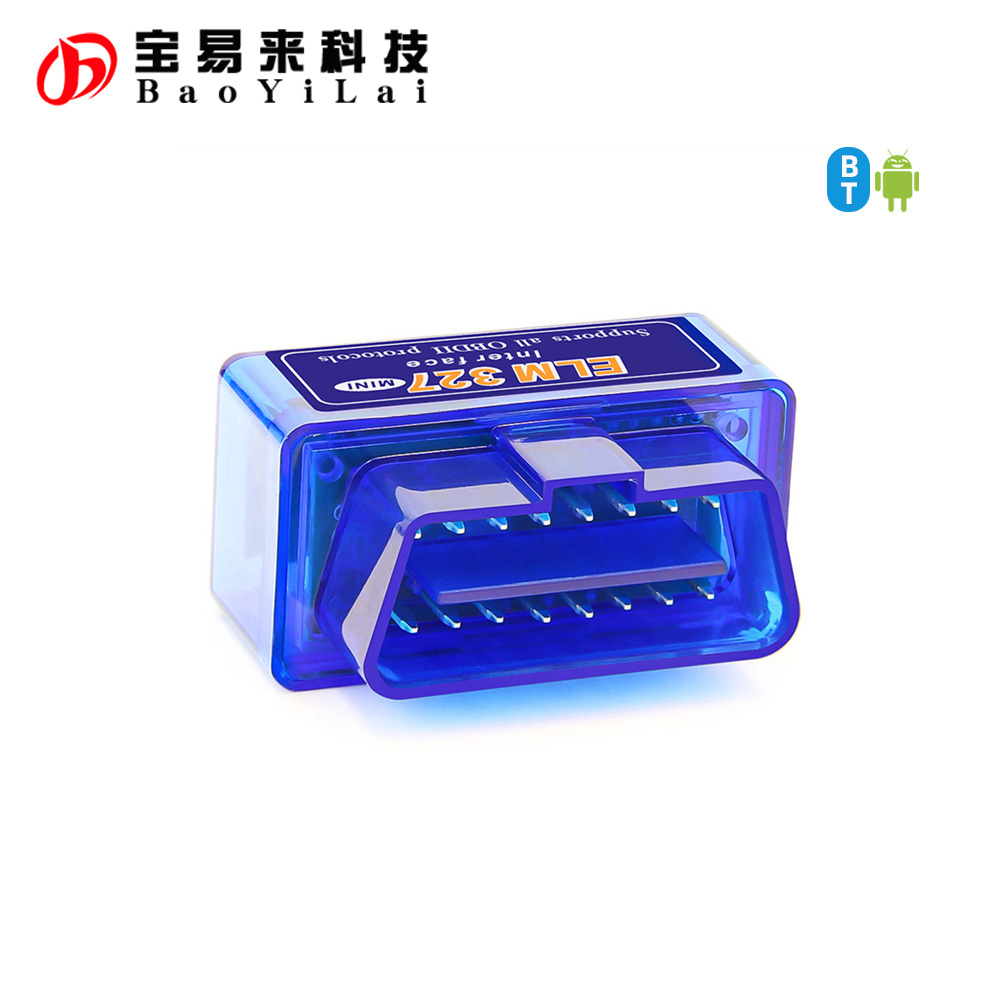

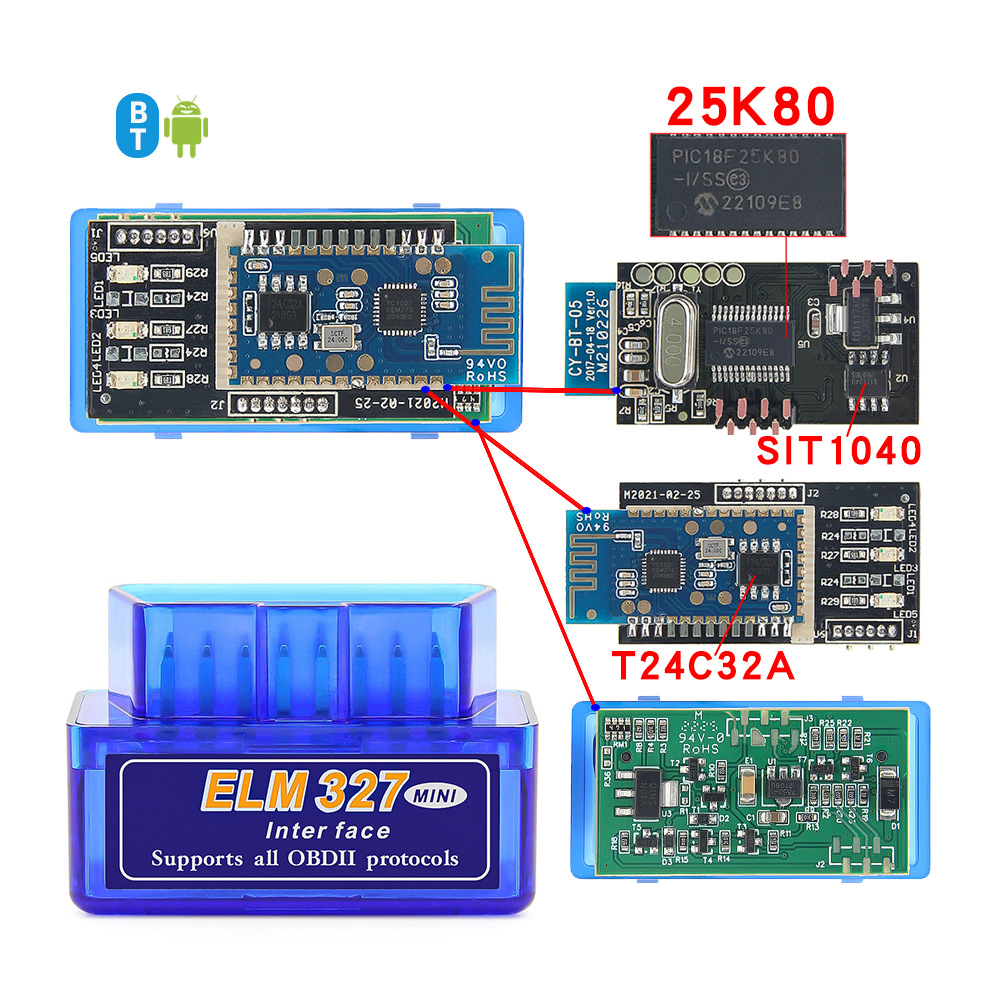

Супер OBD Elm327 Bluetooth 2.0 25K80 T24C32A OBD2 Диагностический сканер для автомобилей

5*4*3cm  0.03kg

super mini elm327 bluetooth obd2蓝牙汽车诊断适配器支持所有OBD-II自诊断系统及与其相兼容的通讯协议检测。通过与汽车的链接，可以把汽车的相关数据如：发动机转速、冷却液温度、燃油系统状态、车速、短期燃油修正、长期燃料修正、节气门开度、汽车故障码等等经蓝牙反映到手机电脑等移动设备中去，是一款非常强大使用非常方便的诊断器。

super mini elm327 bluetooth obd2蓝牙汽车诊断适配器支持所有OBD-II自诊断系统及与其相兼容的通讯协议检测。其功能暴扣1.读取通用及汽车制造商特定的诊断故障代码，并显示其定义（软件包含3000多个故障代码）2.清除故障代码，并关闭发动机（引擎）故障报警指示灯3.读取发动机即时动态数据流：发动机转速、计算负荷值、冷却液温度、燃油系统状态、车速、短期燃油修正、长期燃料修正、进气歧管压力、定时提前、进气温度、空气流量、节气门开度、氧传感器电压/短期燃油微调、燃油压力等等

支持OBD-II协议如下:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

Latest V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Latest V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol

Top 6 Reasons To Get Super MINI ELM327 Bluetooth

1. Software Version : V2.1

2. Hardware Version : V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

6. Supports ISO 9141, KWP2000, CAN bus

Supported protocols:

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings (user adjustable)

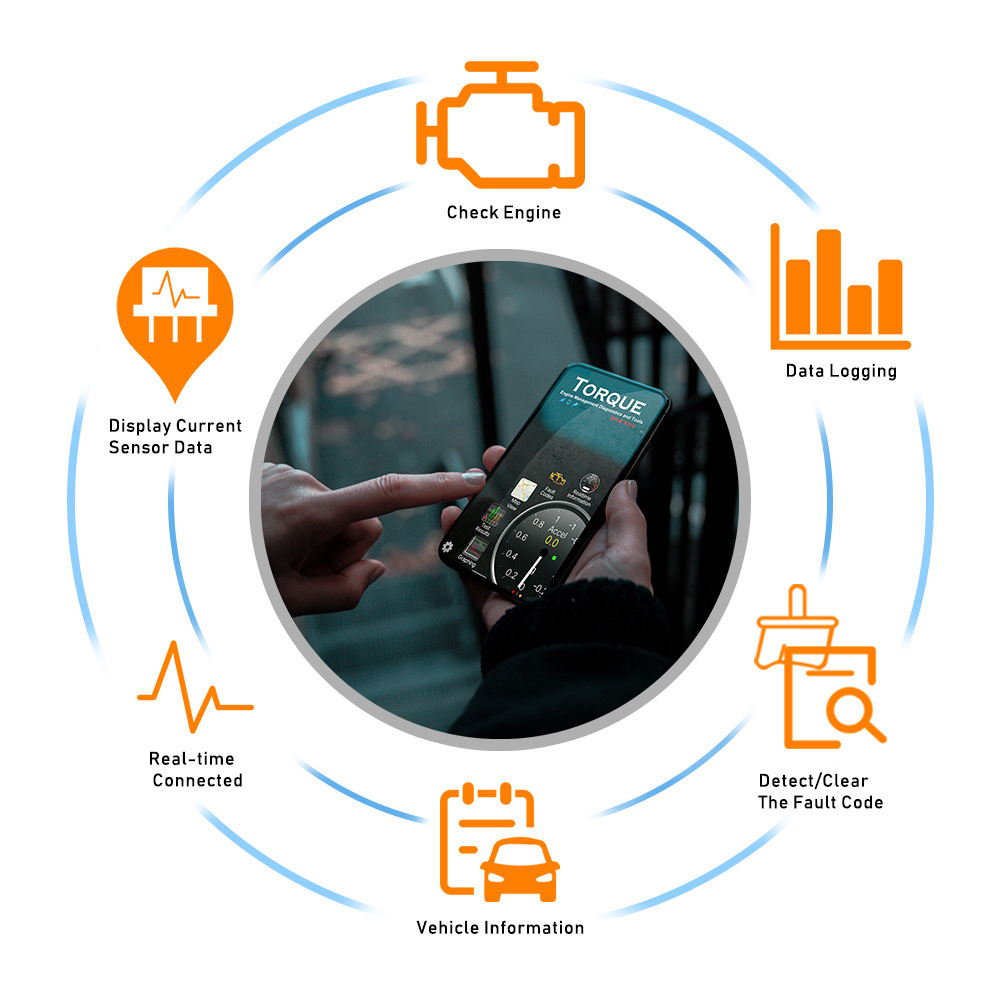

MINI ELM327 Bluetooth Functions:

•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

•Clear trouble codes and turn off the MIL ('Check Engine' light)

•Display current sensor data, including:

•Engine RPM

•Calculated Load Value

•Coolant Temperature

•Fuel System Status

•Vehicle Speed

•Short Term Fuel Trim

•Long Term Fuel Trim

•Intake Manifold Pressure

•Timing Advance

•Intake Air Temperature

•Air Flow Rate

•Absolute Throttle Position

•Oxygen sensor voltages/associated short term fuel trims

•Fuel System status

•Fuel Pressure

•Many others
