TJ08500 Электронная коммерция, экспортная онлайн-версия для покупок, центральный замок управления автомобиля, дартс Eagle 8113-m604, вход без ключа

Описание

NEW Wholesale Universal Car Auto Remote Control Central Door Lock Locking Keyless Entry System Kit

批发英文版无钥匙进入8113-m604免钥匙进入keyless entry电子配件

    8113-m604 keyless entry

 免匙进入中控锁系统

 *************************************

Features:
Remotely lock and unlock your car
Direction light flashing
LED indicator
Central door lock automatically
Remote car location
Remote trunk release
Rising power window
Universal for any cars

Specification:
Control box size: 8.6 x 6 x 2.5cm (L x W x H)
2 Remote Controllers size: 6.2 x 3.3x 1.2cm (L x W x H)
Distance: About 60 - 80 meters
Working Voltage: 12V
Working Current: <15mA
Indicator Current:15mA
Working Frequency: 315MHz

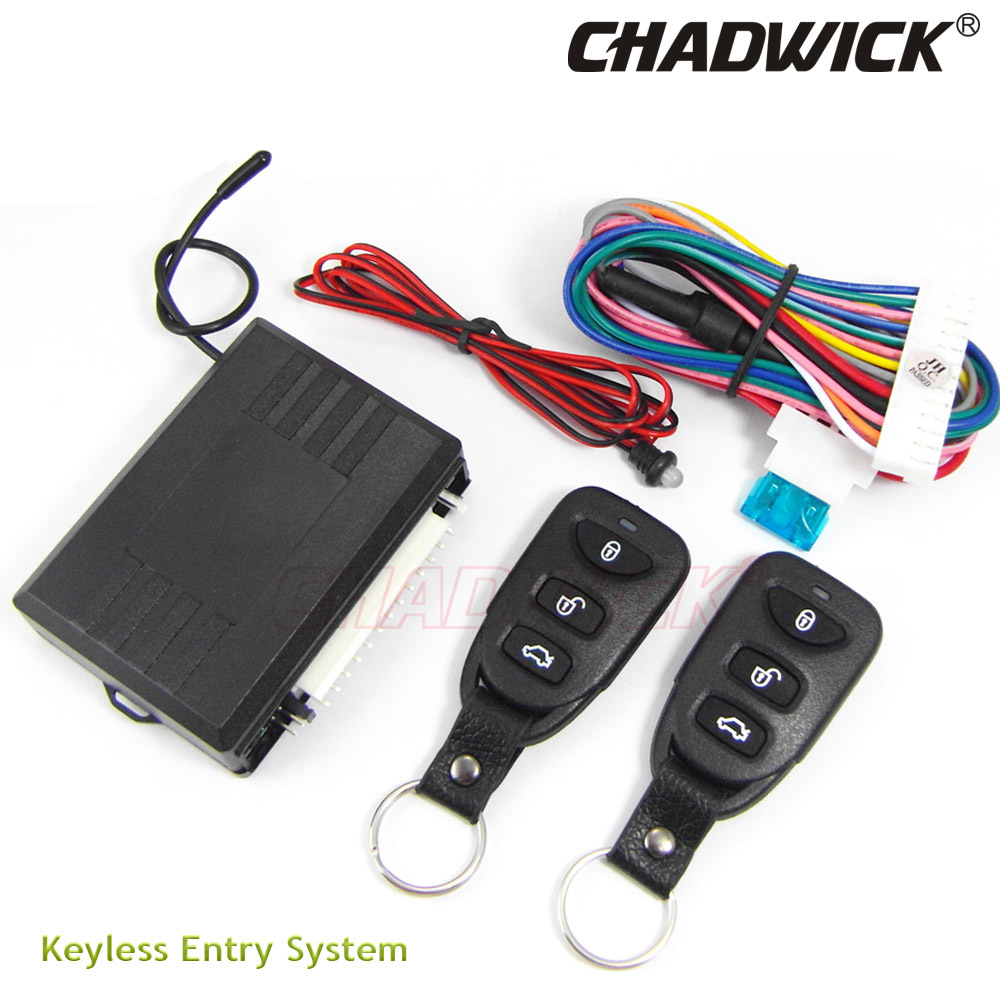

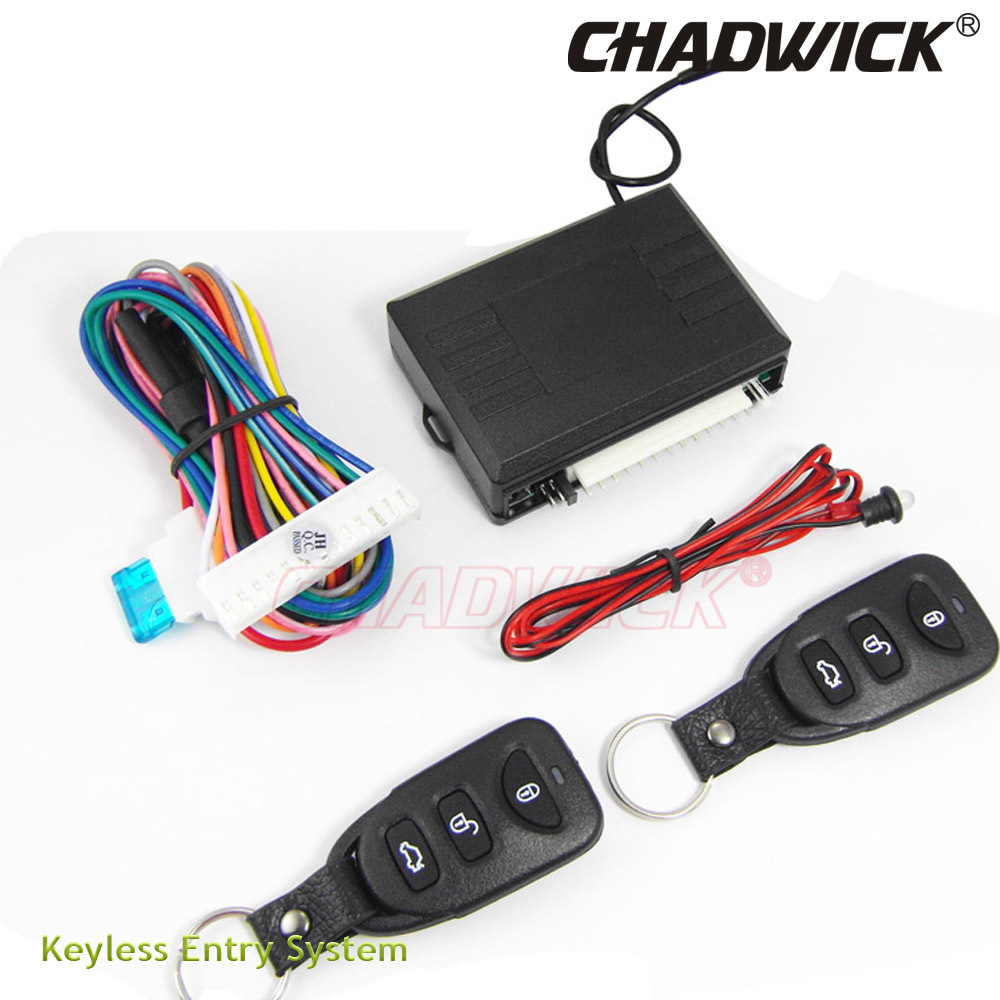

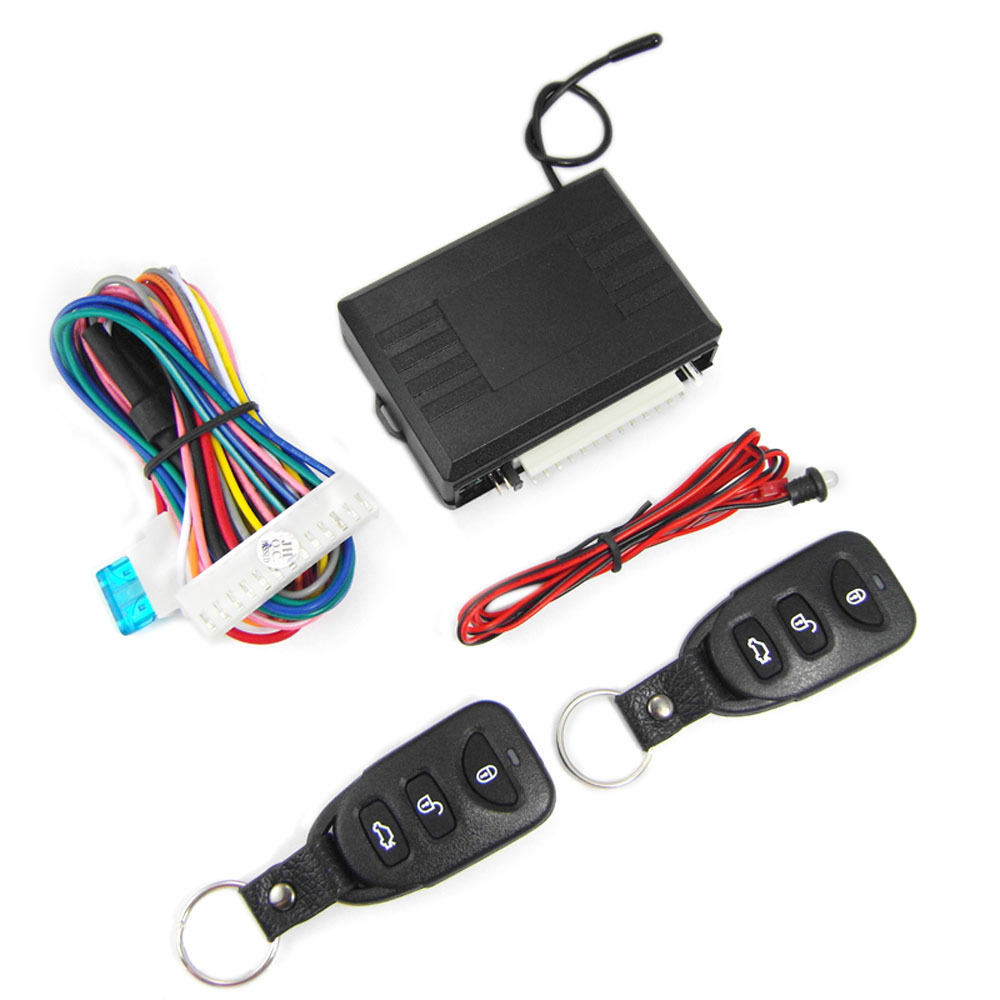

Package Included:

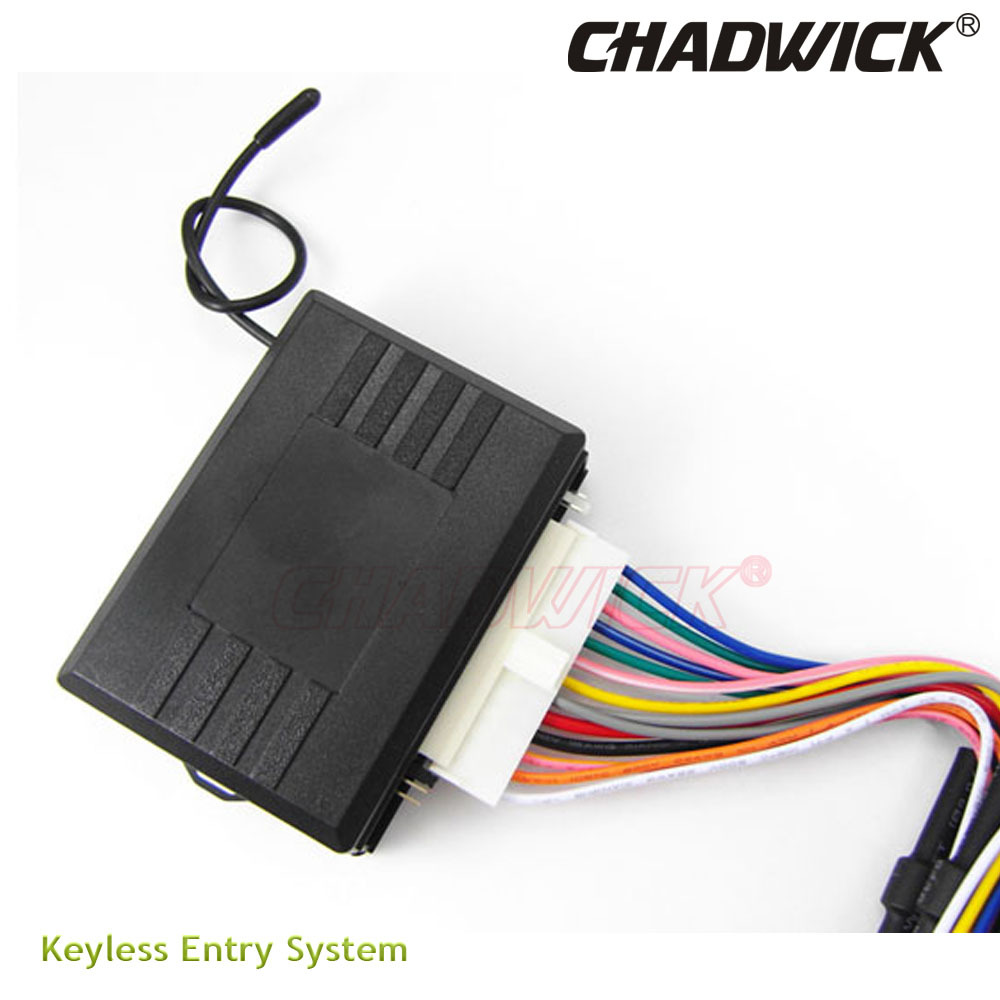

1 x Control box

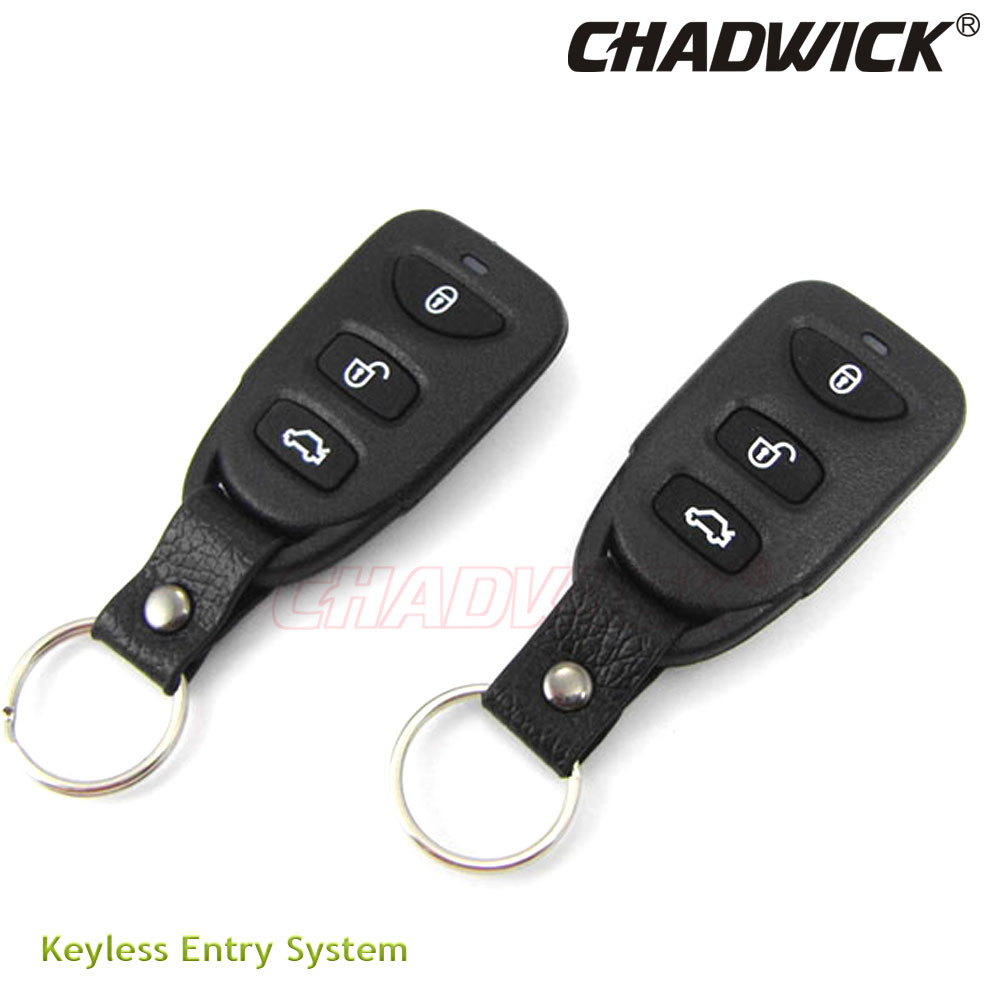

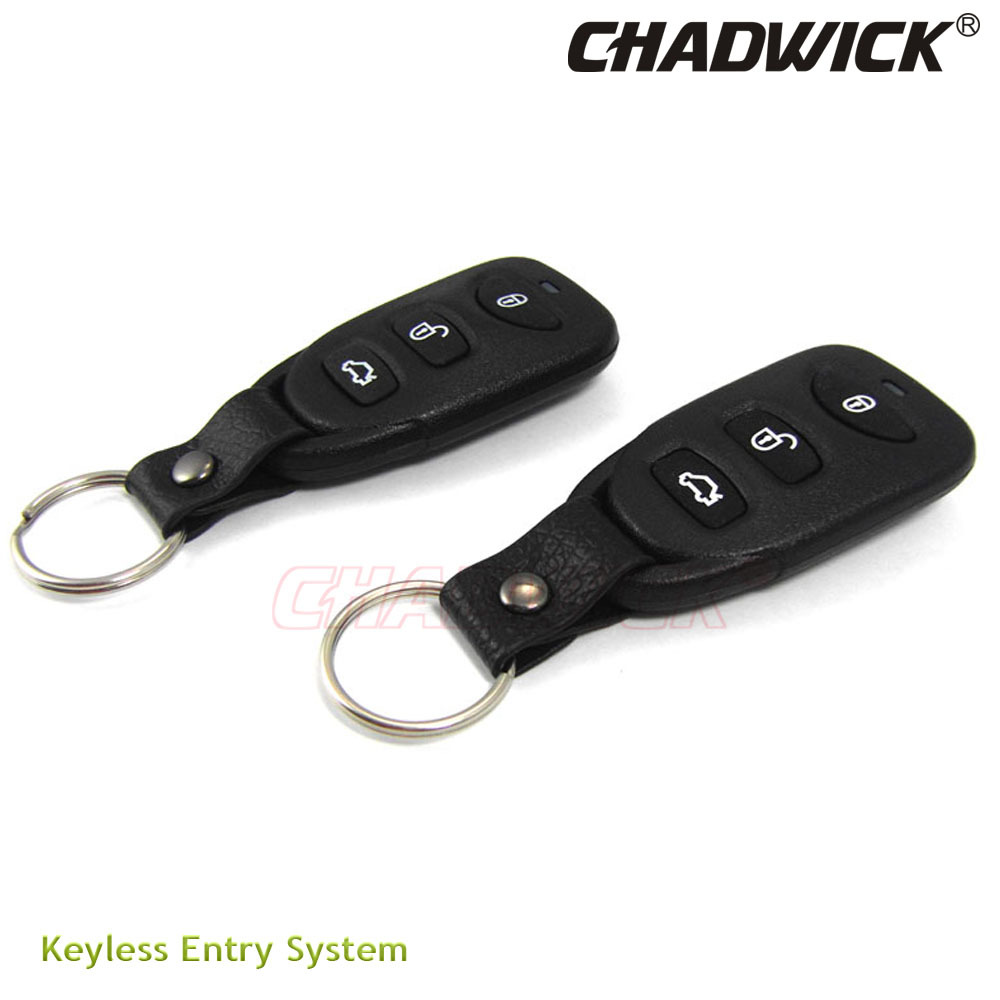

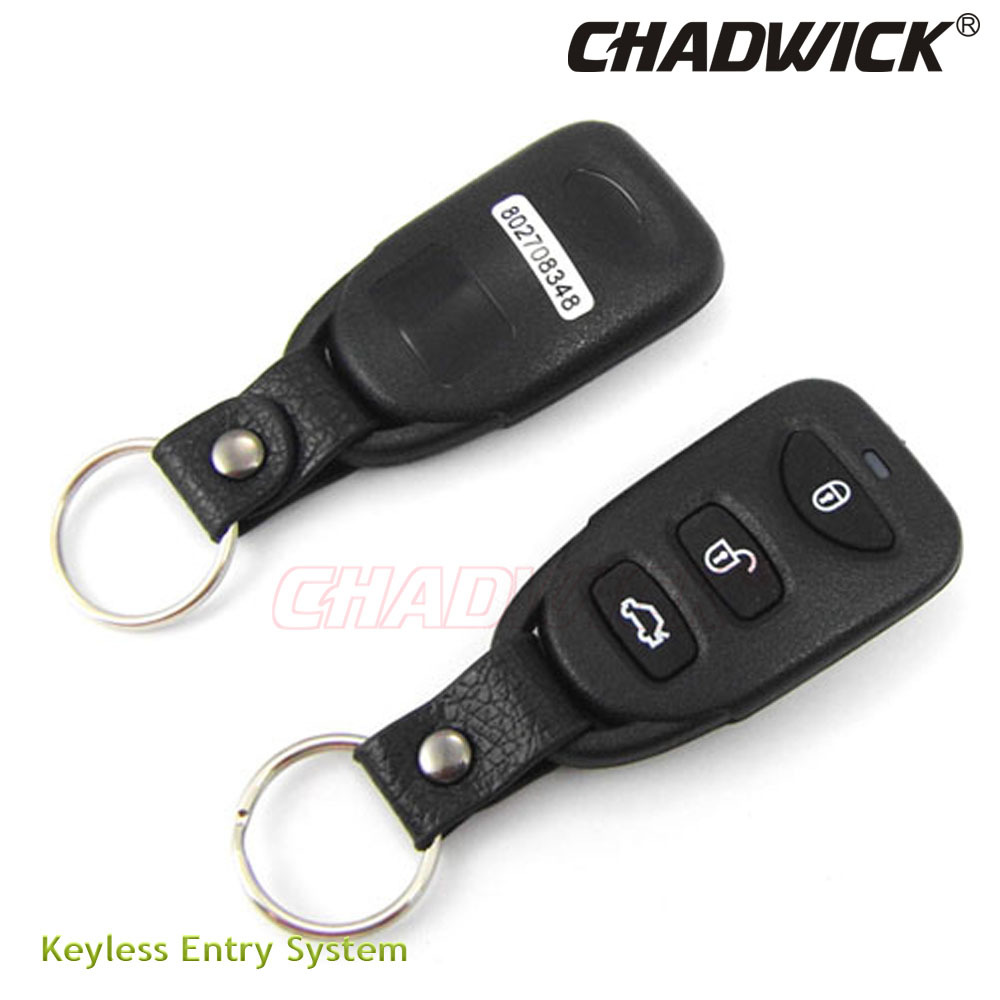

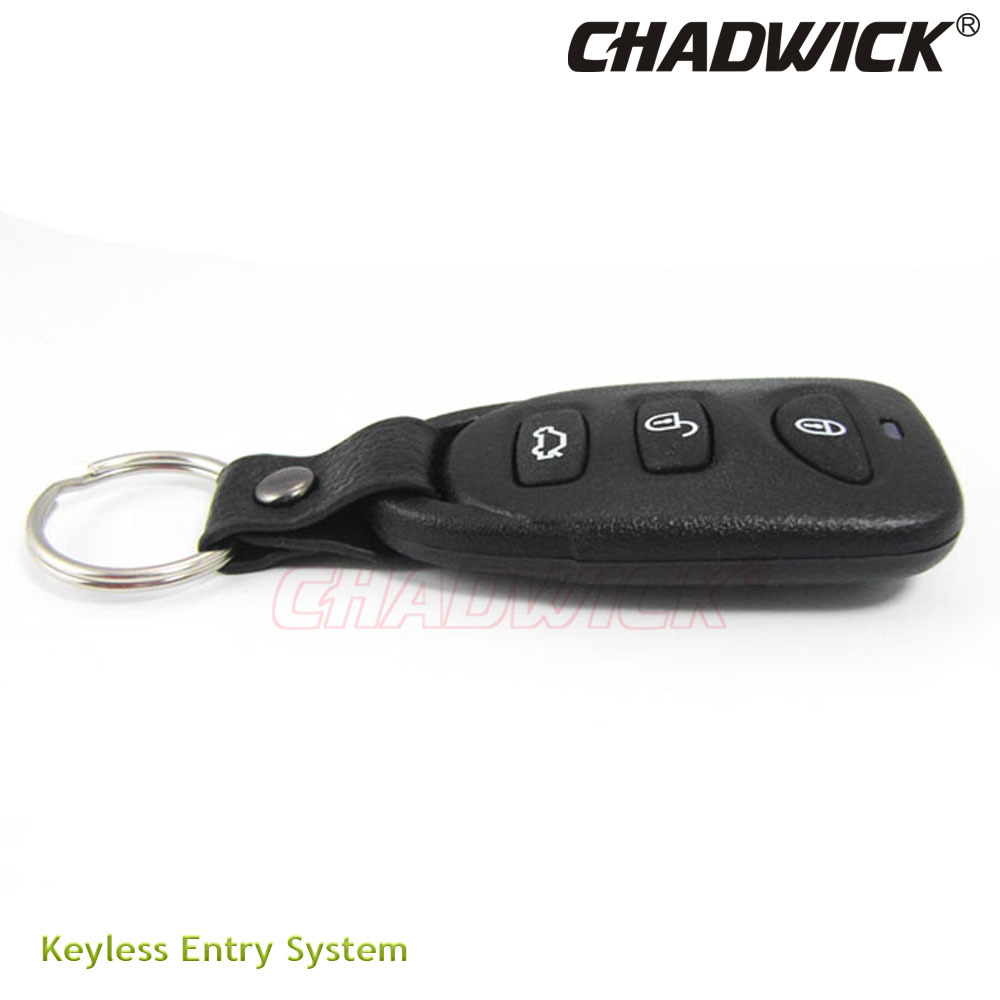

2 x Remote Controllers

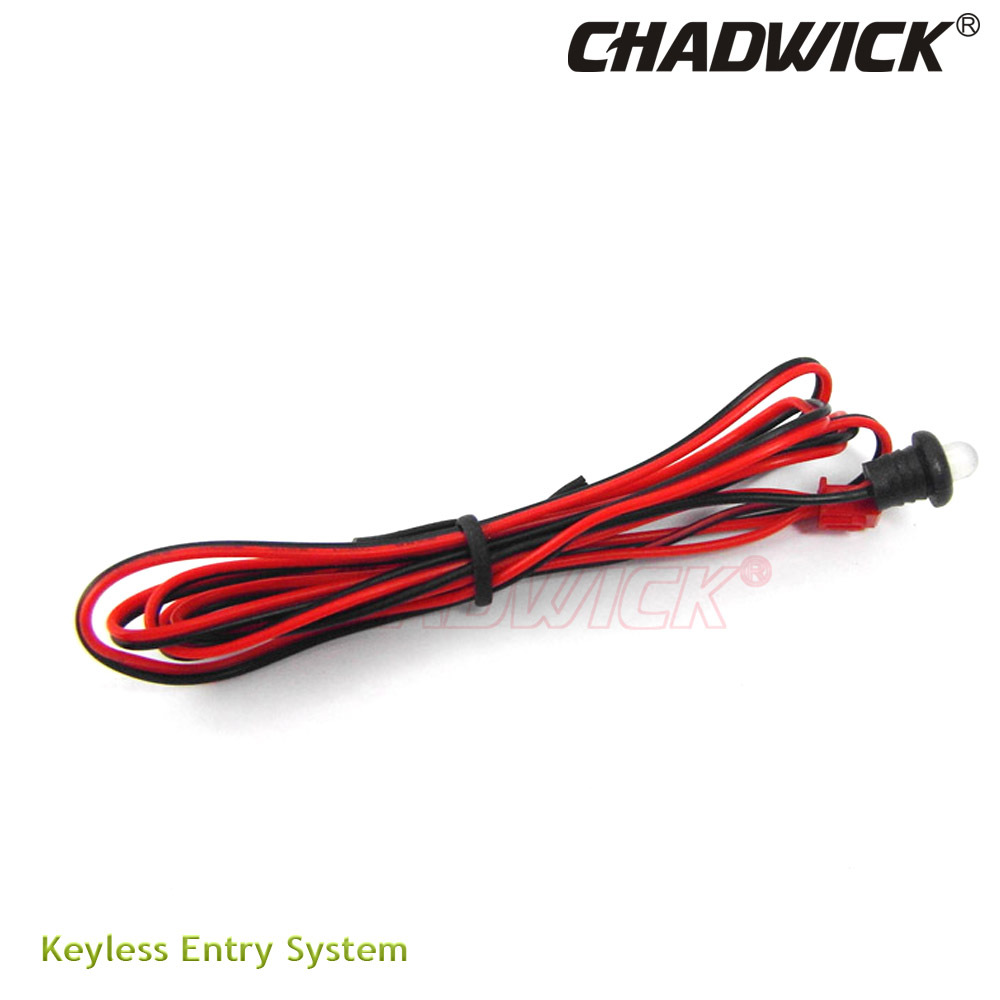

1 x LED connection wire
1 x Wire
1 x Operation instruction

SUGGESTION: The installation had better to be operated by the technician in 4S automobile stores or formal automobile repair stores, rather than yourself.

K905 functions

1)Remote Lock
   Press the button   LOCK  one the remote transmitter once to   lock while the parking lights will flash once.
2)Remote Unlock
   Press the button  UNLOCK  one the remote transmitter once to   unlock while the parking lights will flash twice.
3)Car Search
   When locked, press the button   SIREN  on the remote transmitter once to locate the vehicle white  parking lights
   will flash 60s or until we press the other button then   will stop.
4)Trunk Release
   Press the button    MUTE/   FLASH  / TRUNK   one the remote transmitter   once to release the trunk while the parking lights
   will flash three times.
5)Step on Foot-Brake to Lock / Unlock
   Turn the ACC into "ON" position, vehicle will lock automatically when you step on the foot-brake.
   Turn the ACC into "OFF" position, vehicle will unlock.
6)Negative / Positive Output Option for Trunk Release   Plug in + for +12V output;
   Plug in - for -12V output ( to ground ).
7)Electronic / Pneumatic door lock option
   Change the position of JP1 to select electronic and the   pneumatic door lock. [if it is set in short  circuit, the
   system is with electronic door lock(0.5s) / if it is set in
   open circuit, the system with pneumatic door lock(3.5s)]
8) Power window output (yellow color)
   Press"  LOCK  " button once, turning lights flash once and door    lock, now the power window signal output negative
   trigger 25s.

 汽车无钥匙进入系统

1.上锁

按Ï一次上锁，方向灯闪一次；此时LED每秒闪一次。

2.解锁

按D一次解锁，方向灯闪两次；LED熄灭。

3.寻车

在防盗状态下按一次以确定车辆的位置，在此同时，车灯闪烁60秒，LED每秒闪一次，或按其它的按键来停止车灯闪。

4.尾箱

按/-/ /D3秒使尾箱功能实现。

5.脚刹上锁/解锁

ACC转到ON的位置上，15秒后踩脚刹时，车辆会自动上锁。

ACC转到OFF的位置上，汽车熄火,车辆会自动开锁。

6.尾箱正负输出选择

插＋为＋12输出。

插－为－12输出(接地线)。

7.电动锁/汽动锁选择

防盗主机内JP1选择电锁﹑气锁功能。(短路为电锁0.5秒/开路为气锁3.5秒)

8.升窗功能

按遥控器Ï键,车灯闪一下,中控门锁自动上锁,此时升窗信号输出25秒。

9.学习码方式(在解除防盗状态下)

长按主机学码按钮开关1秒，方向灯亮起，同时按遥控器任意键，每学习一个码，方向灯闪一下

默认外贸的提供英文说明书。需要中文说明书的请备注。
