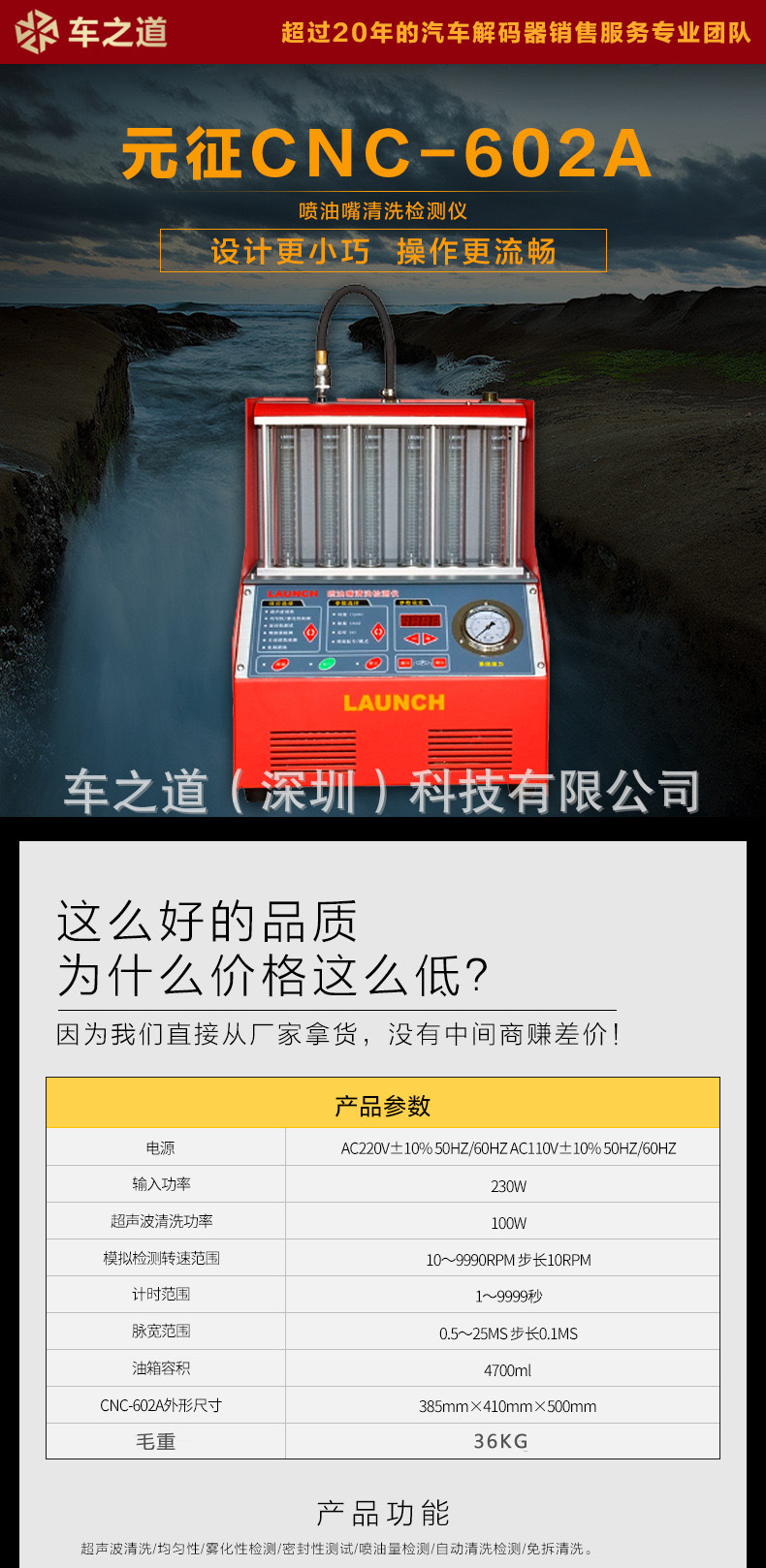

Ультразвуковая мойка для топливных форсунок CNC-602A, инструмент для чистки топливных форсунок, зарубежная английская версия

Описание

 Launch元征CNC-602A喷油嘴清洗机英文版

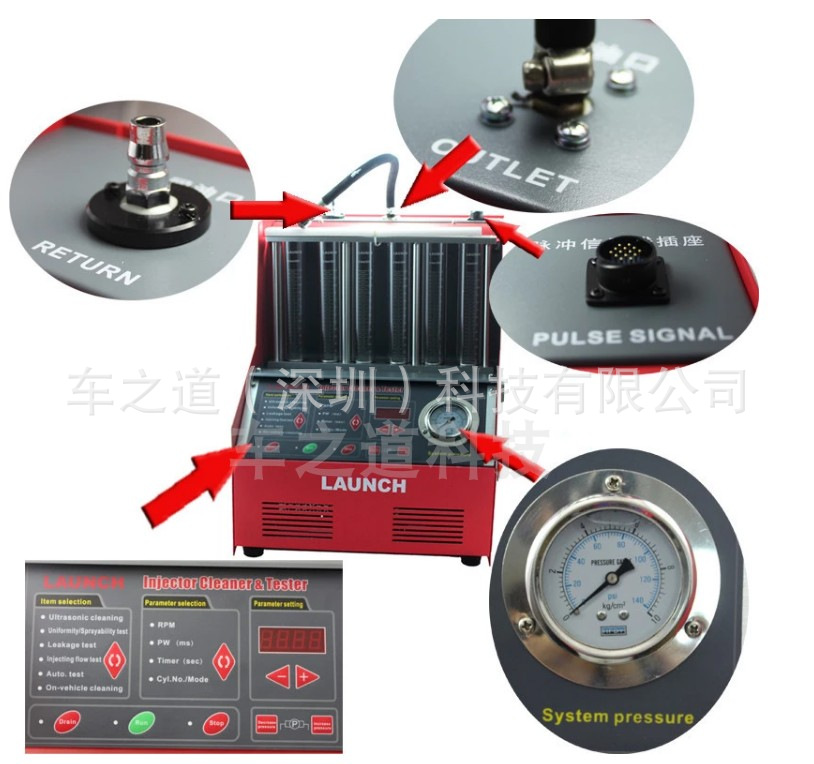

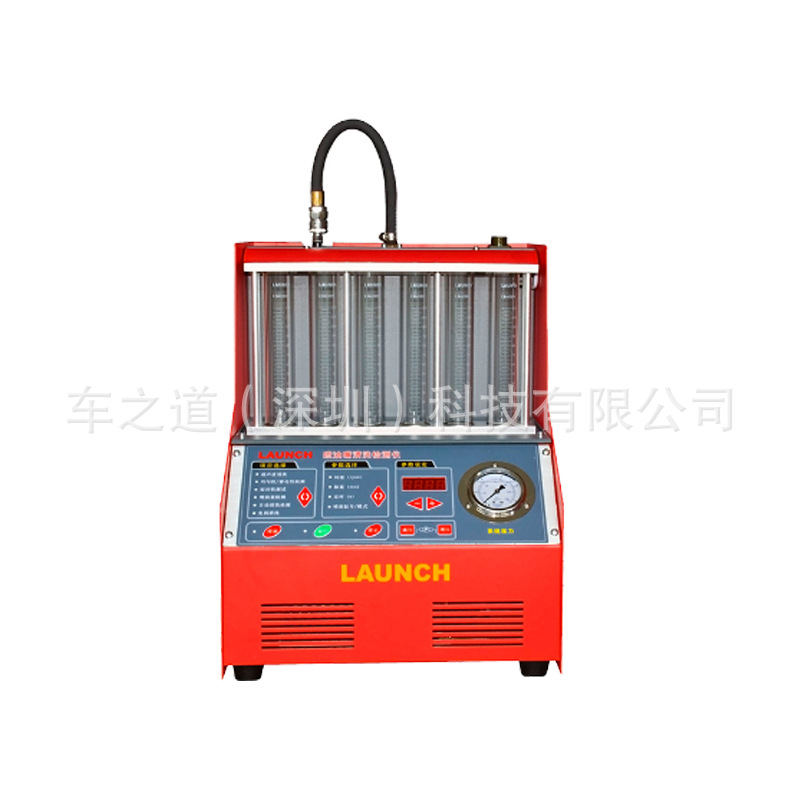

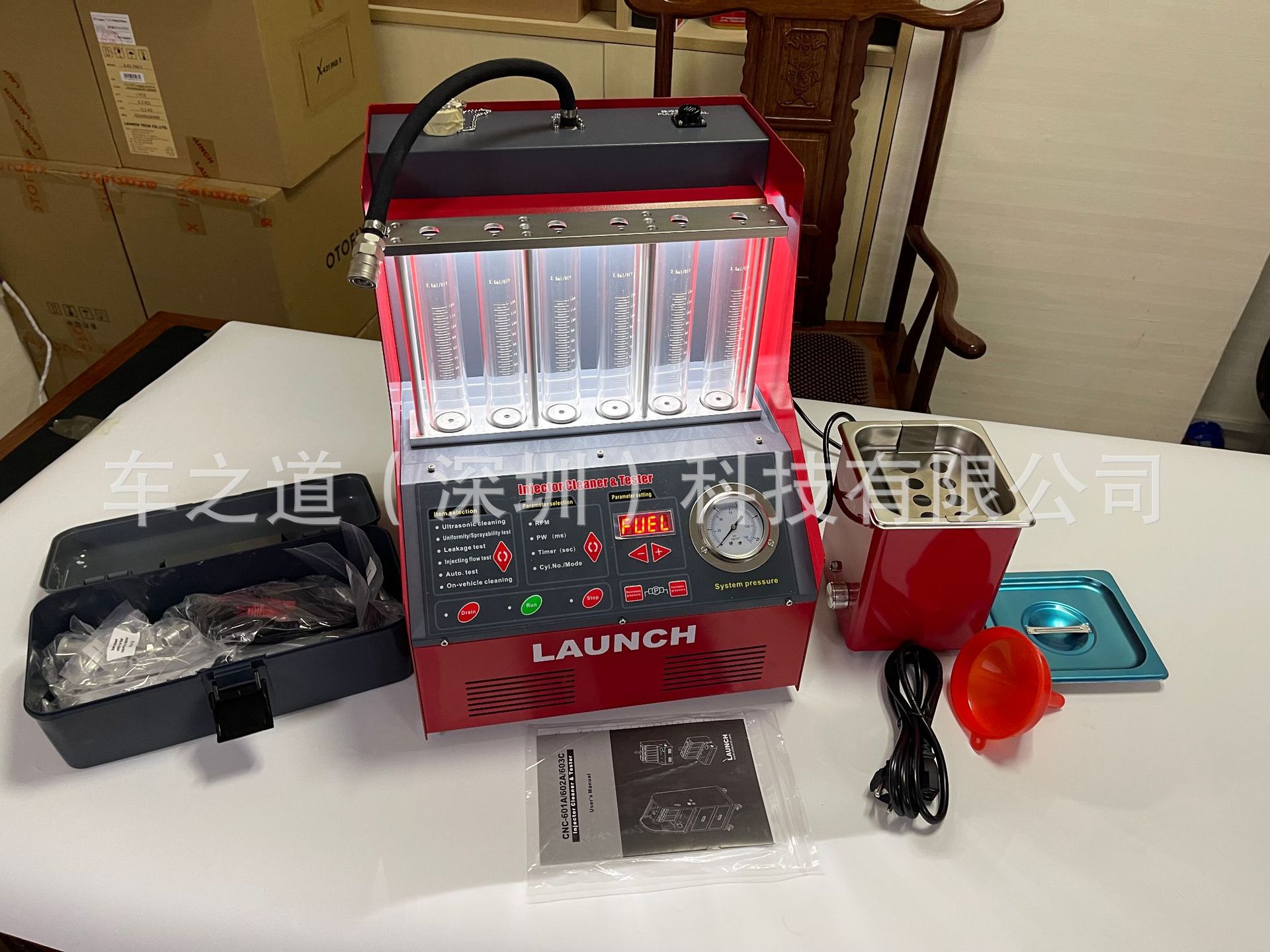

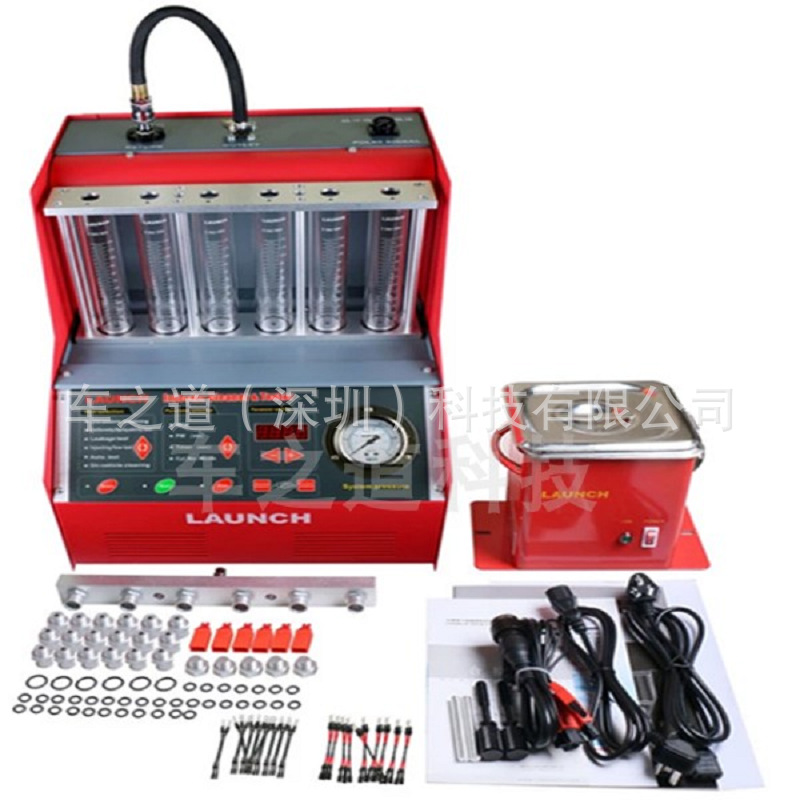

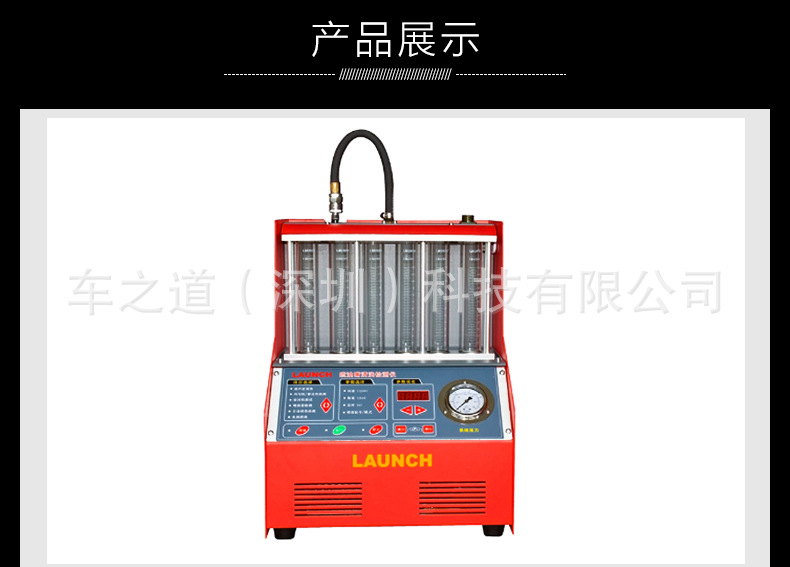

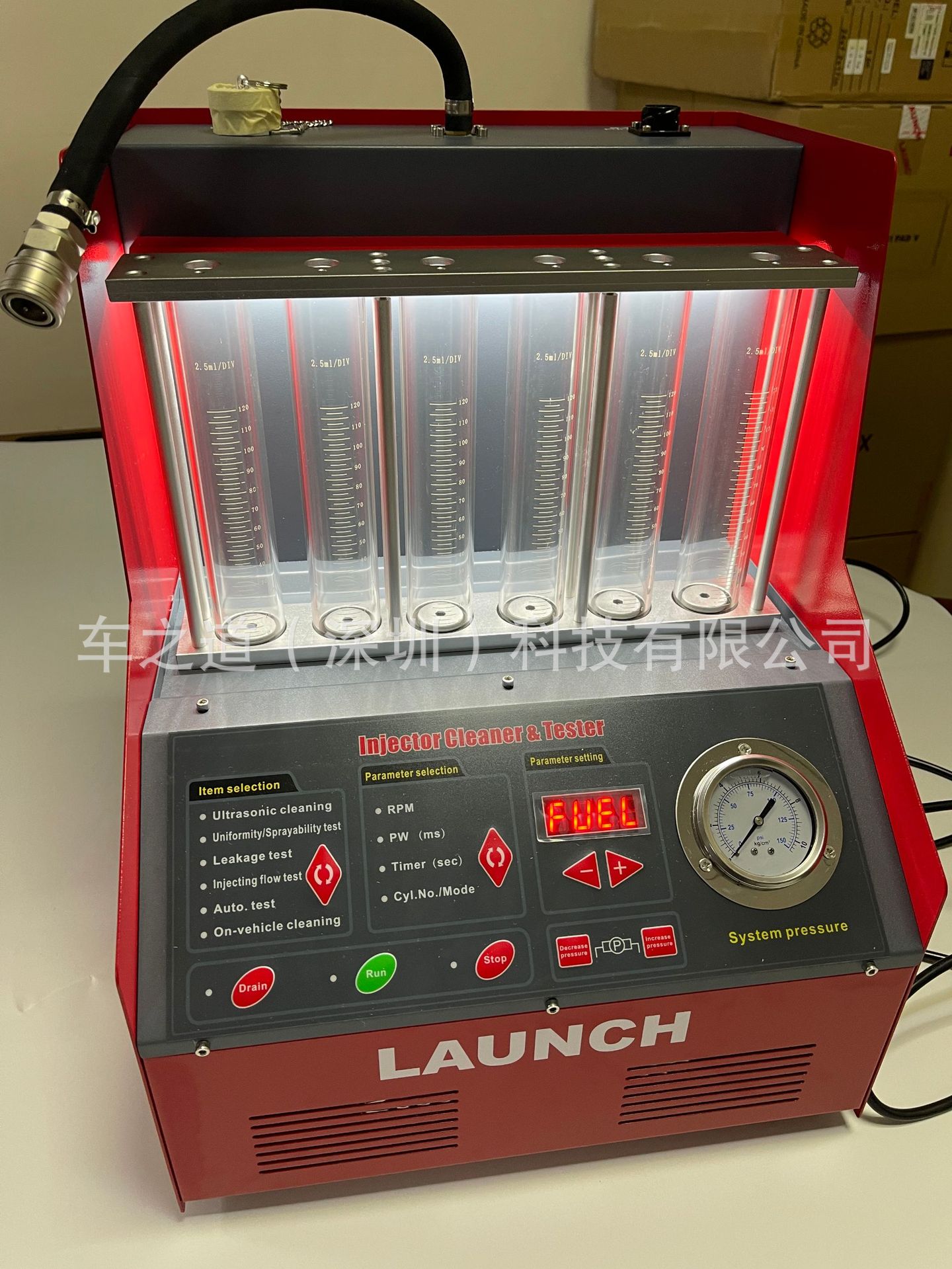

CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

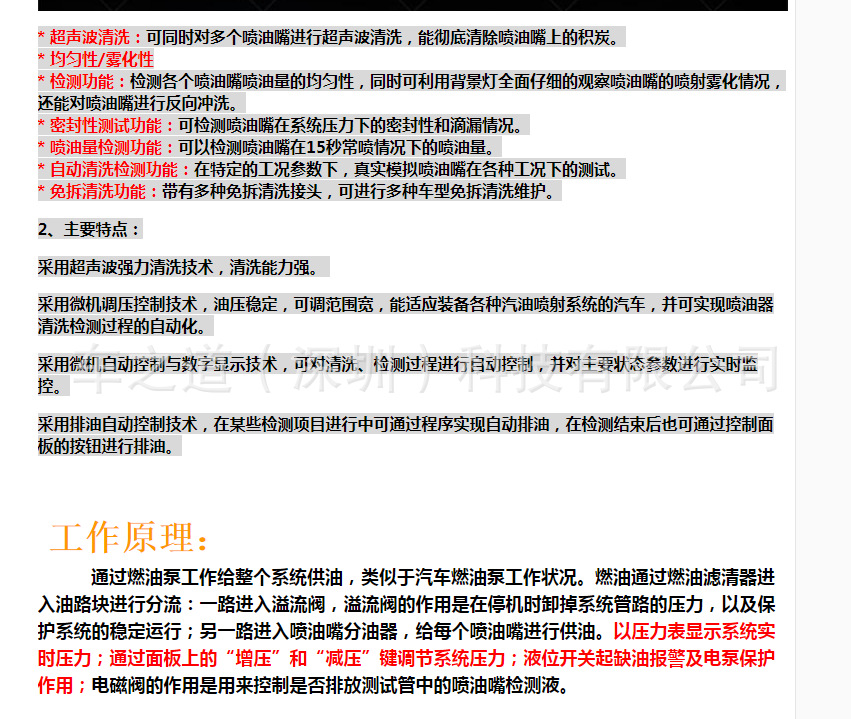

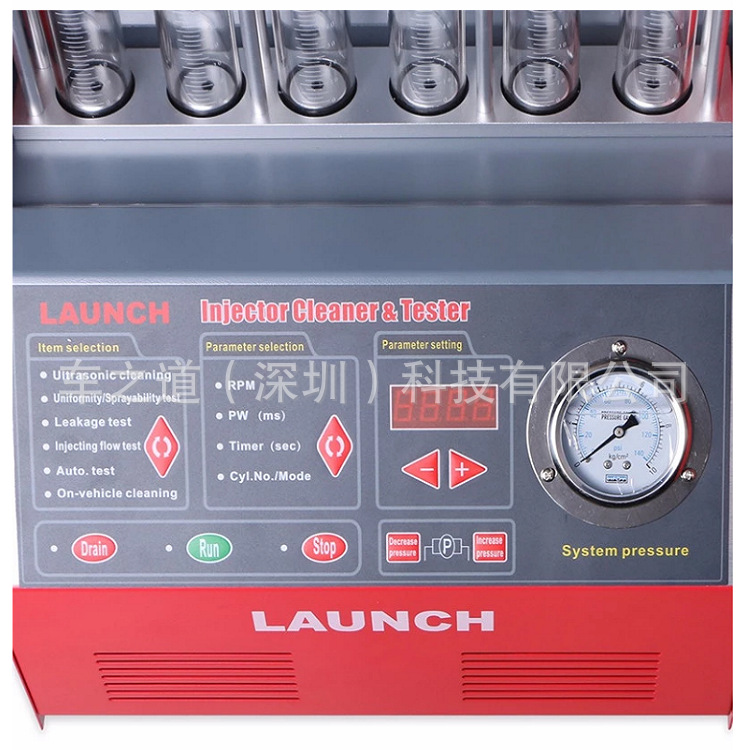

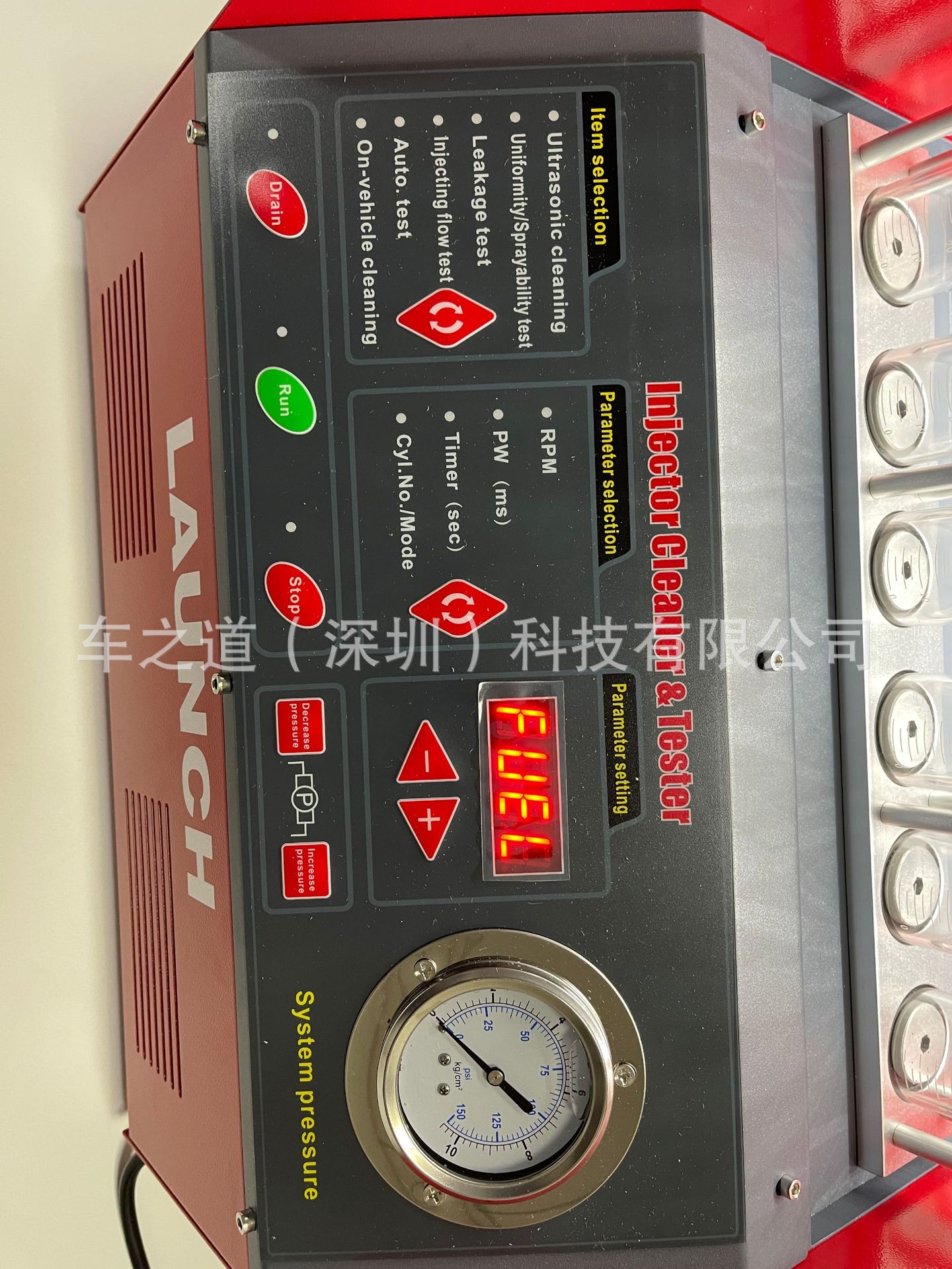

CNC-602A Features

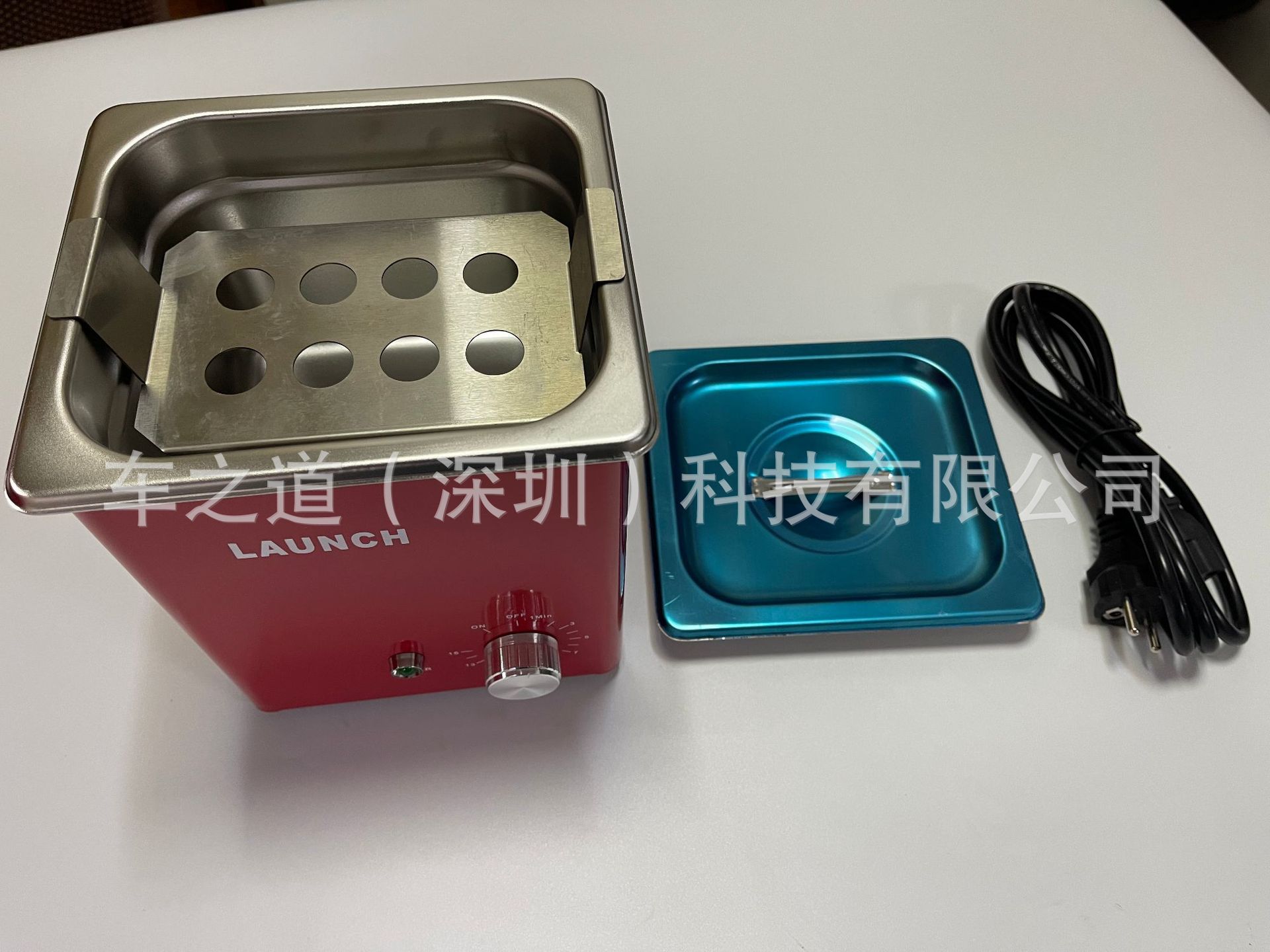

1. Ultrasonic cleaning

To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2. Uniformity/Sprayability test

To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3. Leakage test

To test the sealing and dribbling conditions of injectors under system pressure.
4. Injecting flow test

To check the injecting amount of the injector in 15 seconds of constant injection.
5. Auto test

To test injectors by simulating different working conditions.
6. On-vehicle cleaning

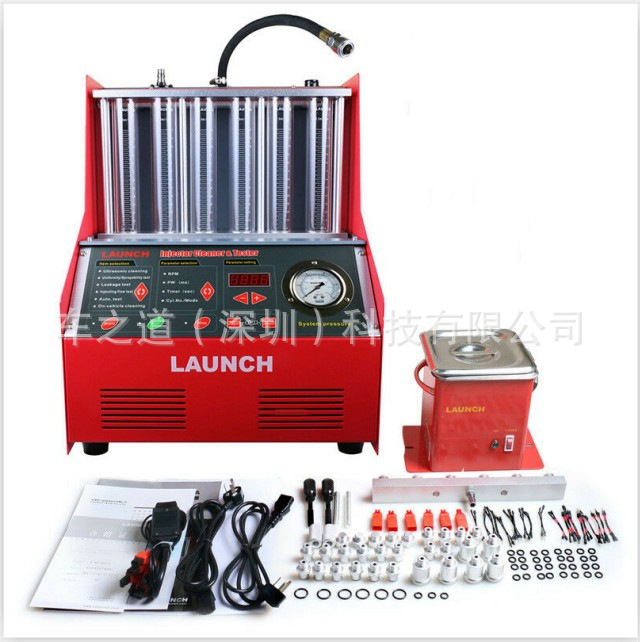

The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

CNC-601A/602A Parameters

* Power supply:AC220V±10%/50Hz~60Hz AC110V±10%/ 50Hz~60 Hz

* Input power: 250W
* Ultrasonic cleaning power: 100W
* Simulated RPM range: 10～9990rpm; step: 10rpm
* Count range: 1～9999 times
* Pulse width: 0.5～25ms; step 0.1 ms
* Fuel tank capacity: 4700ml

* CNC-602A Size: 385×410×500mm

* CNC-602A Weight: About 35kg
