Генератор азота Decker LC/MS AB, измеритель качества жидкости, генератор азота

Описание

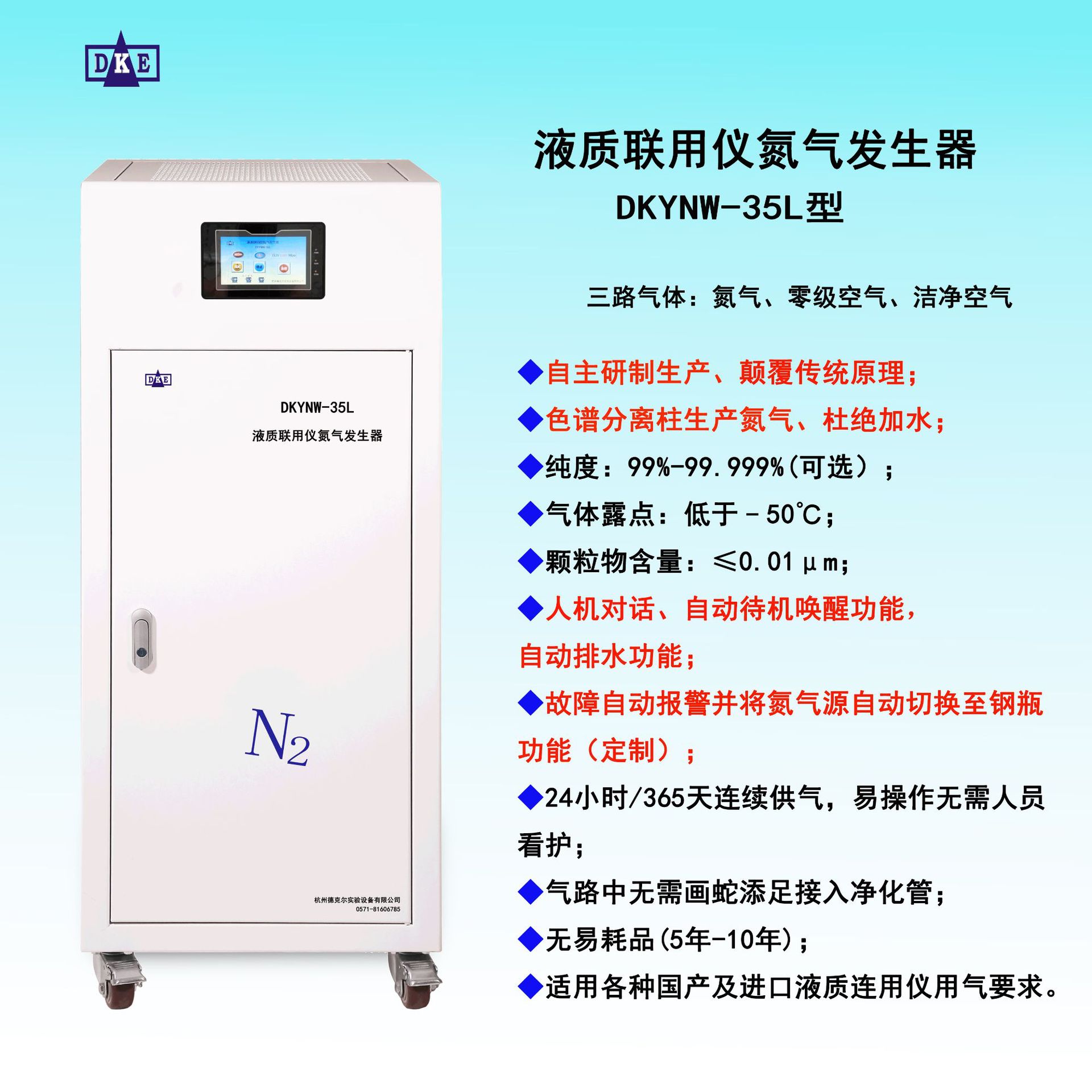

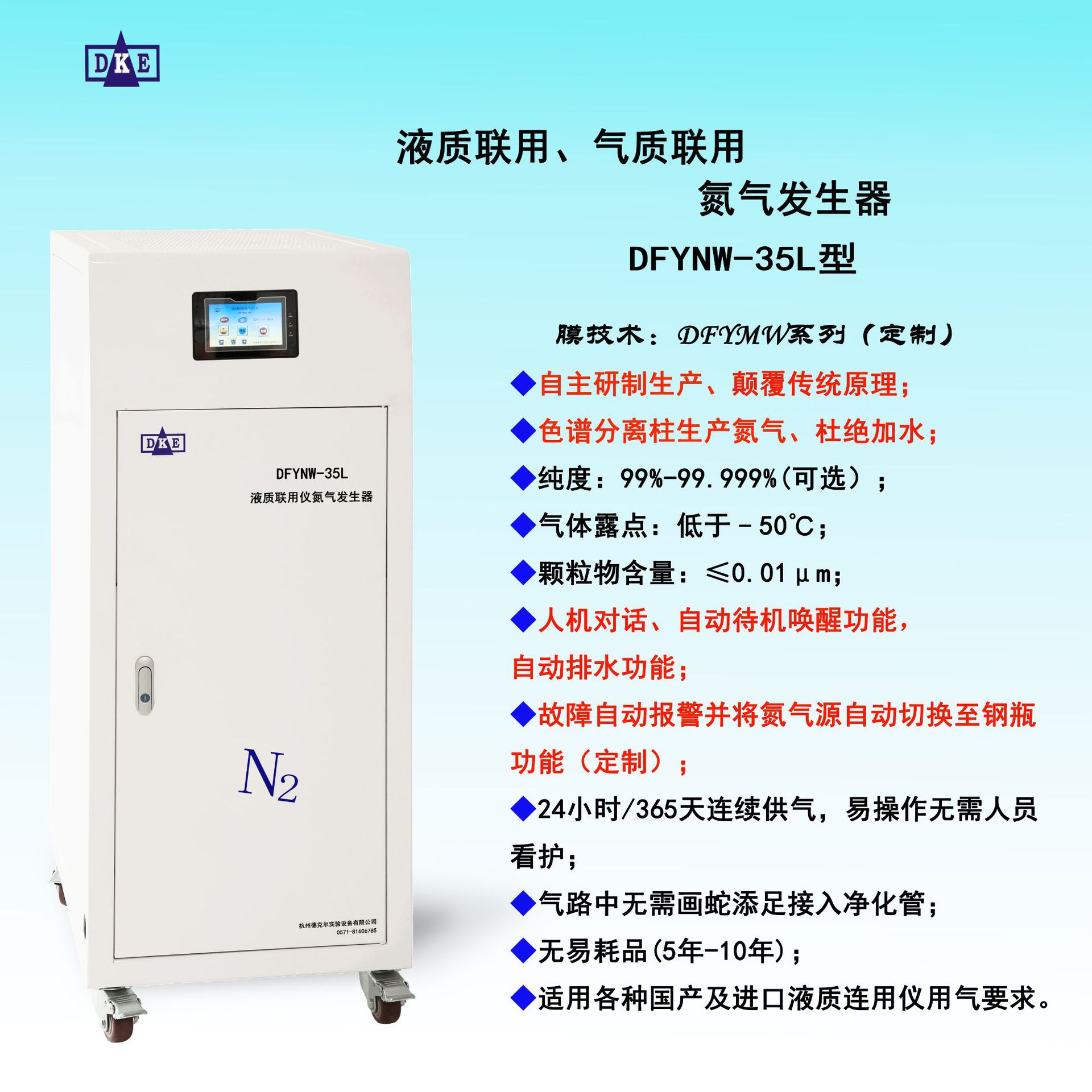

AB LC/MS nitrogen generator

Code description: D-nitrogen K-ZeroAir/Air Y-liquid mass spectrometer N-built-in air compressor W-oil-free air compressor

1.【Performance】

   The gas flow rate generated by the nitrogen generator is stable, and the durable synthetic carbon molecular sieve is built in, which makes the nitrogen purification more thorough and the nitrogen produced is of higher purity. The high-purity generator is easy to operate. As long as the switch is pressed, the nitrogen, air and clean air generators of the LC/MS instrument can continuously produce high-purity gas. The operation is stable and reliable, and it can be unattended 24 hours a day. Trouble-free operation with any supervision and low maintenance. It replaces the use of traditional inconvenient nitrogen tanks. From the point of view of safety performance, nitrogen is generated in a low-pressure state, without the need for high-pressure bottles or liquid nitrogen tanks

1 Instrument features:

1. Built-in oil-free compressor, low noise, especially suitable for use in quiet environments such as scientific research rooms and hospitals;

2. High-quality stainless steel gas storage tank and gas circuit (renewal), (to prevent the discharge of yellow rust from polluting the laboratory);

3. Oil-water separator, two-way selection of automatic and manual drainage, adjustable working pressure, barometer display;

4. Automatic pressure relief device, start without pressure, and the motor is more durable;

5. Simple operation, one-button operation can automatically generate nitrogen;

6. After starting up, it can quickly provide high-purity nitrogen;

7. The inlet air is automatically drained, which is suitable for 24 hours continuous operation;

8. Under normal conditions of use, the generator has requirements for unattended operation and any operation and maintenance;

9. The maintenance operation is simple, and the general technique can be completed under the condition of no failure;

10. There is an automatic standby wake-up function, when the equipment using nitrogen does not need nitrogen, the built-in air pump will automatically stop, and will automatically turn on when needed.

11. No need to replace parts for a long time.

2. 【Technical parameters of nitrogen generator for AB liquid mass spectrometer】
1. Nitrogen purity, nitrogen output flow: (see parameter table).
2. Outlet pressure: 0-100psi (about 0.69Mpa) or optional (0.7Mpa, 1.0Mpa, 1.2Mpa or customized 0-25Mpa)
3. Energy saving: Automatic standby for 24 hours continuously under the condition of power on, and it can be used immediately.

4. Safety: Replaces dangerous high-pressure gas cylinders.
5. Operation: convenient, less failure, high reliability, long service life, can be used continuously.
6. Nitrogen dew point: -60C°

7 Operation: Simple operation, one-button operation can happen automatically.

8 Application: suitable for 24-hour continuous operation, with automatic drainage function.

9 Maintenance frequency: Under normal use, the generator has the maintenance requirements of unattended and no need to do any operation.

10 Maintenance operation: The maintenance operation is simple and can be completed by ordinary technicians without failure.

3.【AB liquid mass spectrometer nitrogen generator model parameters】

4. [Characteristics of Gas Generators]

Compared with imported products, our company has added a variety of user-friendly functions, which are more intelligent, more stable, more convenient and intelligent in the process of use. It has added the function of automatic alarm when equipment failure occurs, and the function of automatically switching the gas source to the cylinder. It can be unattended for 24 hours without incident. (optional)

1. Safety: replace high-pressure steel cylinder, low-pressure gas production, overpressure protection, no danger, to ensure personal safety;

2. Effort-saving: small size, light weight, no trouble of transporting steel cylinders, saving the labor of moving the cylinders;

3. Environment: small vibration, low noise, can increase the oxygen content in the laboratory, refresh health care, and improve work efficiency;

4. Reliability: Equipped with overpressure, overcurrent secondary protection and safety release valve device, safe and reliable;

5. Economy: less power consumption, less consumables, low cost, and economical benefits;

6. Flexible: optional built-in air compressor or external air compressor. (Invoice plus tax point, please consult customer service for details)
