Трансграничный горячий продавая прибор VAG506M AUDI/VW Scannr Фольксвагена AUDI диагностический с английским руководством

跨境重量：0.33KG

尺寸: 26X17X4CM

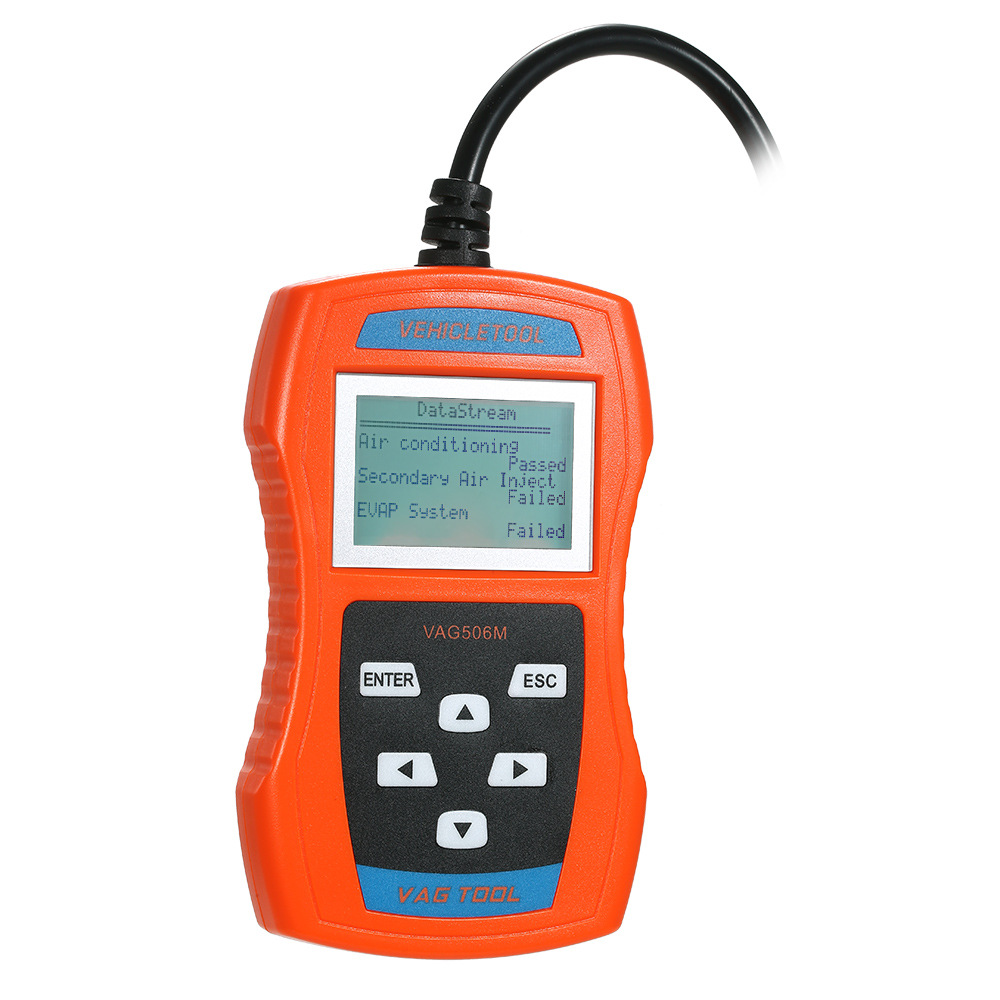

VAG506M VAG Professional  Scan Tool  (Version V1.1)

When we add new function or vehicle manufacturers release new models:Free online software upgrades for life !!!!

Features：

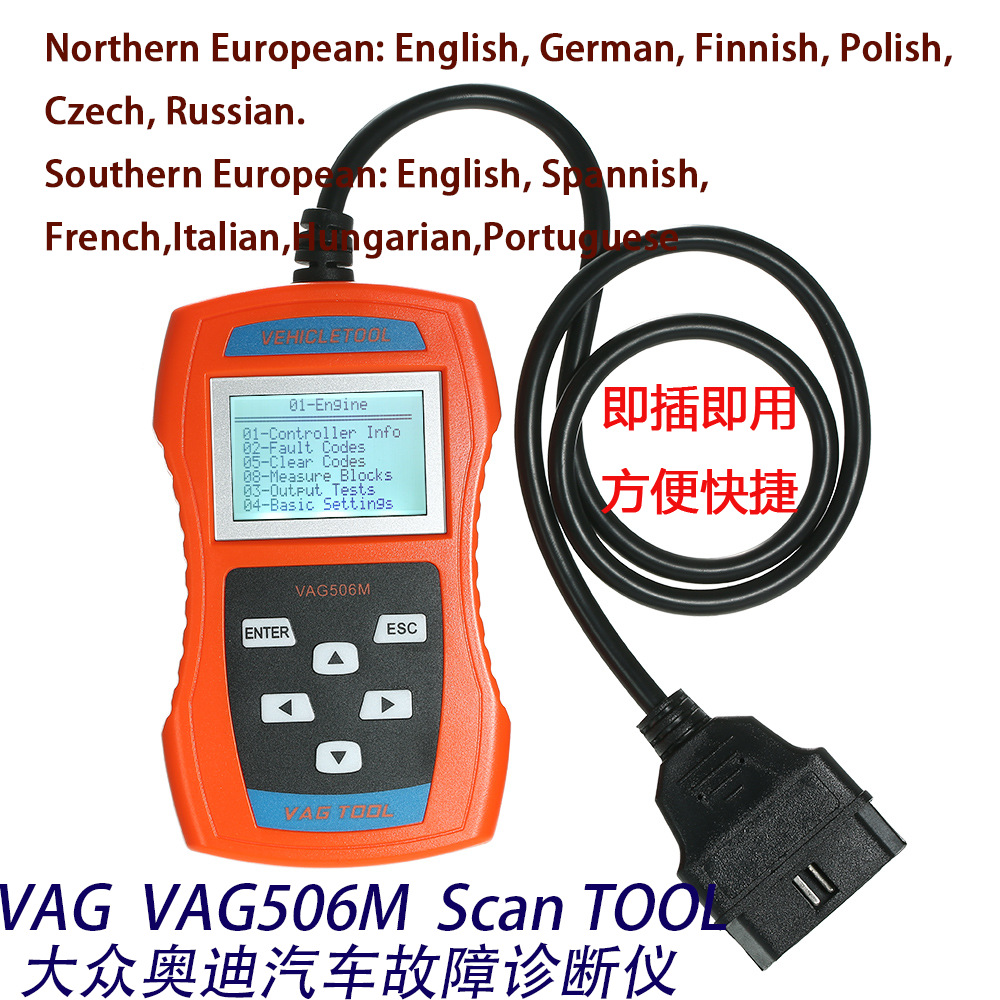

- Supported Languages: English, Czech, Finnish, Russian, Romanian，Turkey, Polish, Spanish, Czech, German, French, Portuguese, Hungarian and more.

- Displays Code Definitions on screen. No looking up the code in a book!

- Reading & Erasing of trouble codes (stops the CHECK ENGINE light).

-Coding. When you brush hidden function, it is can help you .

- Wider vehicle coverage with K line, Double K line, TP-CAN and UDS protocol support.

- Displays over 20000 possible error codes.

- Check out those used vehicles before you buy. Not all Trouble Codes illuminate the Check Engine light.

Functions:

 1 .For K-Line TP-CAN protocol car (made before year 2010 )

BOSCH 1281

01-Control Unit Info

02-Read Fault Codes

05-Clear Fault Codes

08-Data block Measurement

03-Test actuator

04-Basic Settings

10-Adaptation

07-Code Module

11-Login

09-Single Reading

1A-Readiness

TP-CANBUS

01-Control Unit Info

02-Read Fault Codes

05-Clear Fault Codes

08-Data block Measurement

03-Test actuator

04-Basic Settings

10-Adaptation

07-Code Module

11-Code Module II

16-Access permission

15-Readiness

1A-Advance ID

KWP2000

01-Control Unit Info

02-Read Fault Codes

05-Clear Fault Codes

08-Data block Measurement

03-Test actuator

04-Basic Settings

10-Adaptation

07-Code Module

16-Access permission<

15-Readiness

1A-Advance ID

2. For UDS protocol car (made after year 2010 )

UDS_BASE

1-Trouble Codes

2-Erase Codes

3-Controller Info

4-Coding

VAG506M More additional complimentary:

 Note: This function is additional complimentary, only support some car，can not support all cars.

-Throttle adjustment

-Oil Reset

-Odometer

Supported System and ECU:

Engine

Auto Trans

ABS Brakes

Auto HVAC

Cent. Elect.

Airbags

Steering wheel

Instruments

And more system

Compatible Vehicles:

K line: 1988----2004

CAN:  2004-----2008

UDS: 2009----Now

VAG506M work with pretty much all VAG vehicles from 1994 to now which have CAN, HEX or Dual K lines . Our tools work with 99% of all VAG vehicles from 1994 to now.

Specifications:

Display: Back-lit, 128 × 64 pixel display with contrast adjustment

Operating Temperature: 0 to 60°C (32 to 140 F°)

Storage Temperature: -20 to 70°C (-4 to 158 F°)

External Power: 8.0 to 18.0 V power provided via vehicle battery

Dimensions:

L: 125mm (4.92'') W:75 mm (2,95'') H:23 mm(0.91'')

Weight NW: 0.15kg              GW:0.31

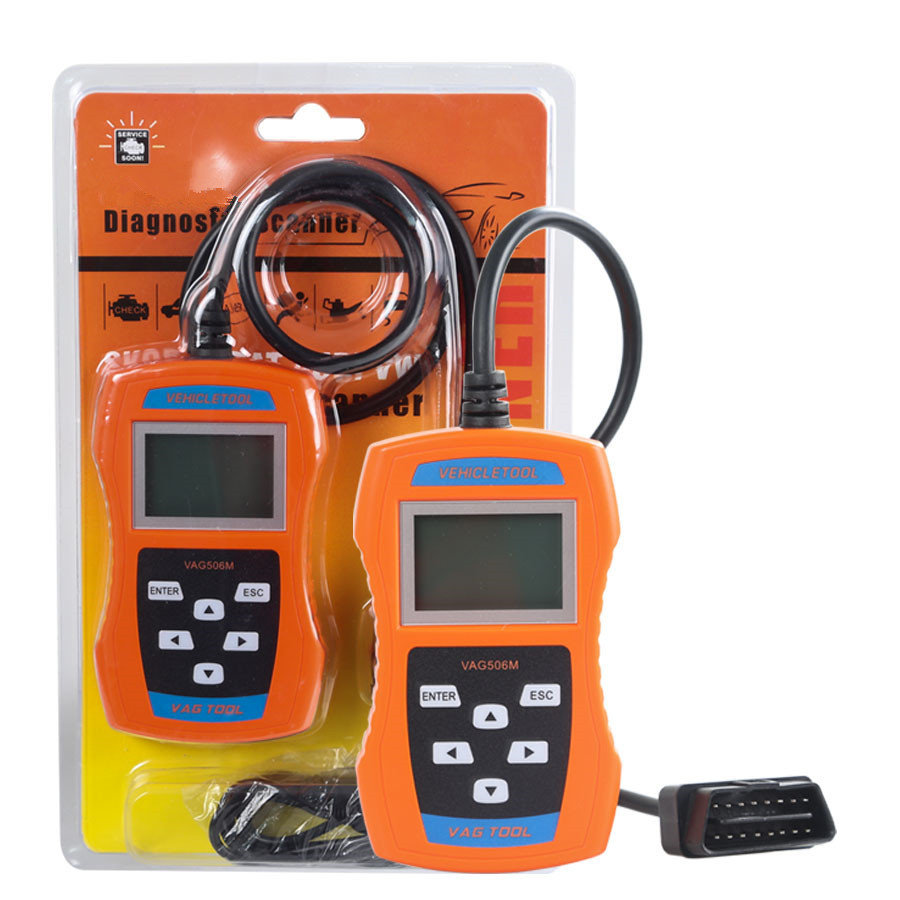

Packing List：

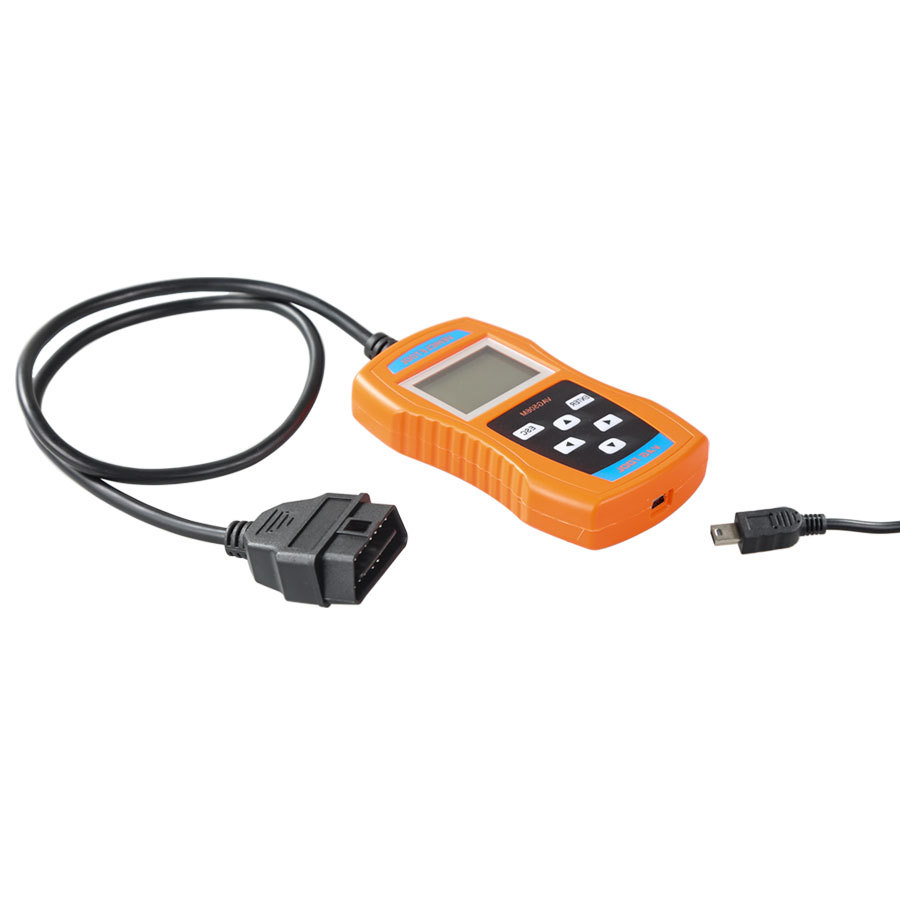

- 1 x VAG506M VAG Scanner For Audi VW Skoda Can-Bus Code Reader Main Unit

- 1 x Instructions

- 1 x USB cable
