4, 5 pin car relays quick tester 4 ноги 5 ног автомобильное реле быстрый тестер

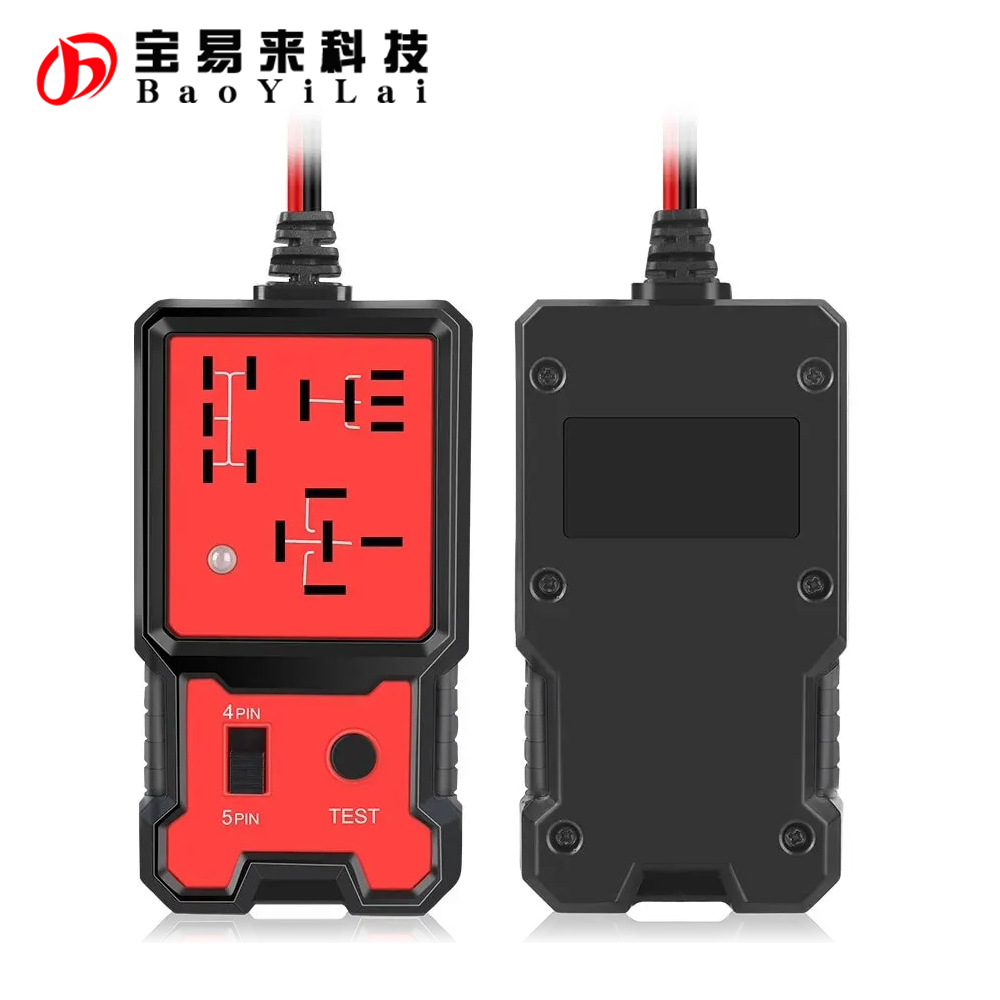

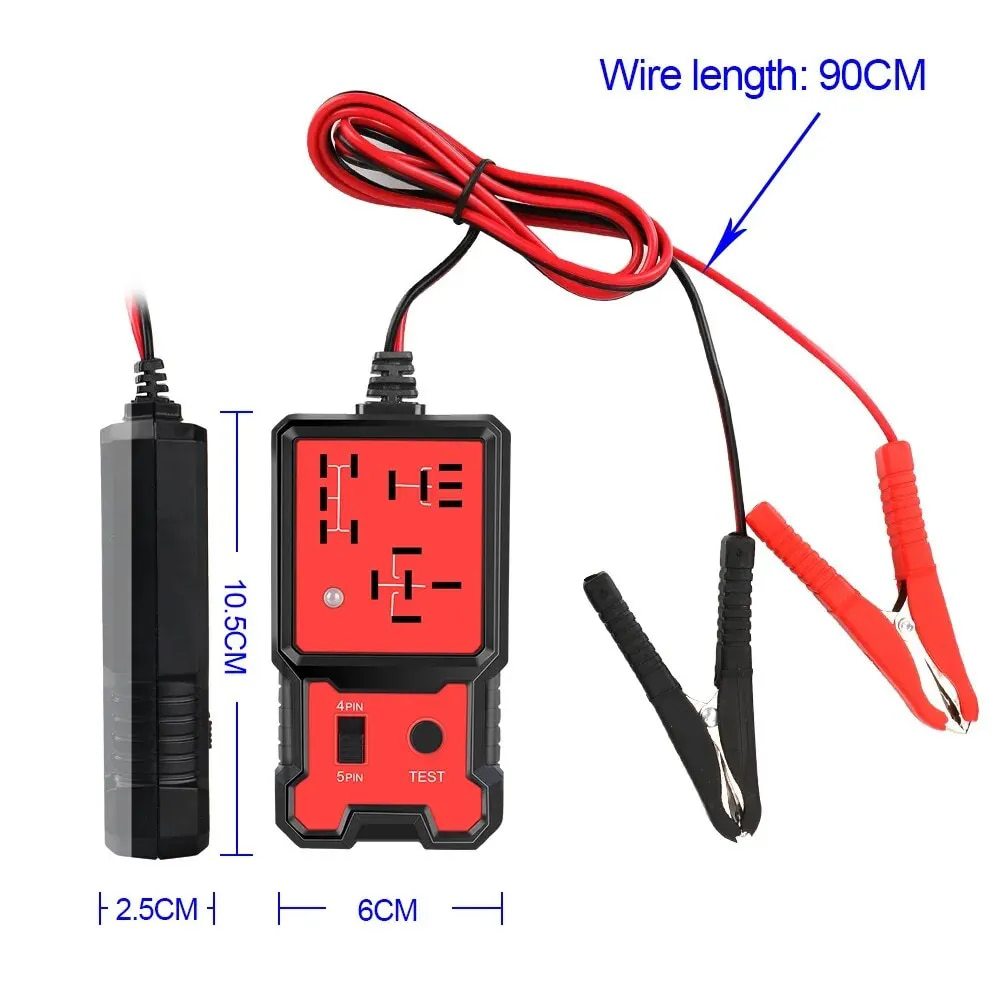

29*17*4cm 0.23kg

介绍:

CNBJ-707能够快速检测你的继电器是否正常，使用简便，适合于通用的市面上的汽车

继电器。测试时，需要连接到汽车11V-15V的电瓶上。测试仪会自动检测脚位，及动作释

放的时间，及每个测试阶段继电器的一致性。如果测试仪亮绿LED灯，说明继电器正常;

如果亮红LED灯，说明继电器不正常。

Introduction:

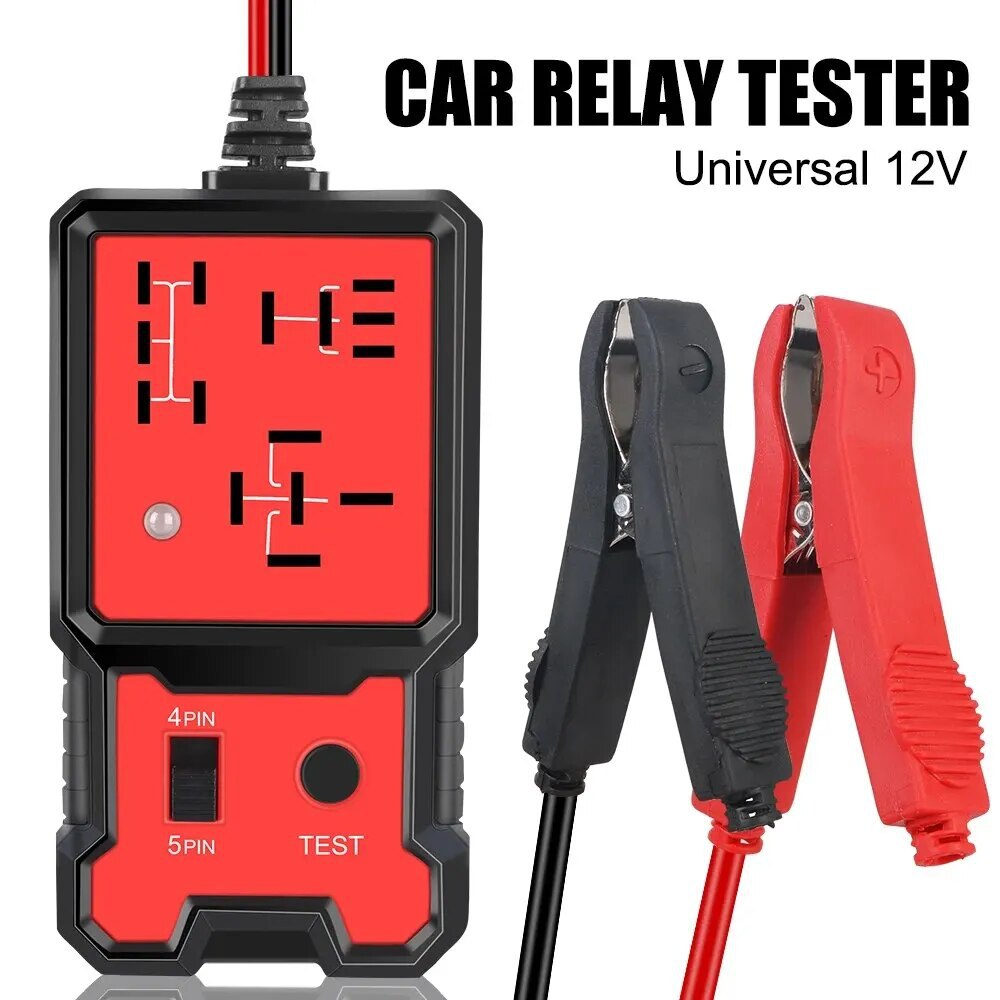

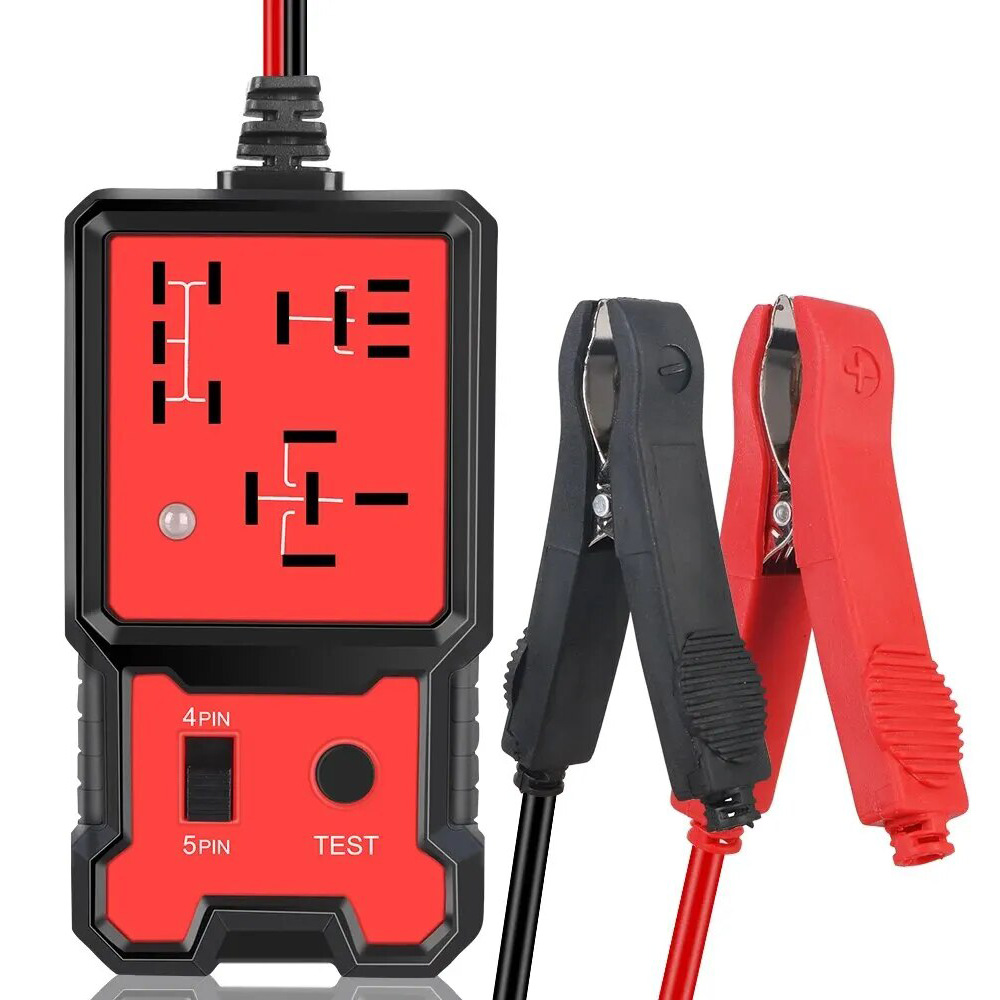

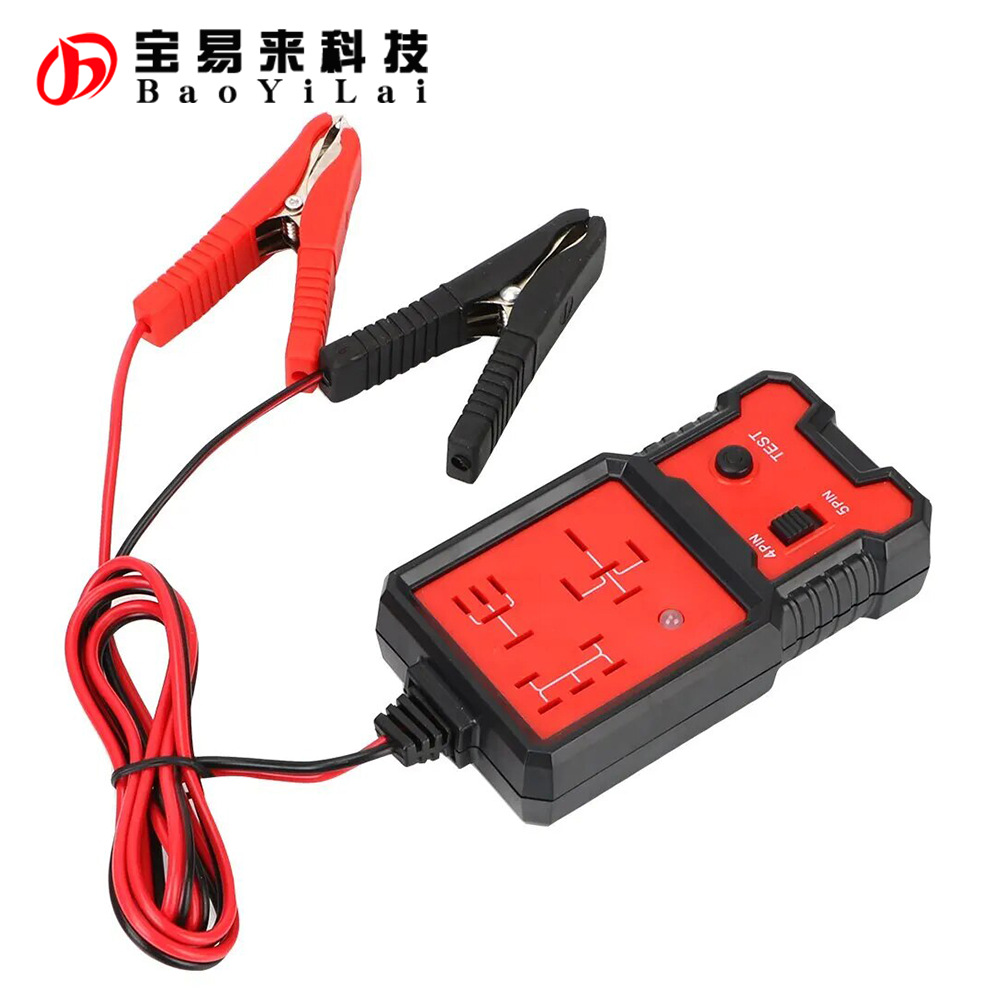

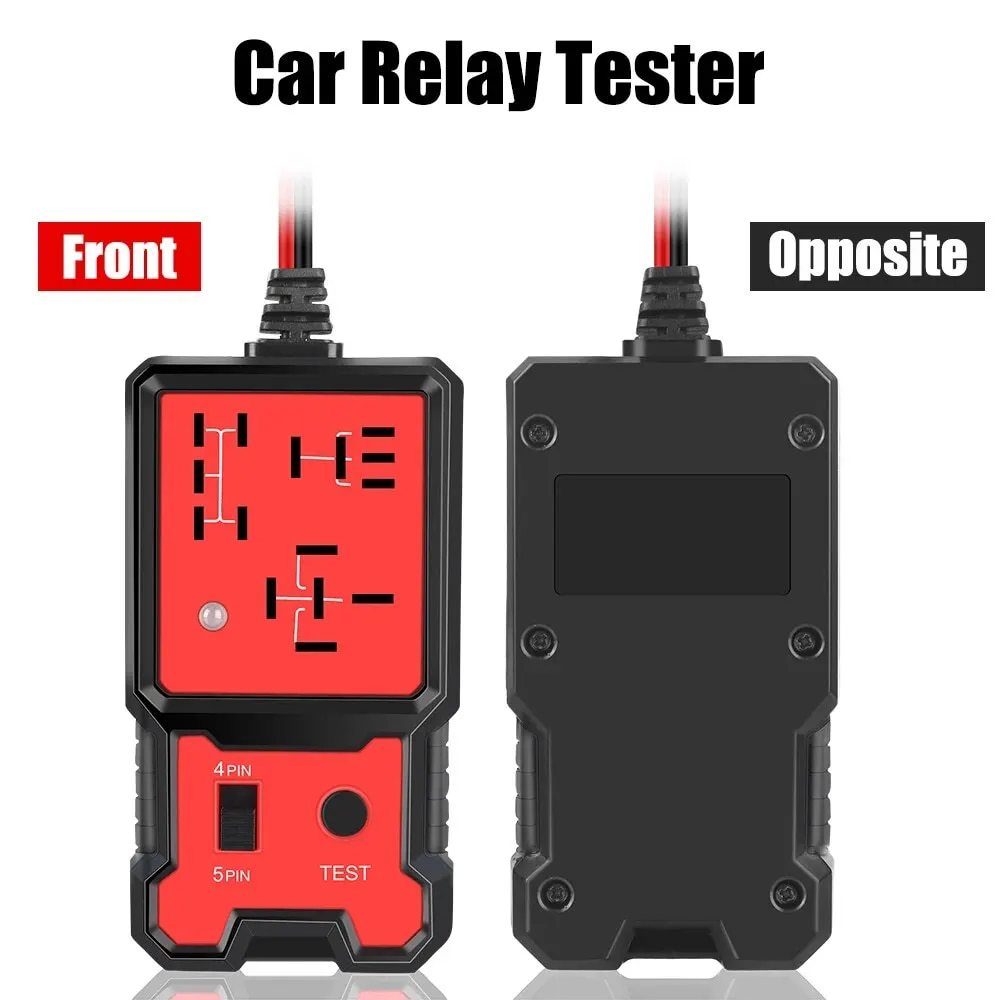

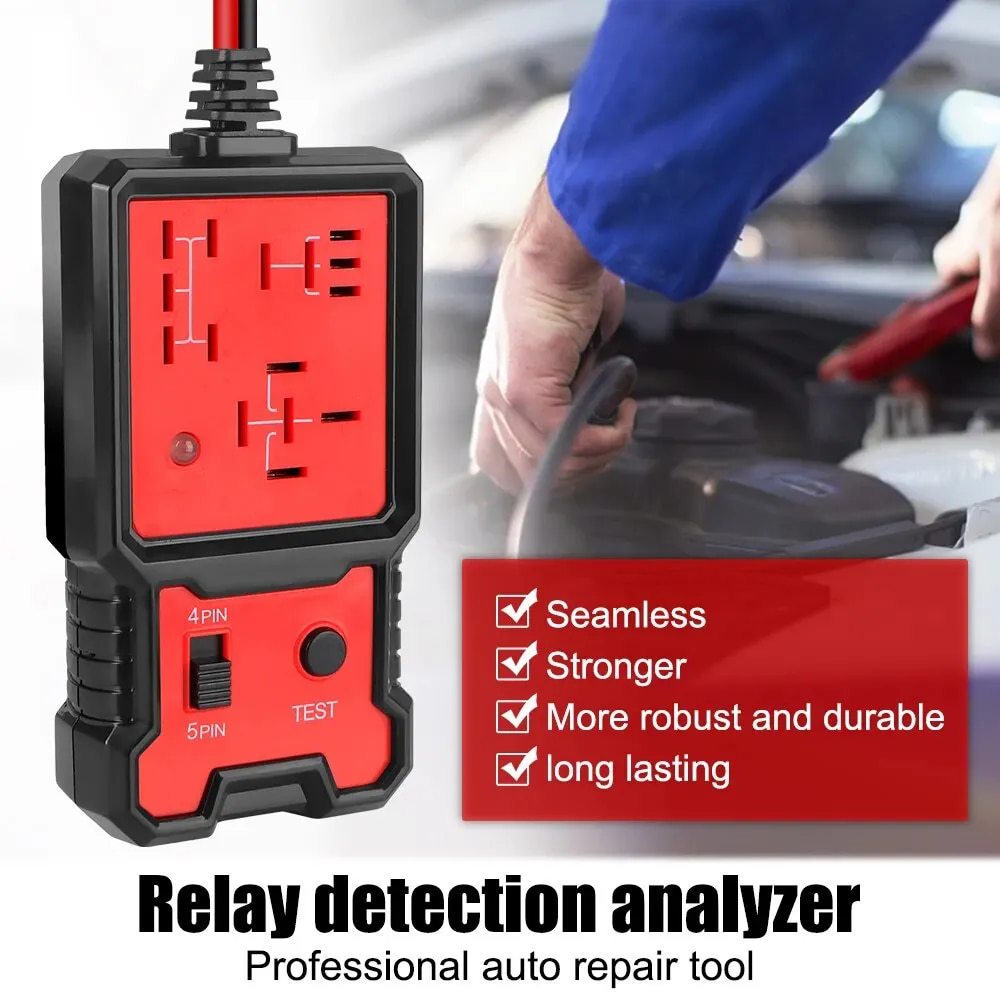

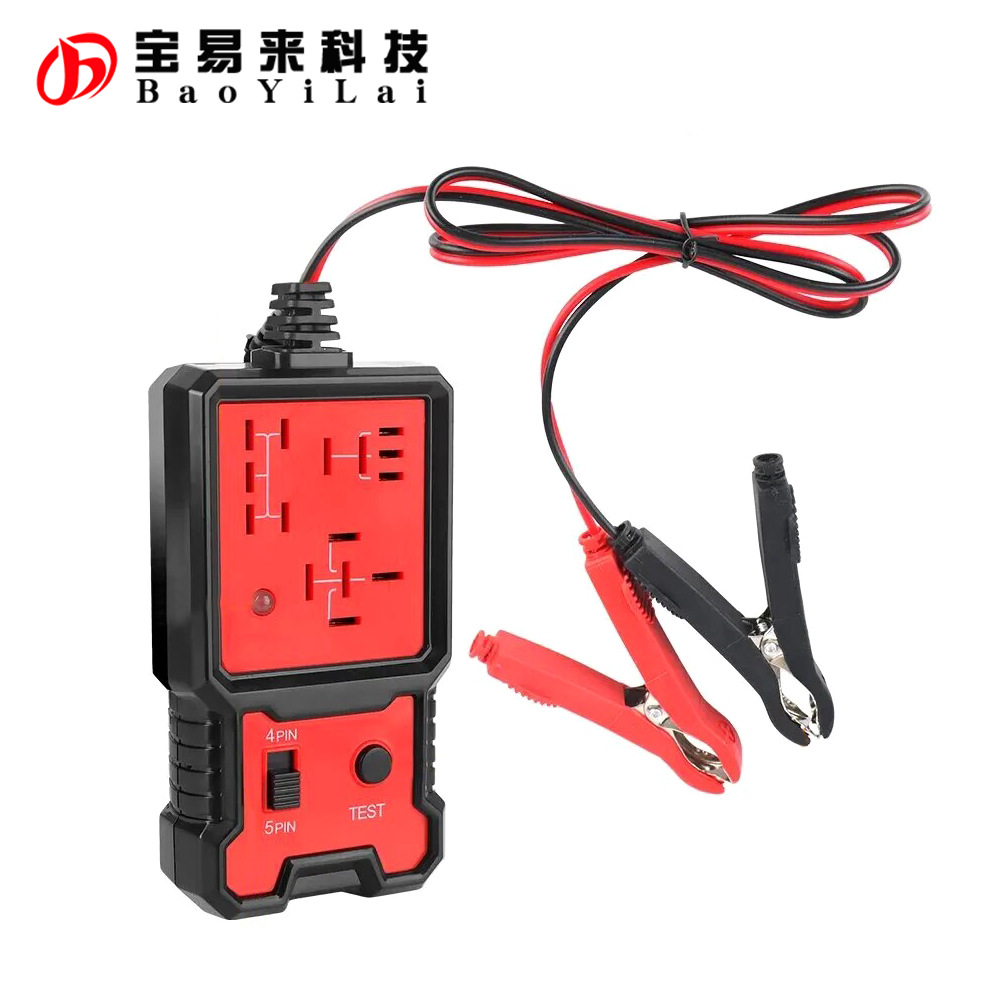

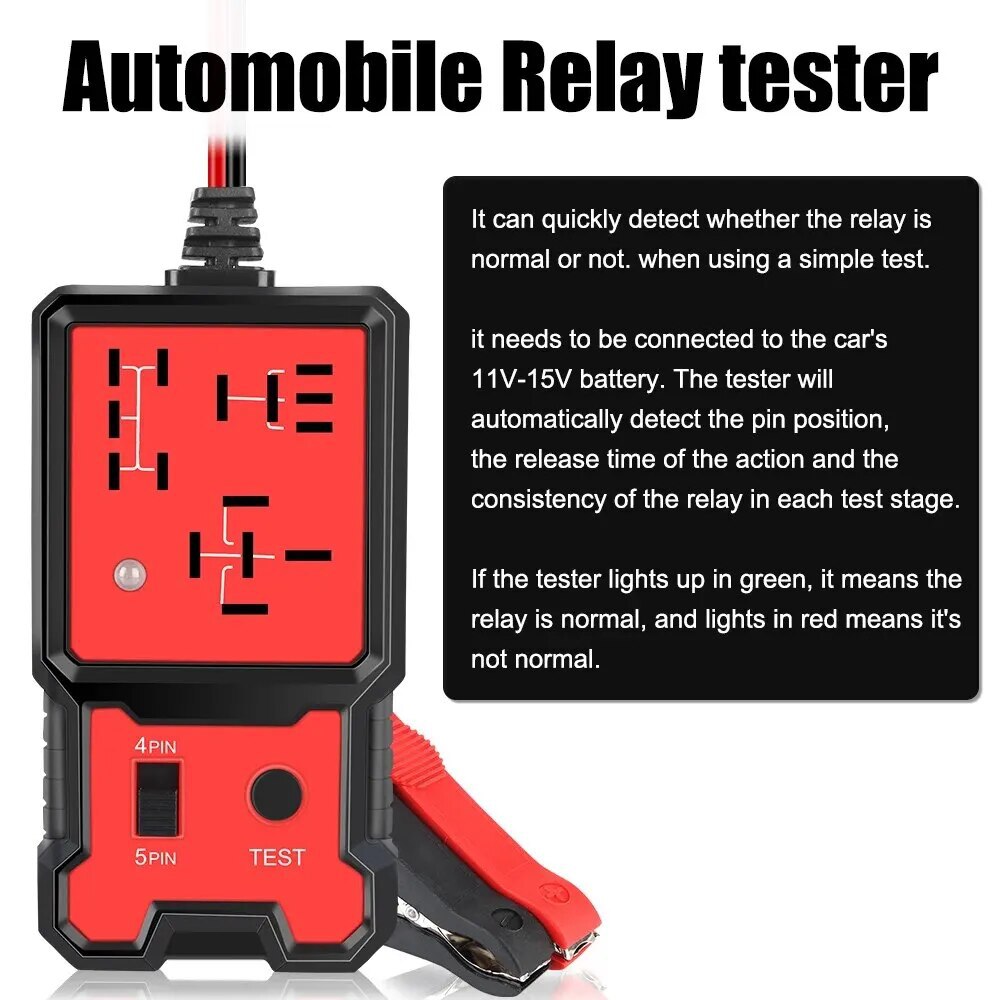

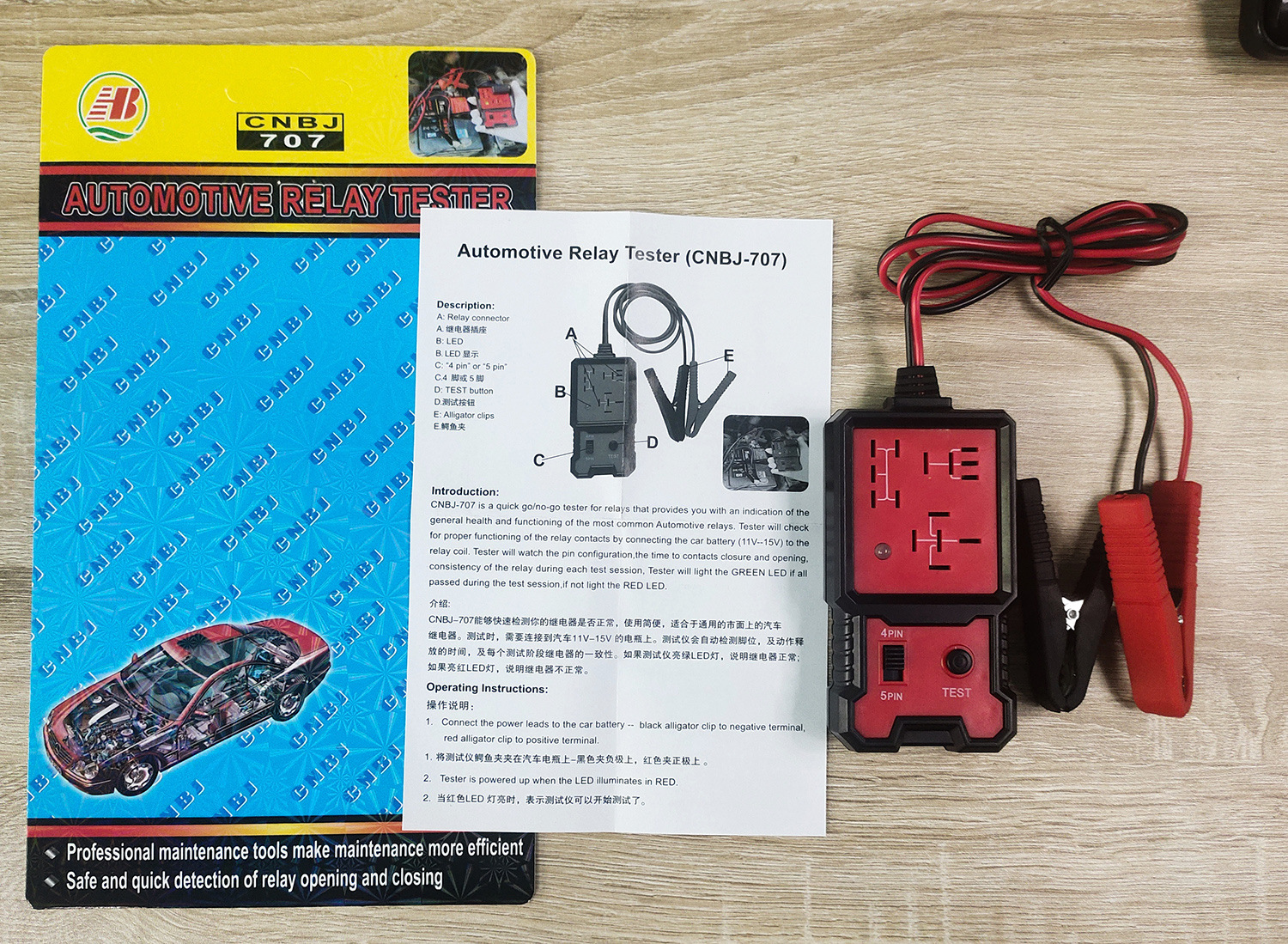

CNBJ-707 is a quick go/no-go tester for relays that provides you with an indication of the

general health and functioning of the most common Automotive relays. Tester will check

for proper functioning of the relay contacts by connecting the car battery (11V--15V) to the

relay coil. Tester will watch the pin configuration,the time to contacts closure and opening,

consistency of the relay during each test session, Tester will light the GREEN LED if all

passed during the test session,if not light theRED LED.

Operating Instructions:

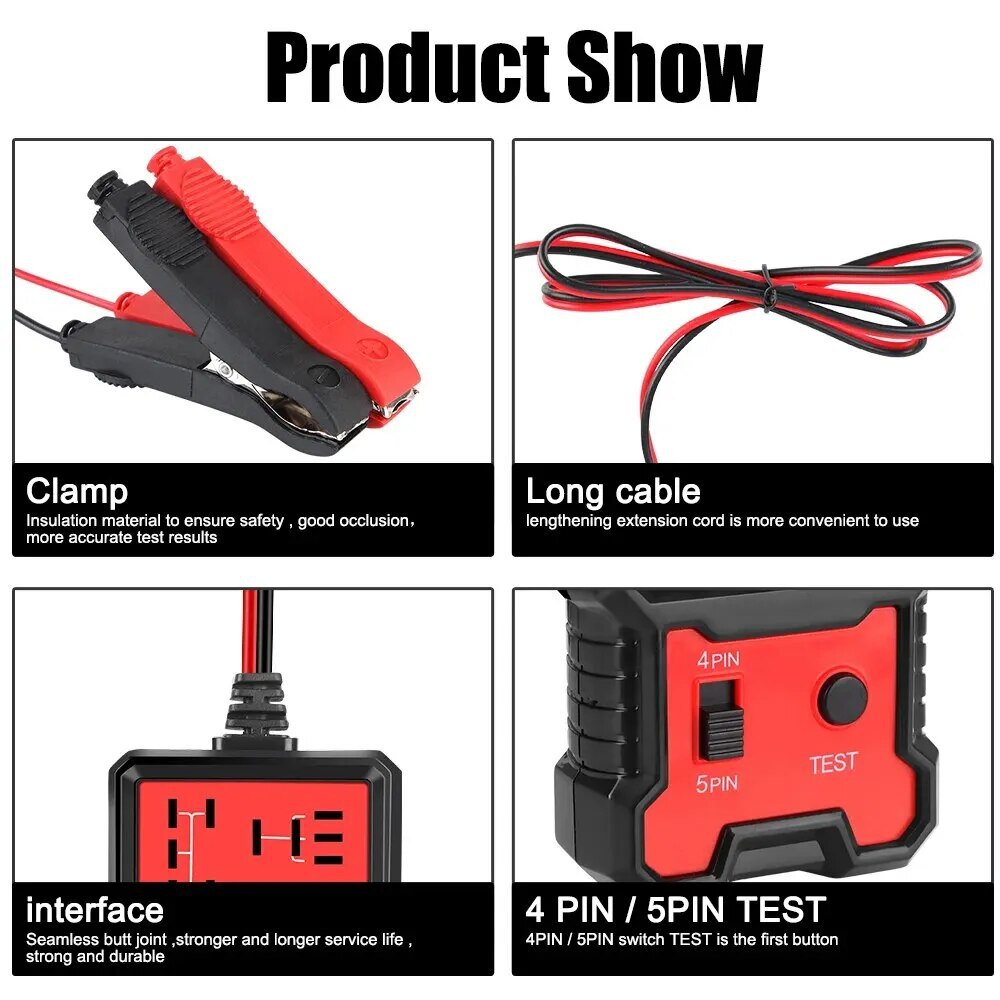

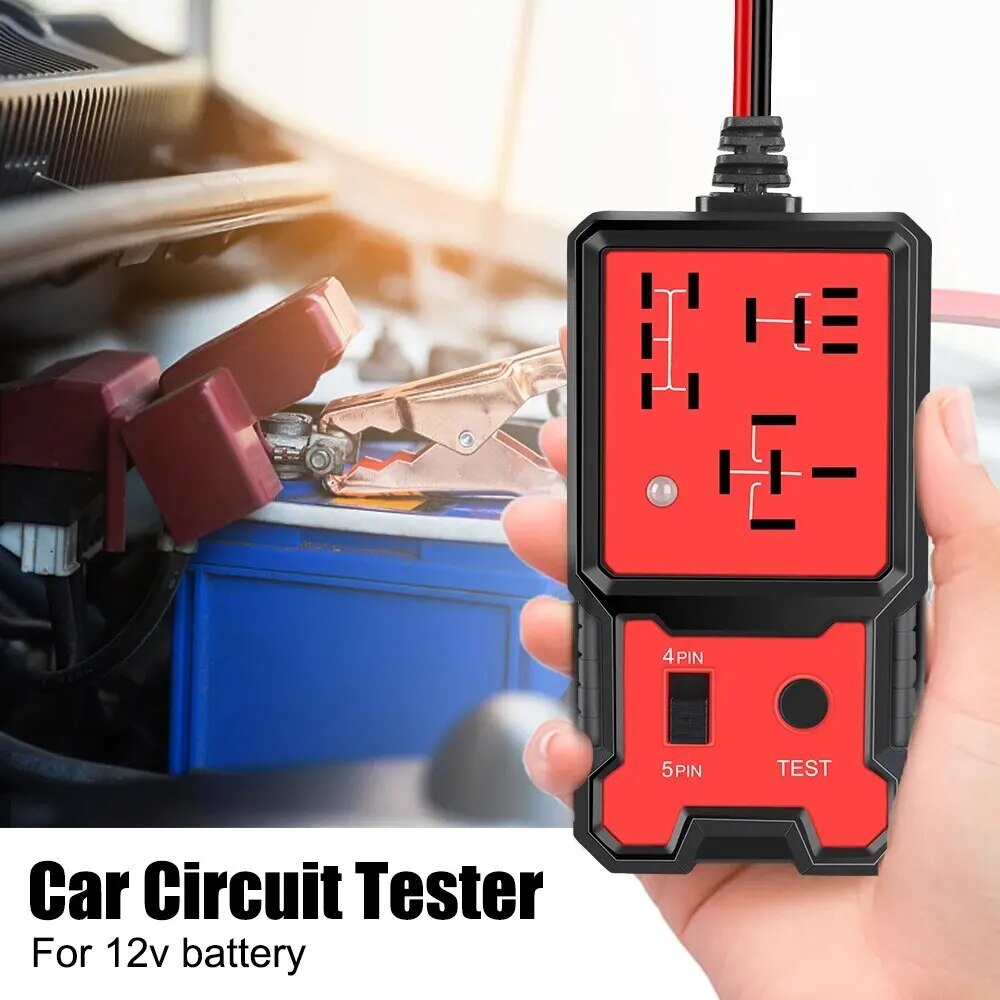

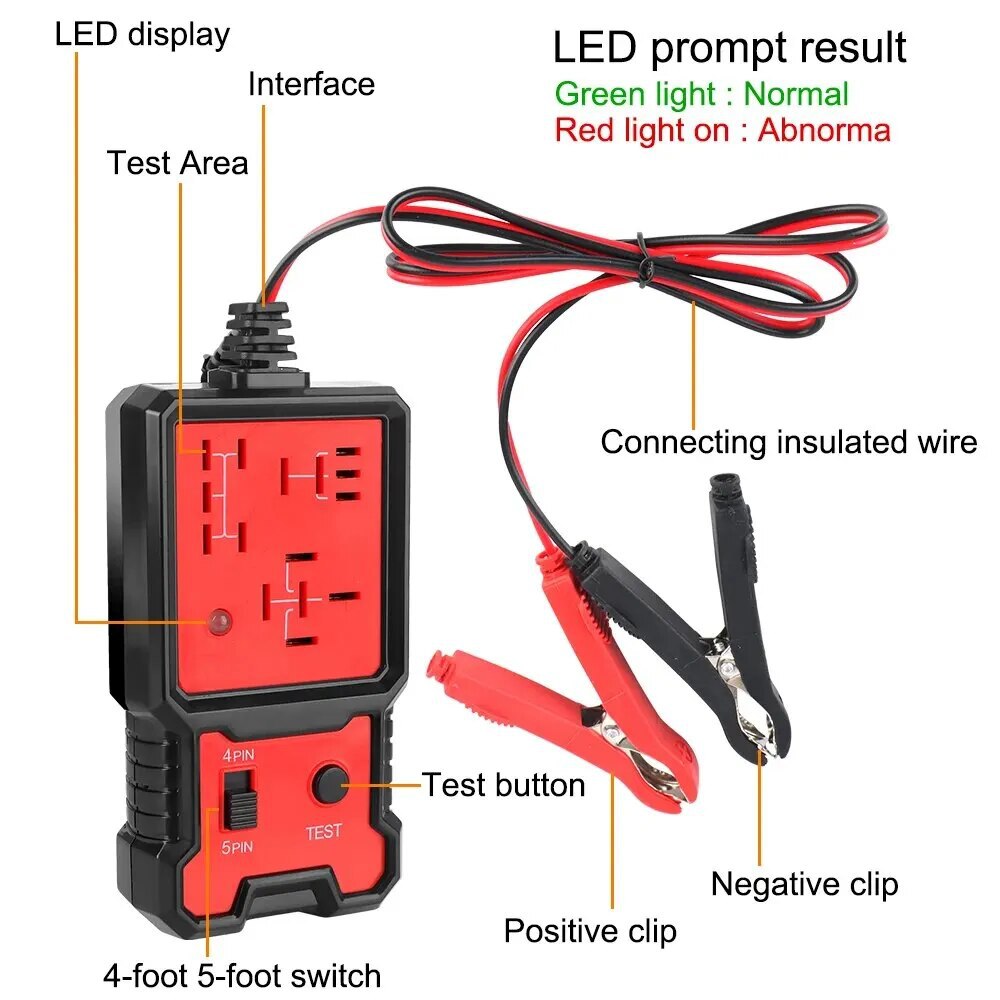

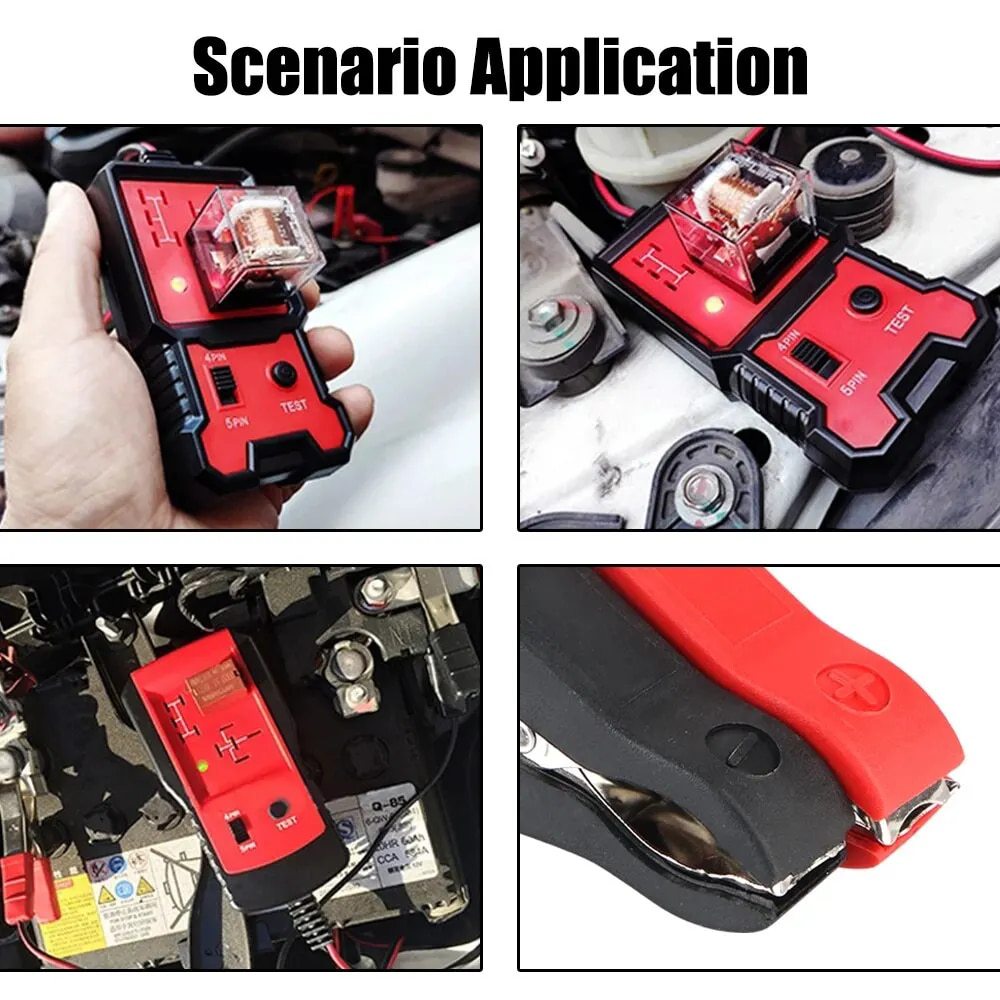

1. Connect the power leads to the car battery -- black alligator clip to negative terminal,

red alligator clip to positive terminal.

2. Tester is powered up when the LED illuminates in RED.

3. Check the relay before plugging into the tester. If it's a 4 pin relay,select"4 pin" on the tester.If it's a 5 pin relay, select"5 pin"on the tester.

4.Plug in the relay into one of the three receptacles.

5. Press the "Test" button.

6. Tester will check the pin configuration of the unknown relay. Tester will light the RED LED if the unkonwn relay is not the same to the most of common automotive relaysor the pin of the unknown relay is destroyed.

7. Tester will open and close the relay 10 times for testing the time to contacts closure and opening if the pin configuration of the relay is right. Tester will light the RED LED immediately if the time is overtime.

8. Tester will check the consistency of the relay after testing the time to contacts closure and opening ten times. Tester will light theGREEN LED if the test passed, if not light the RED LED.

9. Disconnect power leads from the car battery and remove relay from the tester.

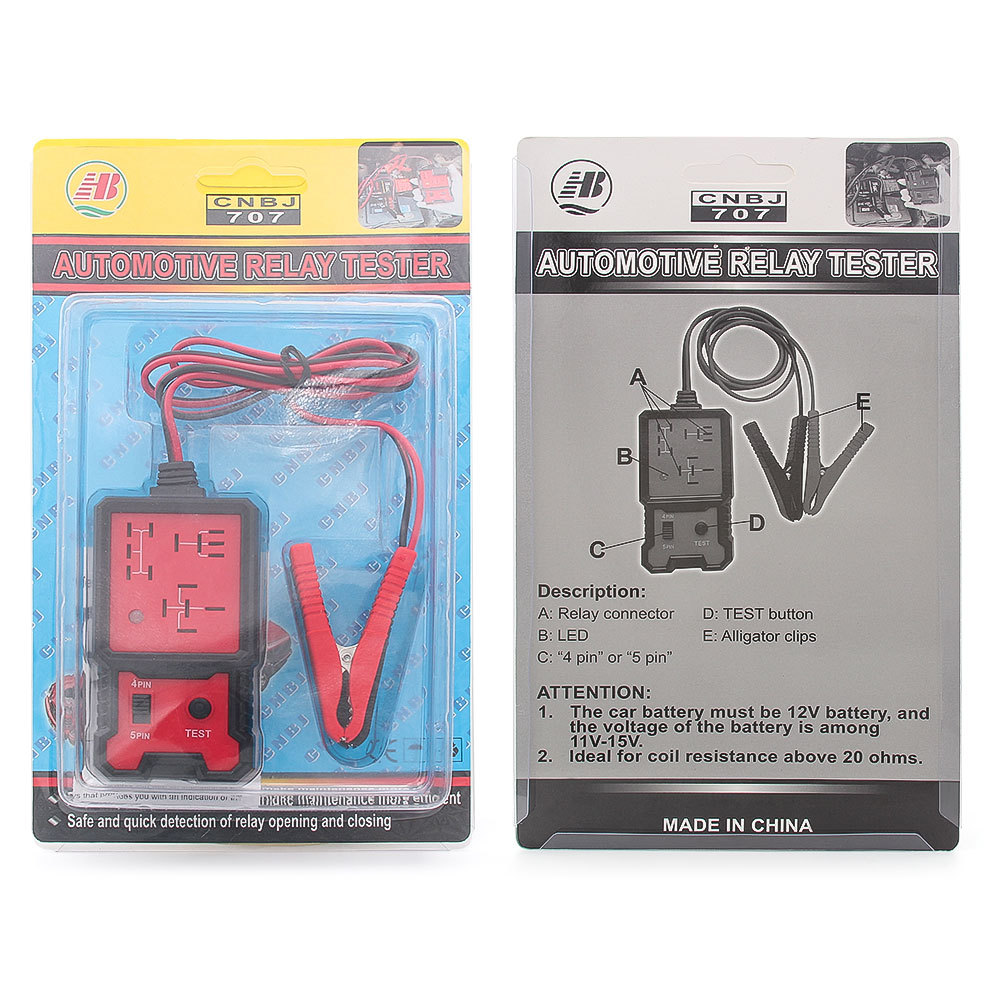

Attention:

1. The car battery must be 12V battery, and the voltage of the battery is among 11V-15V.

2.Ideal for coil resistance above 20 ohms.

操作说明:

1.将测试仪鳄鱼夹夹在汽车电瓶上-黑色夹负极上，红色夹正极上。

2.当红色LED 灯亮时，表示测试仪可以开始测试了。

3.在测试前先检查一下继电器。如果是4个脚就选择测试仪上4个脚的插座;如果是5个

脚，就选择测试仪上5个脚的插座。

4.将继电器插入三个插座之一

5.按“Test”按钮

6.测试仪会自动检测未知继电器的脚位。当继电器不是通用市面上的继电器或者损坏了，

测试仪就会亮红LED灯。

7.当脚位设置正确时，测试仪会开启闭合10次来检测动作释放的时间。当检测的时间过长

时，测试仪会亮红色LED灯。

8.当测试仪检测完动作释放时间10次后，开始检测继电器的一致性。当测试OK后，亮绿

灯，如果测试不OK，就亮红灯。

9.测试完成后，将鳄鱼夹从电瓶上拿下来，然后从测试仪上移开继电器。

注意:

1.汽车电瓶必须是12V的电瓶，电瓶的电压必是是在11V-15V之间。

2.适用线圈电阻最好在20欧姆以上。
