Арт. 895909639533

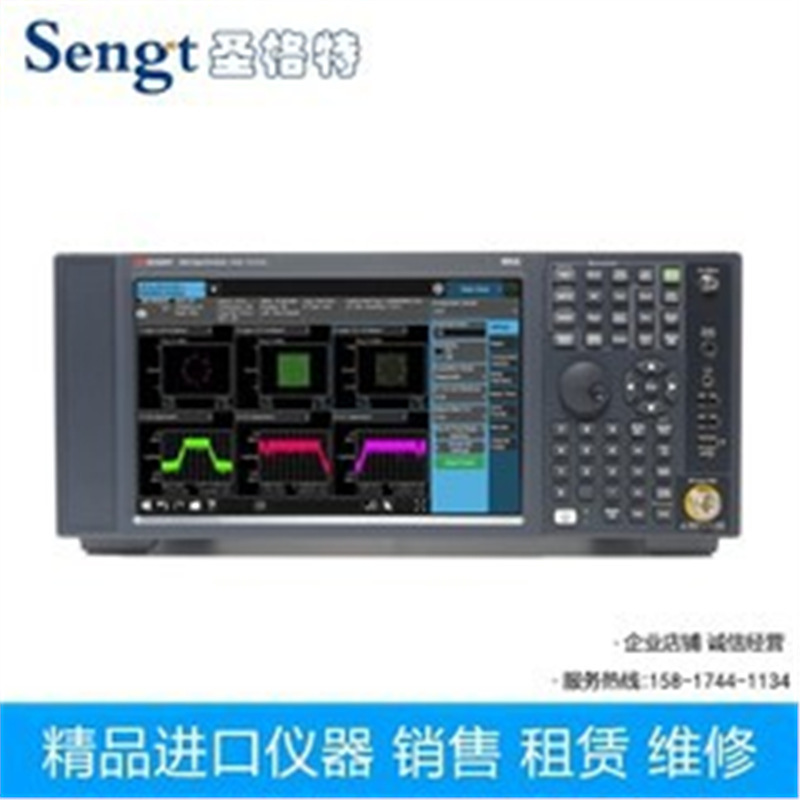

Dexeysight Agilent N9030B PXA анализатор спектра 526-WIN7 или WIN10

Ссылка на оригинал

Модель:

стандартный

Всего продаж:

50 шт.

Минимальное количество для заказа:

1 шт.

Dexeysight Agilent N9030B PXA анализатор спектра 526-WIN7 или WIN10

Ссылка на оригинал

Доставим до Москвы: 23.12 - 02.1

от 111 037.50 ₽ за 1 шт.

111 037.50 ₽

Оптом

от 1 шт.

111 037.50 ₽

Описание

是德|keysight N9030B PXA 信号分析仪，多点触控2Hz至13.6/26.5/44/50GHz

技术指标

频率频率选件最大分析带宽带宽选件最大实时带宽实时带宽选件1 GHz 时的 DANL1 GHz 时，10 kHz 频偏处的相位噪声1 GHz 时，30 kHz 频偏处的相位噪声1 GHz 时，1 MHz 频偏处的相位噪声总体幅度精度三阶截获（TOI），1 GHz 时应用——通用应用——蜂窝应用——无线连通性应用——数字视频性能水平标准衰减器衰减范围标准衰减器步进100% 截获概率的最短信号持续时间信掩比 > 60 dB 时的可检测信号持续时间无杂散动态范围显示视图触发使用频率模板触发的应用软件2 GHz 时的 DANL，不配备前置放大器10 GHz 时的 DANL，不配备前置放大器可用应用台式Real-Time Data Streaming

2 Hz 至 50 GHz

3.6、8.4、13.6、26.5、43、44、50 GHz，使用混频器可达 1.1 THz

510 MHz

25 standard, 40, 85, 125, 160, 255, 510 MHz

510 MHz

85, 160, 255, 510 MHz

-174 dBm

-136 dBc/Hz

-146 dBc/Hz

±0.19 dB

+22 dBm

89600 VSA 软件
模拟解调
噪声系数
相位噪声
脉冲
实时频谱分析
EMI
MATLAB
Vector Modulation Analysis

GSM/EDGE
LTE/LTE-Advanced
NB-IoT
W-CDMA/HSPA/HSPA+

Bluetooth® (BR/EDR/LE4.2/5.0)
Short Range Communications (ZigBee, Z-Wave)
WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax)

无

◆◆◆◆◆◇

70 dB

2 dB

3.57 µs

3.33 ns

75 dBc

密度
频谱图
密度频谱图
PvT（功率随时间的变化）频谱
PvT（功率随时间的变化）

FMT（频率模板触发）
TQT（时间限定触发）
电平
射频猝发
线路
外置
周期
Density
Density Spectrogram
PvT (Power vs Time)
PvT (Power vs Time) Spectrogram
Spectrogram

89600 VSA 软件
实时频谱分析仪
Pulse Measurement Application

-155 dBm/Hz

-157 dBm/Hz

是

选件

Frequency options
N9030B-503	Frequency Range, 2 Hz to 3.6 GHz
N9030B-508	Frequency Range, 2 Hz to 8.4 GHz
N9030B-513	Frequency Range, 2 Hz to 13.6 GHz
N9030B-526	Frequency Range, 2 Hz to 26.5 GHz
N9030B-544	Frequency Range, 2 Hz to 44 GHz
N9030B-550	Frequency Range, 2 Hz to 50 GHz

Preamplifier options
N9030B-P03	Preamplifier, 3.6 GHz
N9030B-P08	Preamplifier, 8.4 GHz
N9030B-P13	Preamplifier, 13.6 GHz
N9030B-P26	Preamplifier, 26.5 GHz
N9030B-P44	Preamplifier, 44 GHz
N9030B-P50	Preamplifier, 50 GHz

Bandwidth options
N9030B-B2X	分析带宽，255 MHz
N9030B-B40	Analysis Bandwidth, 40 MHz
N9030B-B1X	Analysis Bandwidth, 160 MHz
N9030B-B85	Analysis Bandwidth, 85 MHz
N9030B-B5X	分析带宽，510 MHz

Performance Options
N9030B-EA3	Electronic Attenuator, 3.6 GHz, Upgrade
N9030B-LNP	Low Noise Path
N9030B-MPB	Microwave Preselector Bypass
N9030B-RTS	Real-Time Wideband I/Q Data Streaming
N9030B-EP0	增强的相位噪声 DDS LO

Baseband Inputs
N9030B-BBA	I/Q Baseband Inputs, Analog

Calibration Options
N9030B-A6J	ANSI Z540-1-1994 Calibration
N9030B-AMG	Calibration + Uncertainties + Guardbanding (Accredited)
N9030B-UK6	Commercial Calibration Certificate with Test Data

Connector Options
N9030B-ALV	Auxiliary Log Video Output
N9030B-C35	APC 3.5 mm Connector
N9030B-CR3	Connector, Wideband IF Output Upgrade
N9030B-CRP	Connector Rear, Programmable IF Output
N9030B-YAV	Y-Axis Video Output

External Mixing
N9030B-EXM	External Mixing

Security - PC Features
N9030B-SF1	Security Features, Exclude Launching Programs
N9030B-SF2	Security Features, Prohibit Saving Results
N9030B-SSD	Additional Removable Solid State Drive
N9030B-SS1	Additional removable solid state drive, Win10

N9030B-107	Audio input and digitizer

Application Software
89601B
N6171A

Real Time Recorder
N9030B-RTR	Real-Time Spectrum Recorder and Analyzer Application Example, License

Accessories
1CM113A	Rack mount flange kit 177.0mm H (4U) - two flange brackets, 2015 color
1CN103A	Handle kit 177.0mm H (4U) - two front handles, 2015 color
1CP105A	Rack mount flange and handle kit 177.0mm H (4U) - two brackets and front handles
1DVR001A	ROM/CD-R/RW drive
1KBD001A	USB keyboard-smaller keyboard
1MSE001A	Mouse
MLP001A	Minimum loss pad, 50 to 75 ohm
1CR014A	Rack Slide Kit for 17-inch and 20-inch Mounting Holes
N9030B-033	Measuring receiver connector accessory kit, 26.5GHz MMR
N9030B-034	Measuring receiver connector accessory kit, 50GHz MMR

Additional Documentation
N9030B-AB2	Chinese localization, user interface and getting started guide
N9030B-ABE	Spanish localization, user interface and getting started guide
N9030B-ABF	French localization, user interface and getting started guide
N9030B-ABJ	Japanese localization, user interface and getting started guide
N9030B-AKT	Russian localization, user interface and getting started guide
N9030B-AB1	Korean localization, user interface and getting started guide

Application Software with Subscription
N9061EM0E	Remote Language Compatibility Measurement Application
N9062EM0E	SCPI Language Compatibility Measurement Application
N9063EM0E	Analog Demodulation Measurement Application
N9067EM0E	Pulse Analysis Measurement Application
N9068EM0E	Phase Noise Measurement Application
N9069EM0E	Noise Figure Measurement Application
N9071EM0E	GSM/EDGE/Evo Measurement Application
N9073EM0E	W-CDMA/HSPA+ Measurement Application
N9077EM0E	WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application
N9077EM1E	WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application
N9080EM0E	LTE and LTE-Advanced FDD Measurement Application
N9080EM3E	NB-IoT and eMTC FDD Measurement Application
N9081EM0E	Bluetooth (TM) Measurement Application
N9082EM0E	LTE and LTE-Advanced TDD Measurement Application
N9084EM0E	Short Range Communications Measurement Application
N6141EM0E	EMI Measurement Application
N9085EM0E	5G NR Measurement Application
N9030RT1B	Real-time analysis up to maximum available BW, Basic Detection
N9030RT2B	Real-time analysis up to maximum available BW, Optimum Detection
N90EMDUAB	Duplex IF RTSA
N90EMEDPB	Enhance Display Package
N90EMEMCB	Basic EMC Functionality
N90EMESCB	External Source Control
N90EMFP2B	Fast Power Up to 40 MHz
N90EMFT1B	Frequency Mask Trigger, Basic Detection
N90EMFT2B	Frequency Mask Trigger, Optimum Detection
N90EMRBEB	Resolution Bandwidth Extended
N90EMTDSB	Time Domain Scan
N9054EM0E	VMA Vector Modulation Analysis Measurement Application
N9054EM1E	Vector Modulation Analysis Custom OFDM Application
N9091EM0E	Measuring Receiver Application

仪器是特殊贵重商品，请先与客服沟通可提供说明与技术支持。联系人：胡先生微与手机同号：18117901878 专业租售3G到110G信号源，网分，频谱，功率计配件等仪器及提供仪器扩频到110G等服务，5GNR测试.

Характеристики

Импортировать ли:

нет

Номер заказа:

345

Обработка и настройка:

нет

номер товара:

N9030B

тип:

Сетевой анализатор спектра

бренд:

Аджиент/Аджиент

Модель:

стандартный

Частота покрытия:

от 2 Гц до 50 ГГц

Режим отображения:

рабочий стол

Габаритные размеры:

222

вес:

Область применения:

электронное измерение

Заниматься ли исключительно поставками товаров для трансграничного экспорта:

нет
