Немецкий двунаправленный лабораторный источник питания EA-PSB 10200-50 2U 3000 Вт, совершенно новый и аутентичный.

Описание

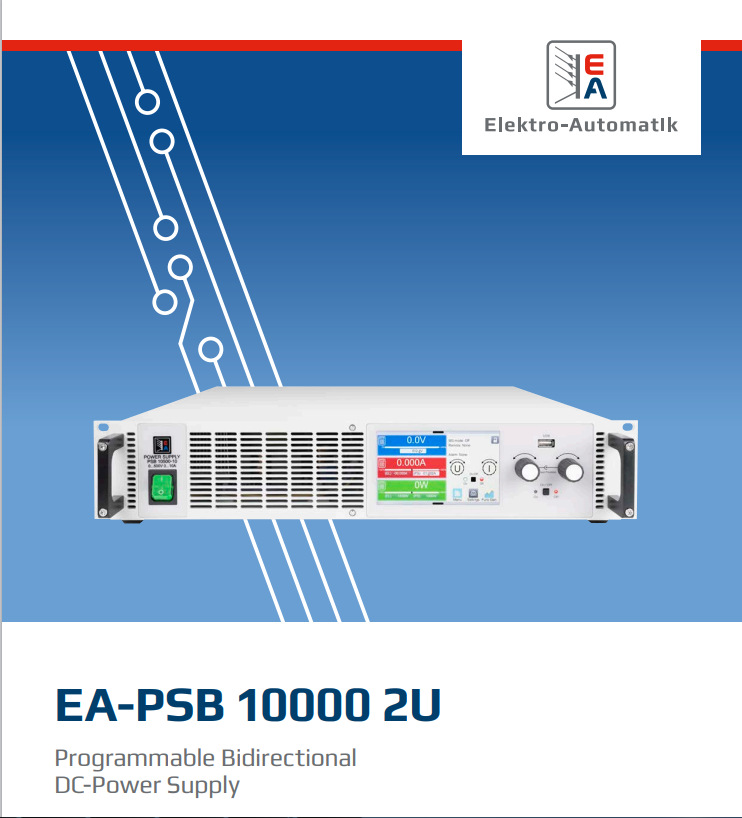

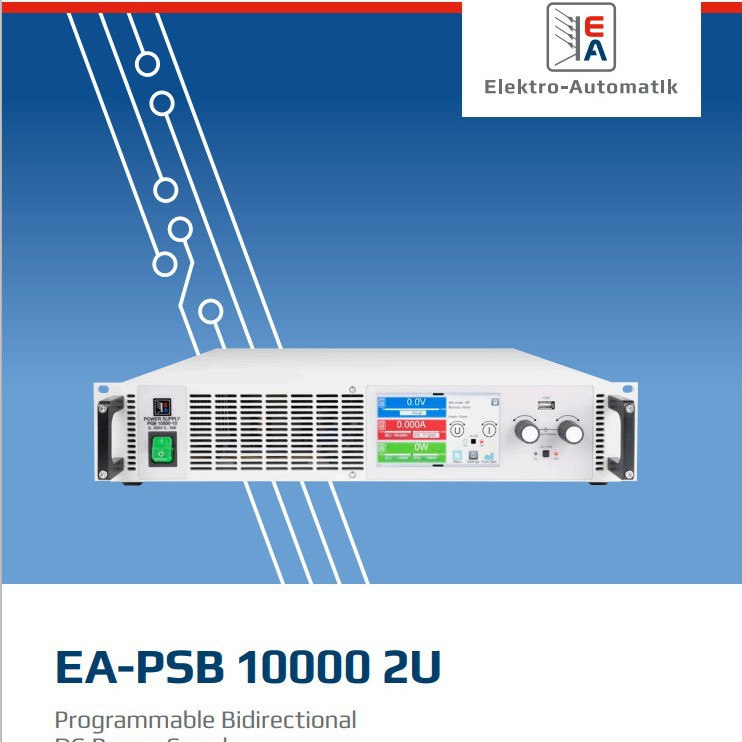

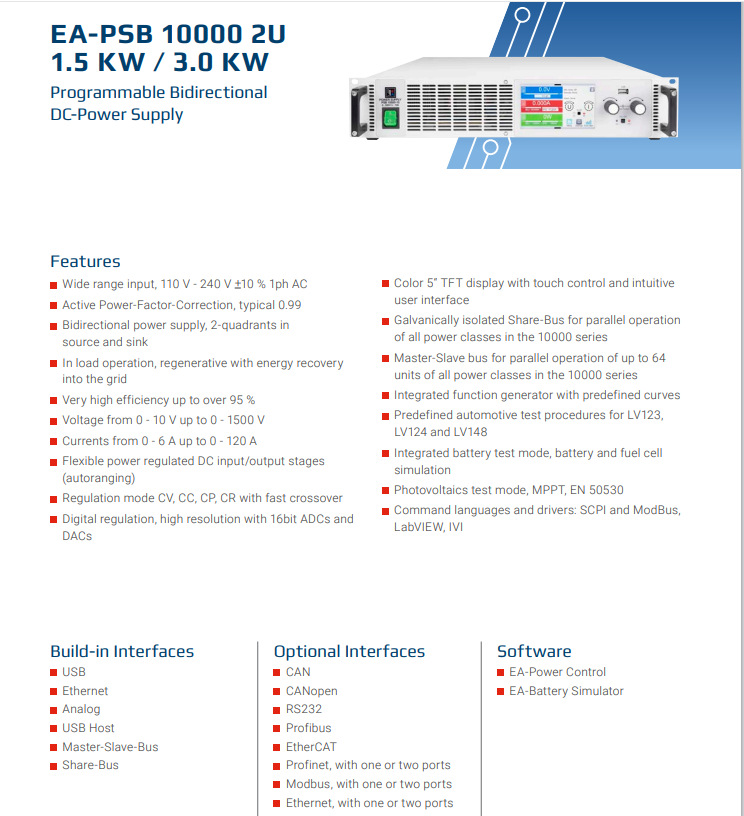

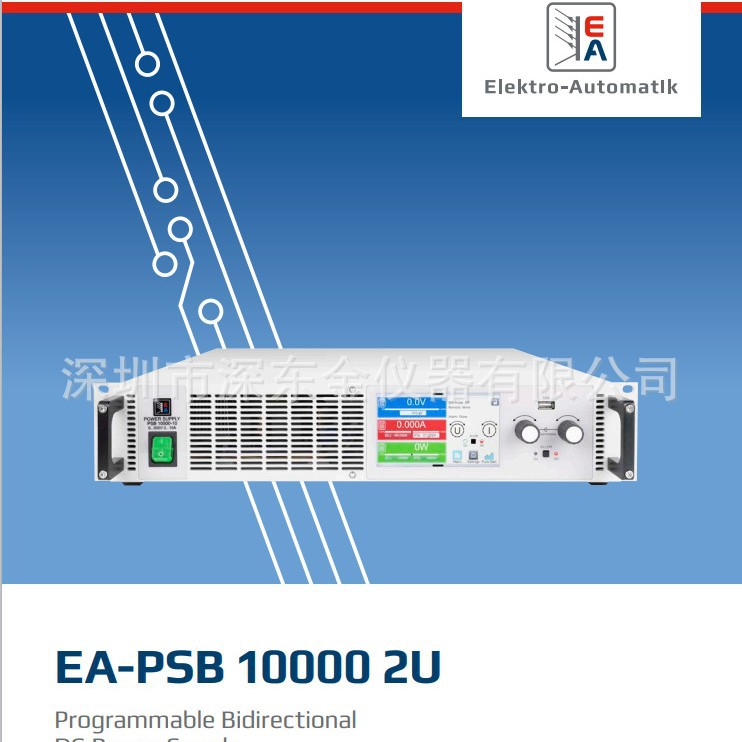

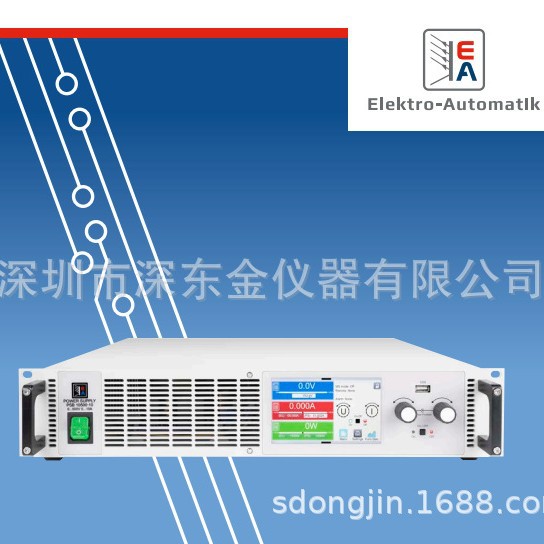

EA-PSB 10200-50 2U is a PSB 10000 2U series programmable bidirectional DC power supply. This bidirectional power supply device incorporates the function of a laboratory power supply(source) and an electronic load(sink) into one unit. The DC supply operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

• Wide range input, 110VAC - 240VAC +10 % 1ph
• Active power factor correction, typical 0.99
• Power range from 0 - 3000W
• Voltage range from 0 to 200VDC
• Current range from 0 to 50A
• Regulation mode CV, CC, CP, CR with fast crossover
• Digital regulation, high resolution with 16bit ADCs and DACs
• Colour 5“ TFT display with touch control and intuitive user interface
• Galvanically isolated share-bus for parallel operation of all power classes in the 10000 series
• Command languages and drivers: SCPI and Modbus, LabVIEW, IVI

1 x bidirectional power supply, 2 x remote sensing plugs, 1 x 1.8m USB cable, 1 x set of DC terminal covers, 1 x sense terminal cover, 1 x USB stick with documentation and software, 1 x cable tie for strain relief.
