Иммобилайзер CHADWICK Circuit Cut Off 12V M506 RFID система

Описание

M506 immobilizer system ,a new production for car security of 12V vehicle

CHADWICK Car intelligent anti-robbery system
12Voltage Universal Intelligent oil circuit lock or anti-theft device,Non-destructive installation DIY easy

Applicable models: 12V gasoline car/12V motorcycle
Installation location: oil pump fuse (directly replace the original car fuse)
Product function: cut off the oil and turn off the engine
Product features: fast installation, non-destructive plug-in, stable performance

This is a new type of car immoblizer system. Compared with other similar products on the market, it has a relatively new design. The main unit is smaller, the remote control is lighter and thin, and the new micro-electric technology brings you more safety and installation is very simple, you can DIY, directly unplug the oil circuit fuse in the engine compartment of the car, and plug our main unit directly into the replacement to complete the installation. Just fix it and cover the engine cover and you can use it. The remote control comes with Auto-sensing function, no need to operate, you can hide the remote control in your wallet or other hidden places, no one will notice, even your closest friends don't know that you have installed new products in technology, you can refuse gracefully borrowing cars from others, or preventing thieves from stealing cars, provides a safe guarantee for your car.

Features:
1. Circuit hidden lock mode (no short-circuit ring is inserted in the unit inside) factory default mode
1. If the car does not receive the signal from the remote control within 16 seconds after starting the car, the
engine will turn off. The car can start normally if it receives the signal from the remote control within 16
seconds of starting. Even if it no longer receives the signal from the remote control, it will not turn off.
2. Remote control operation:
(1) Manual mode: press the remote control every time or immediately after start-up.
(2) Automatic mode: Just bring the remote control.
3. LED indication function: When receiving a remote control signal, the LED flashes once, indicating that the
signal is normal, and no signal will not flash.
2. Anti-robbery mode: (the host inserts a short-circuit ring)
1. When the host receives the signal from the remote control, the car can start normally, and it needs to continue
to receive the signal from the remote control in the middle, otherwise it will turn off after 30 seconds if the
signal is not received.
2. LED indication: when the signal from the remote control is received, it flashes once for 1 second, when the
signal is not received, it flashes 2 times per second for 11 to 20 seconds; when the signal is not received for
21 to 30 seconds, the LED flashes 4 times per second. (After 30 seconds Have not received the signal LED does
not light)
3. The remote control in anti-robbery mode must turn on the automatic mode, otherwise it will turn off halfway
due to no signal received.

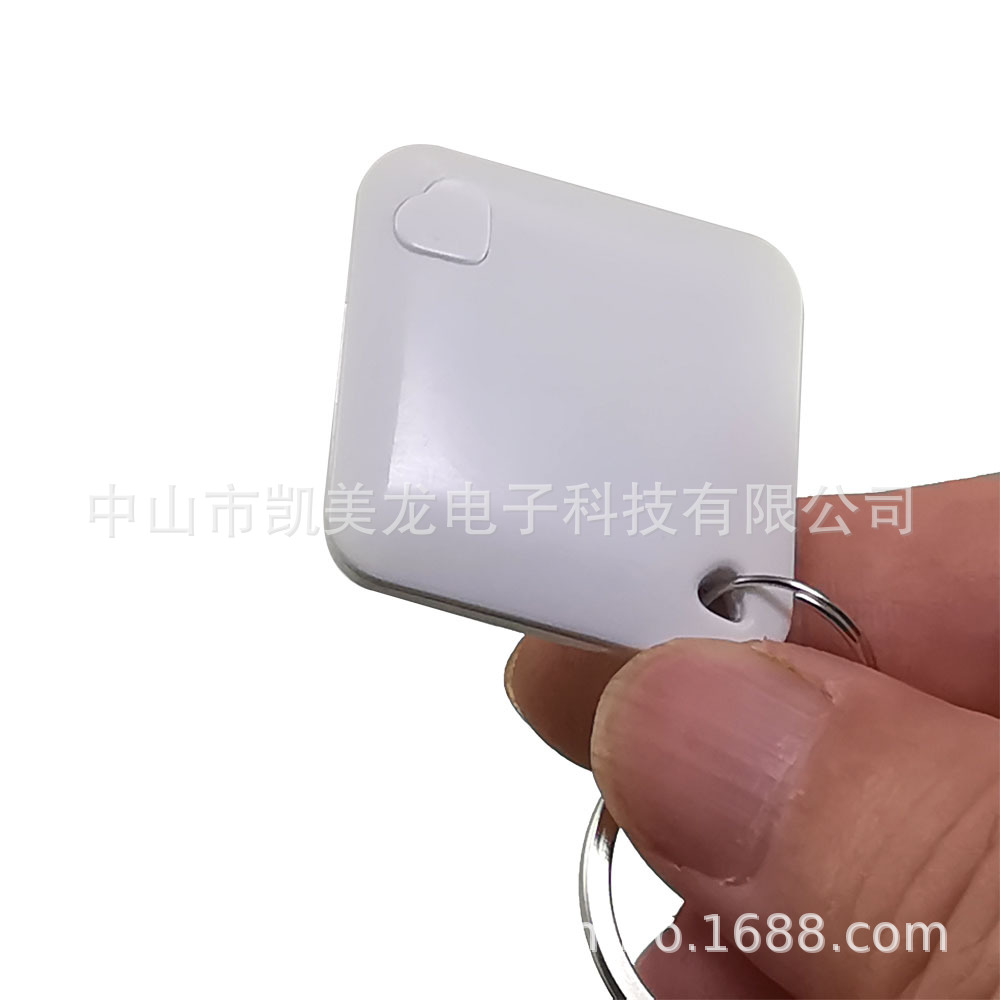

3. How to use the remote control:
Please keep the remote control alone, do not mix with the car keys to increase the difficulty of grabbing.
Coding learning: Press the host computer learning code switch to let go, immediately press the remote control
button, the relay in the host will beep 3 times to indicate that the code learning is successful, and the method
for learning the second remote control is the same as above. Up to 2 remotes can be learned. The code has
been learned well when leaving the factory, and there is no need to repeat the operation.

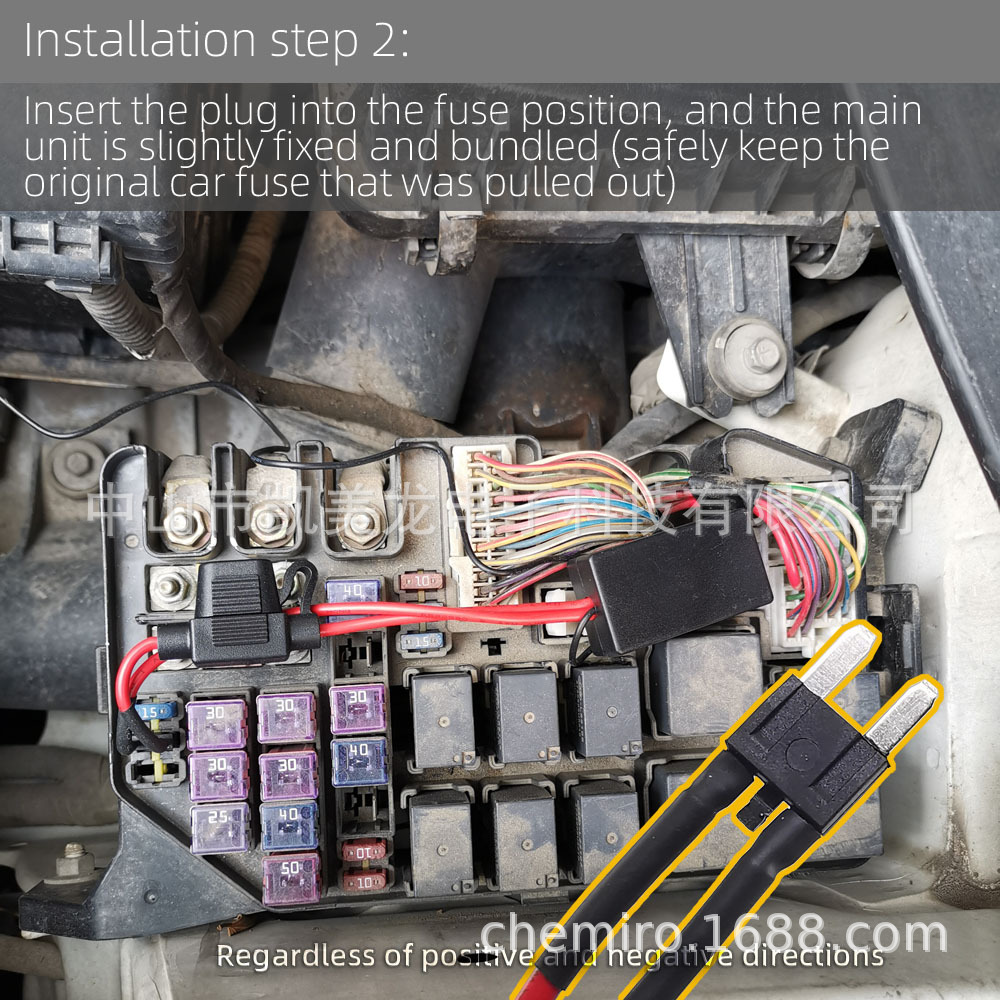

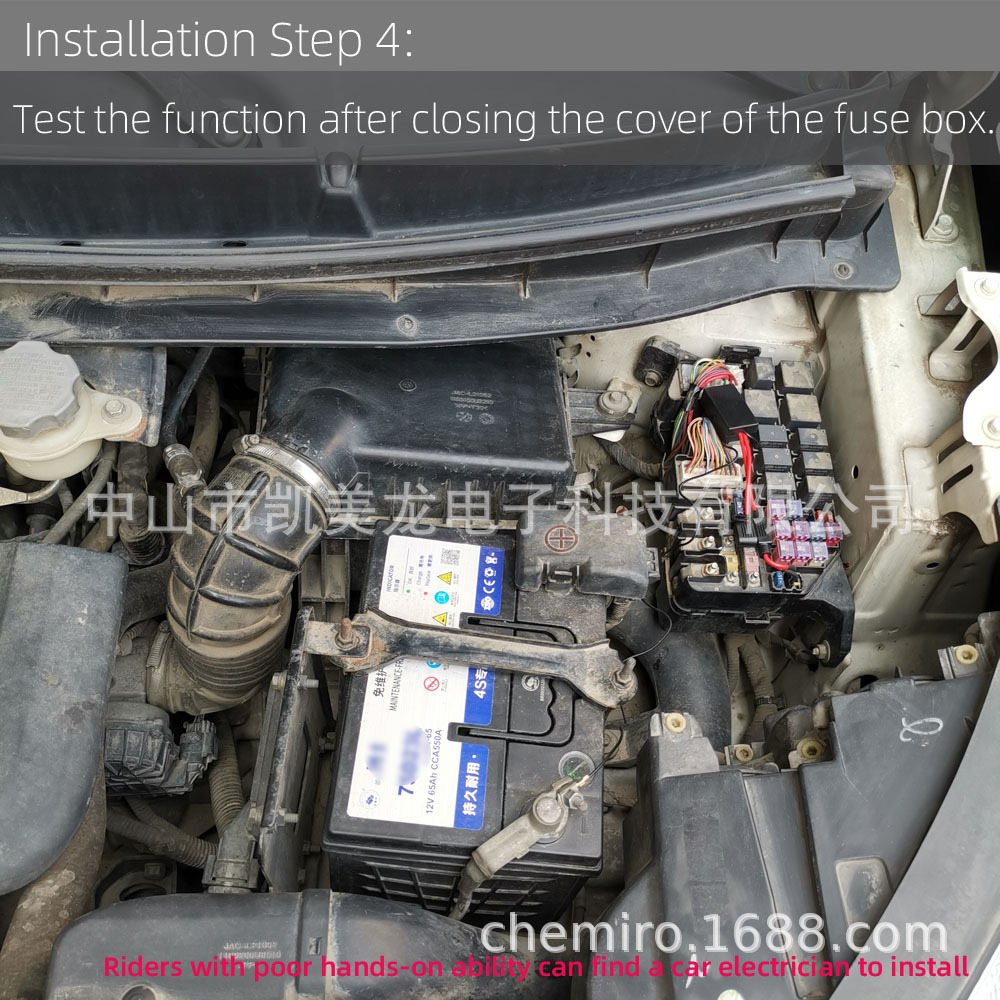

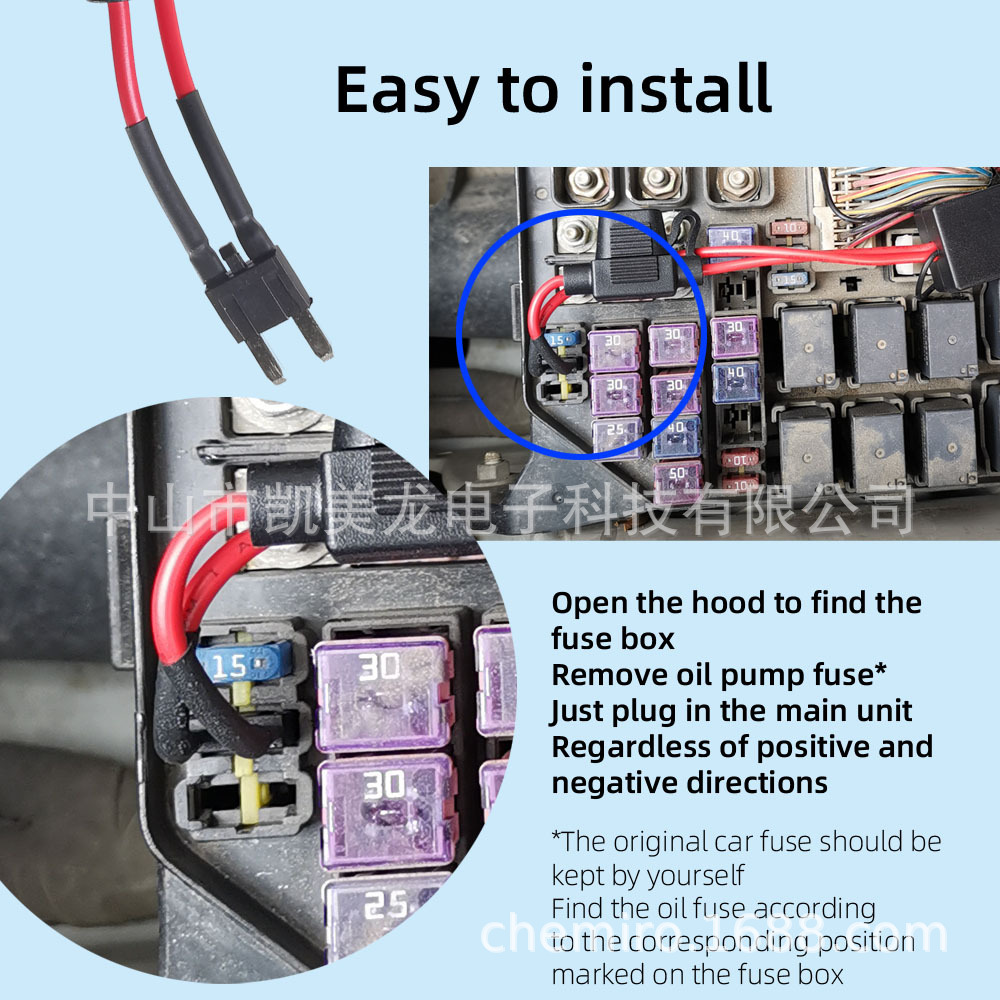

4. How to install:

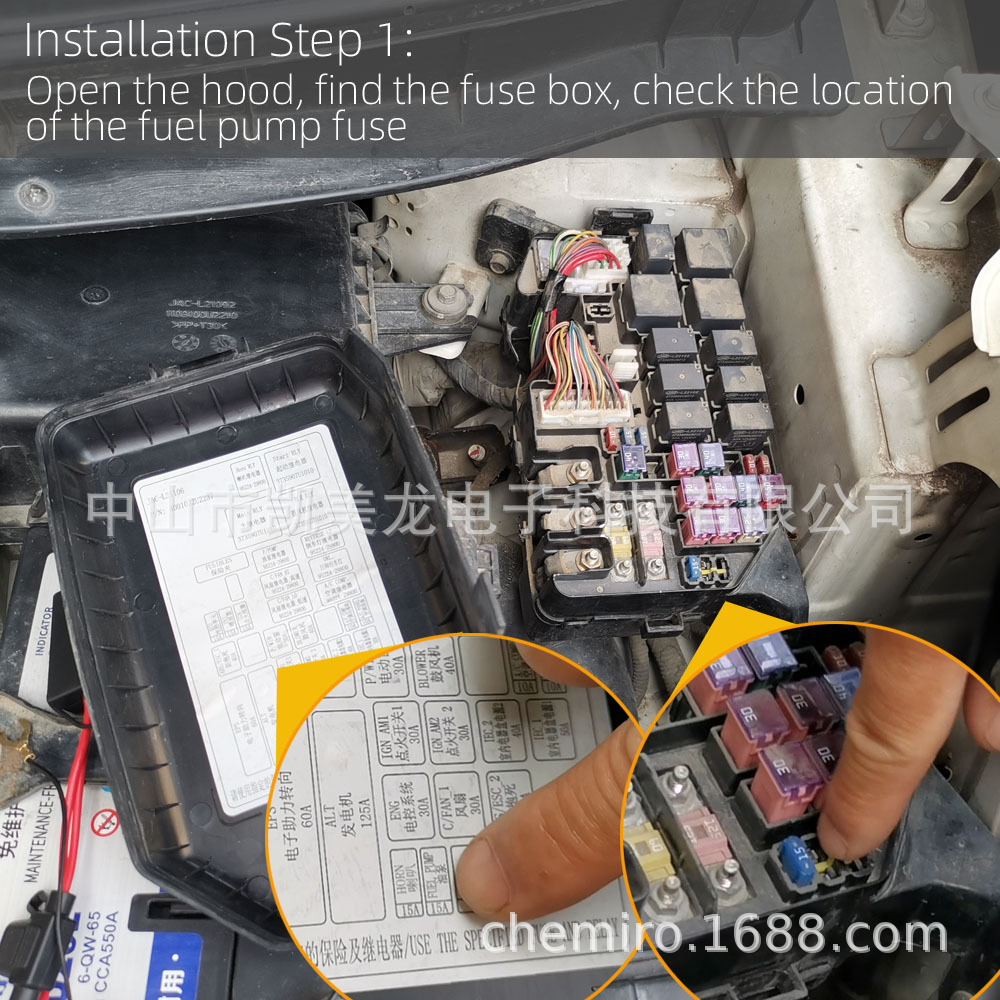

First open the fuse box, find the oil pump fuse and pull it out, then replace it with the red wire plug , Keep the
original fuse in a safe place , fix the main unit with a tie and cover the fuse box.

SPECIFICATION
Unit working voltage: 12V±3V
Unit quiescent current: ≤12mA
Unit control current: ≤30A
Remote control operating current: ≤3~8mA
Remote control standby current: ≤1uA
Remote control battery specification: CR2032
Remote control frequency: 433.92MHz

NOTICE:
When not using the system ,turn the remote off for extends battery life ,This product is not waterproof design.

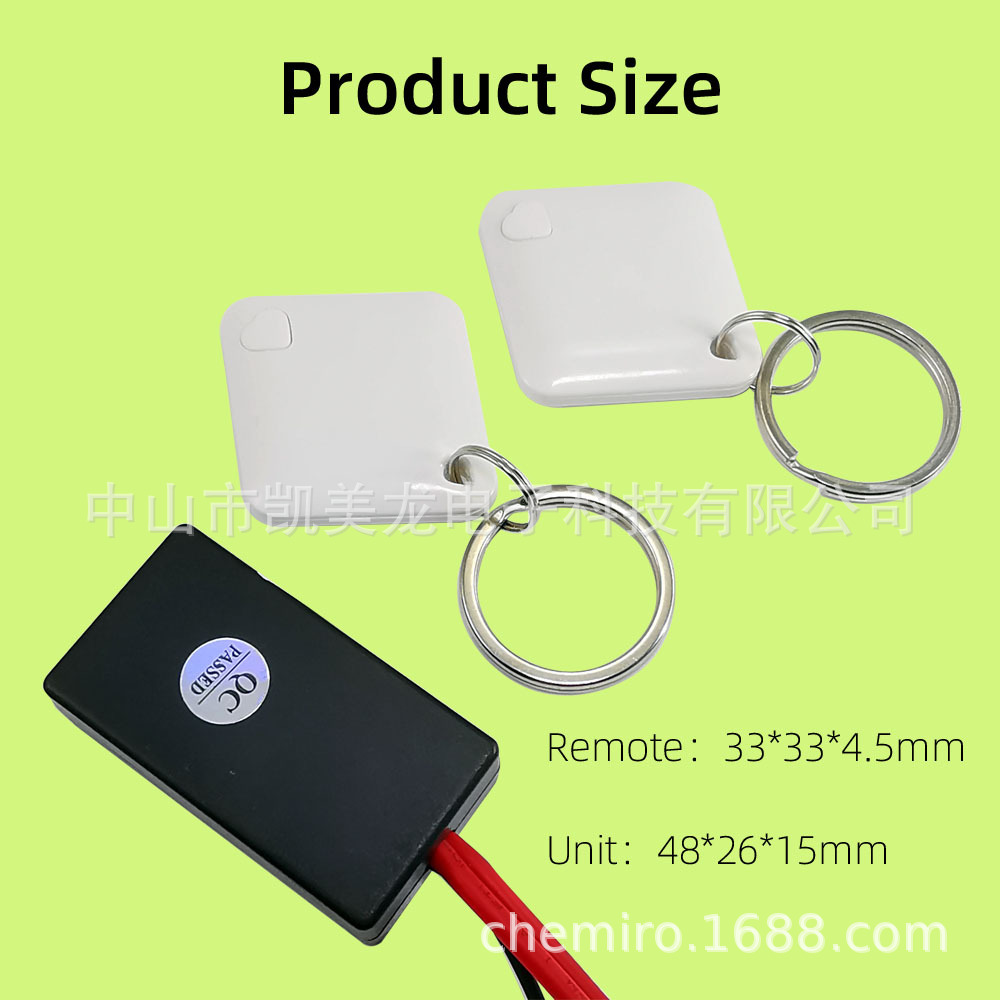

Product size:
Unit:48*26*15mm
Remote:33*33*4.5mm
Packing box:165*92*48mm

Weitght:about 0.2kg

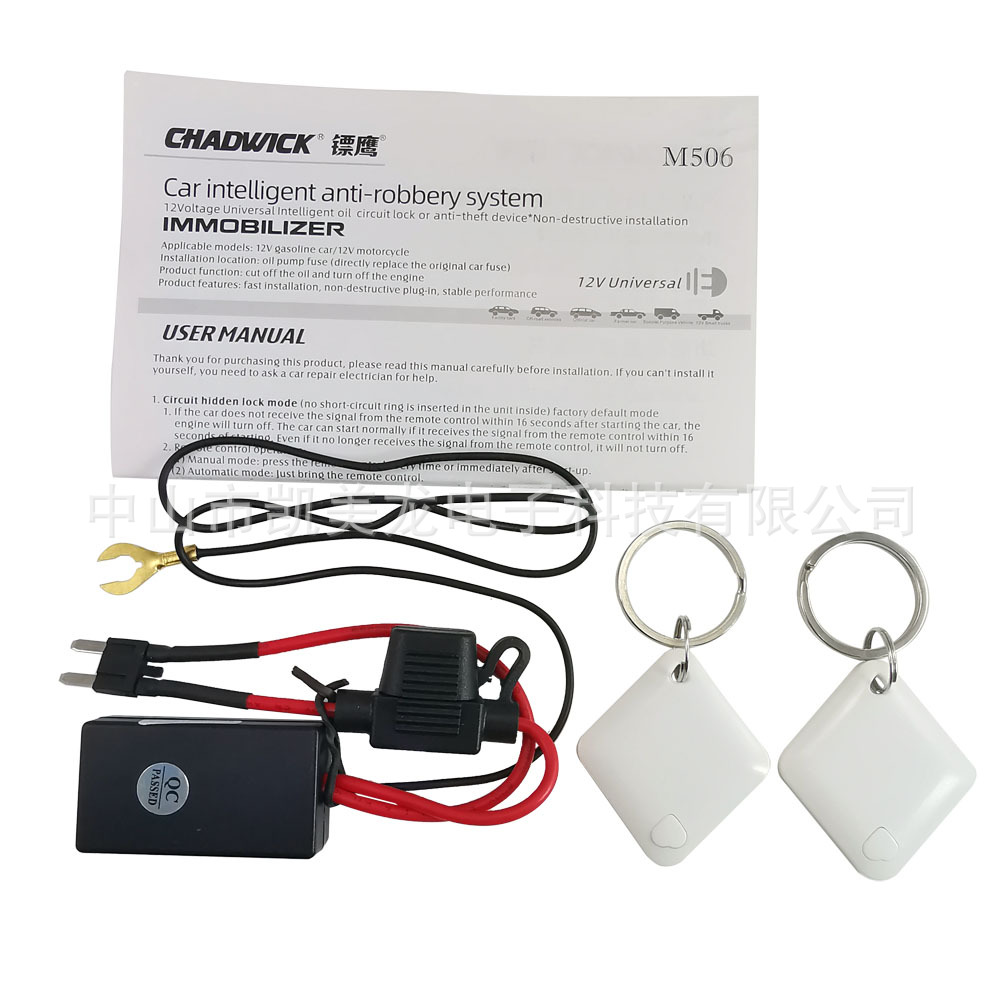

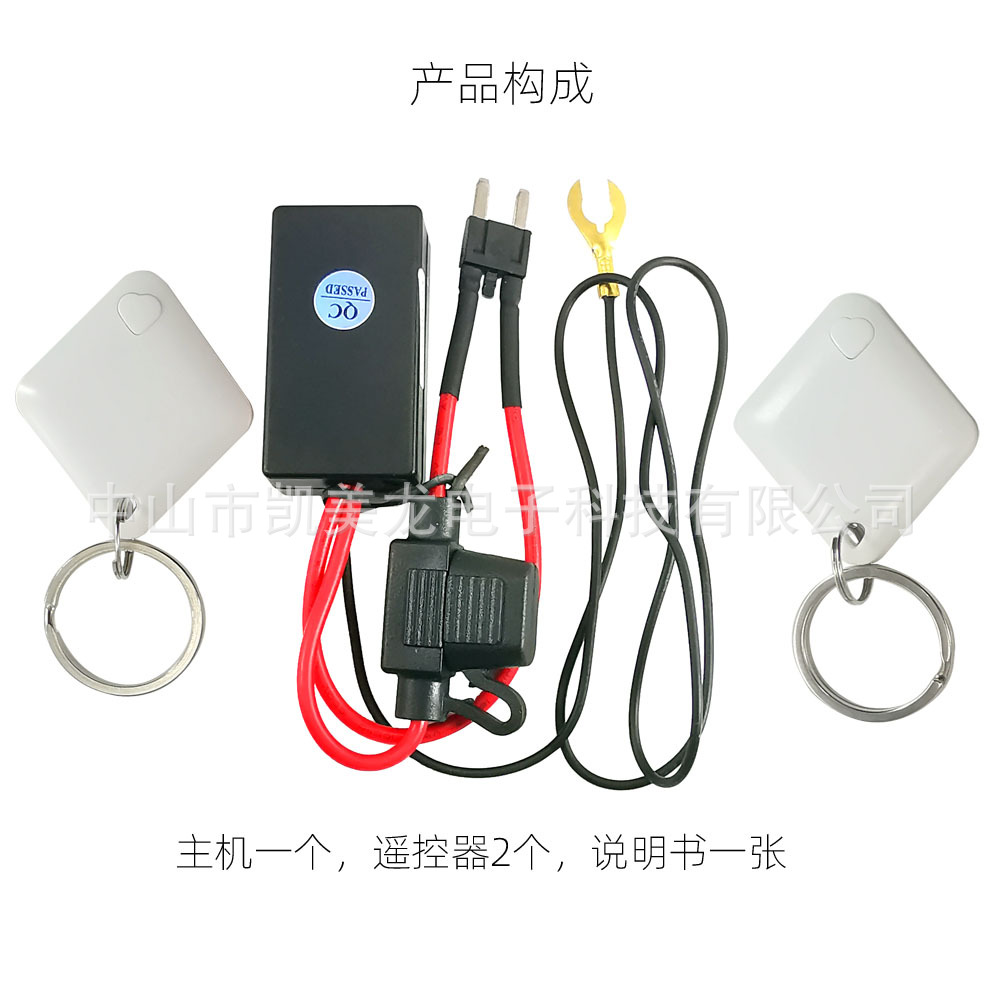

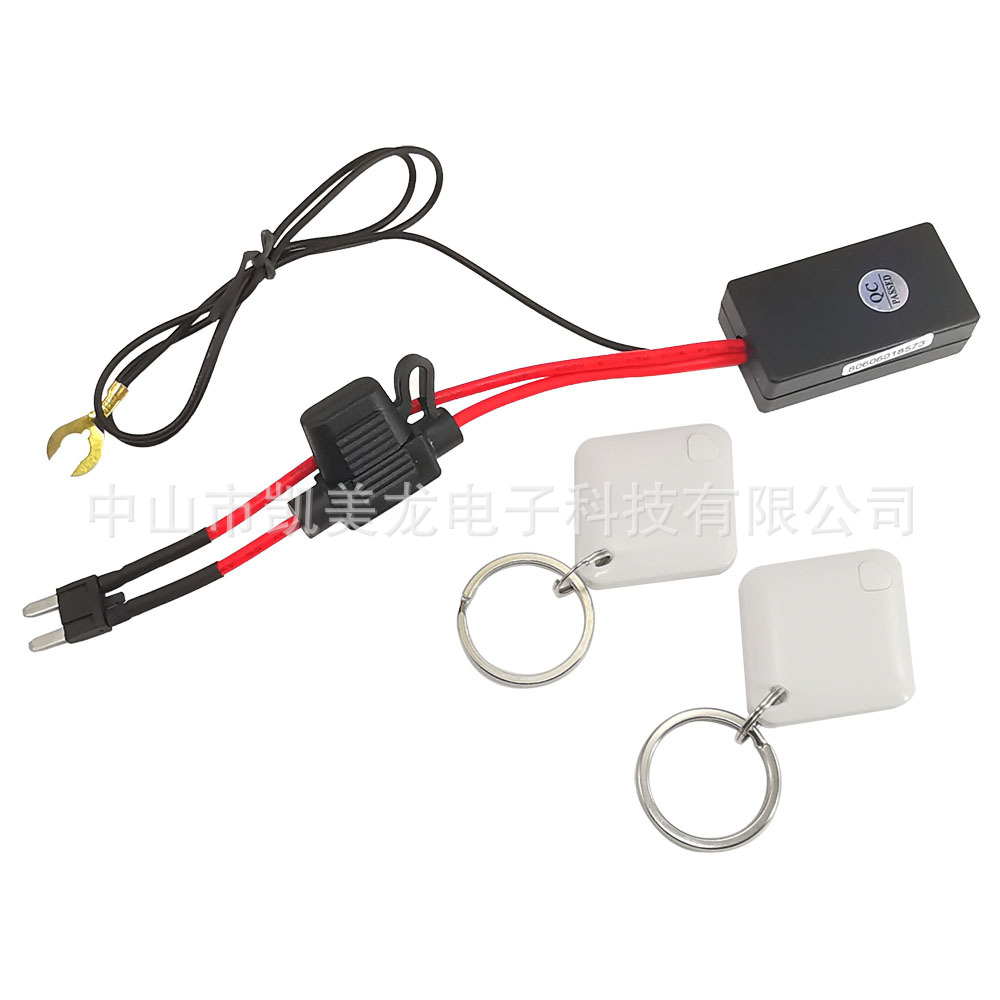

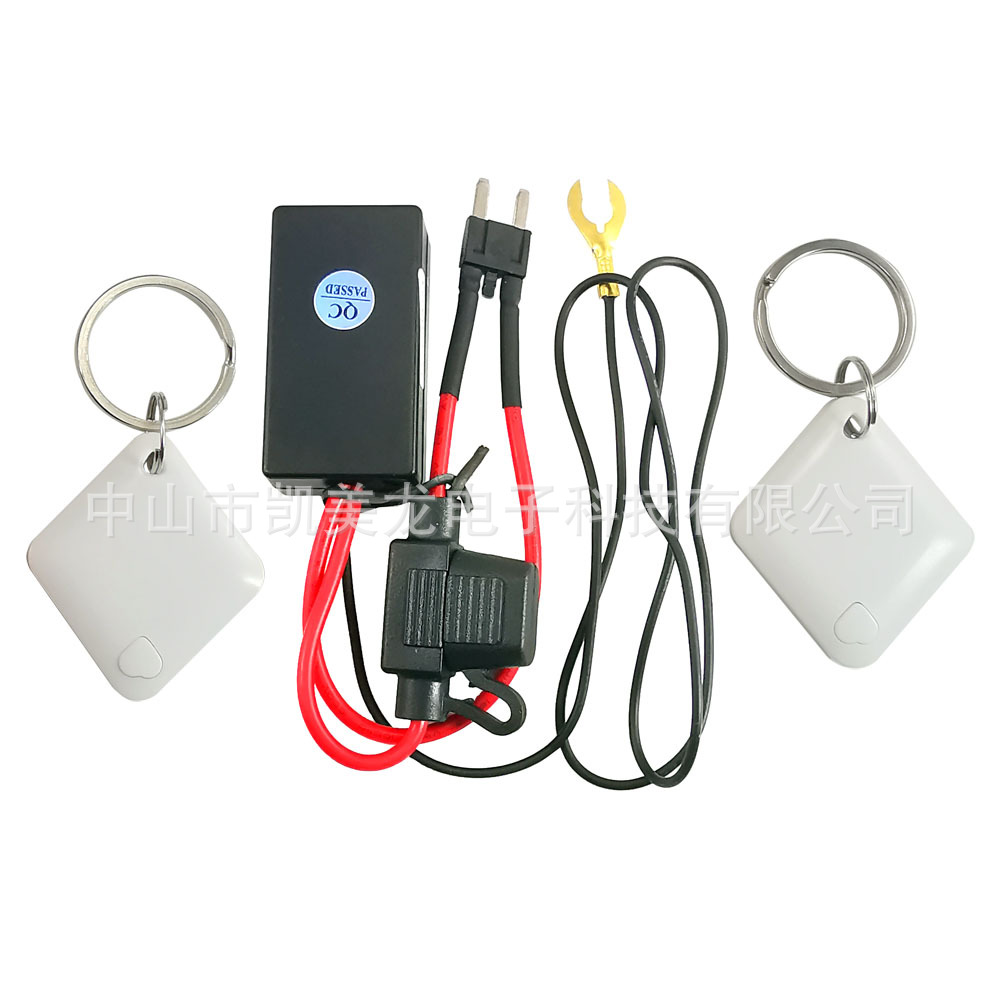

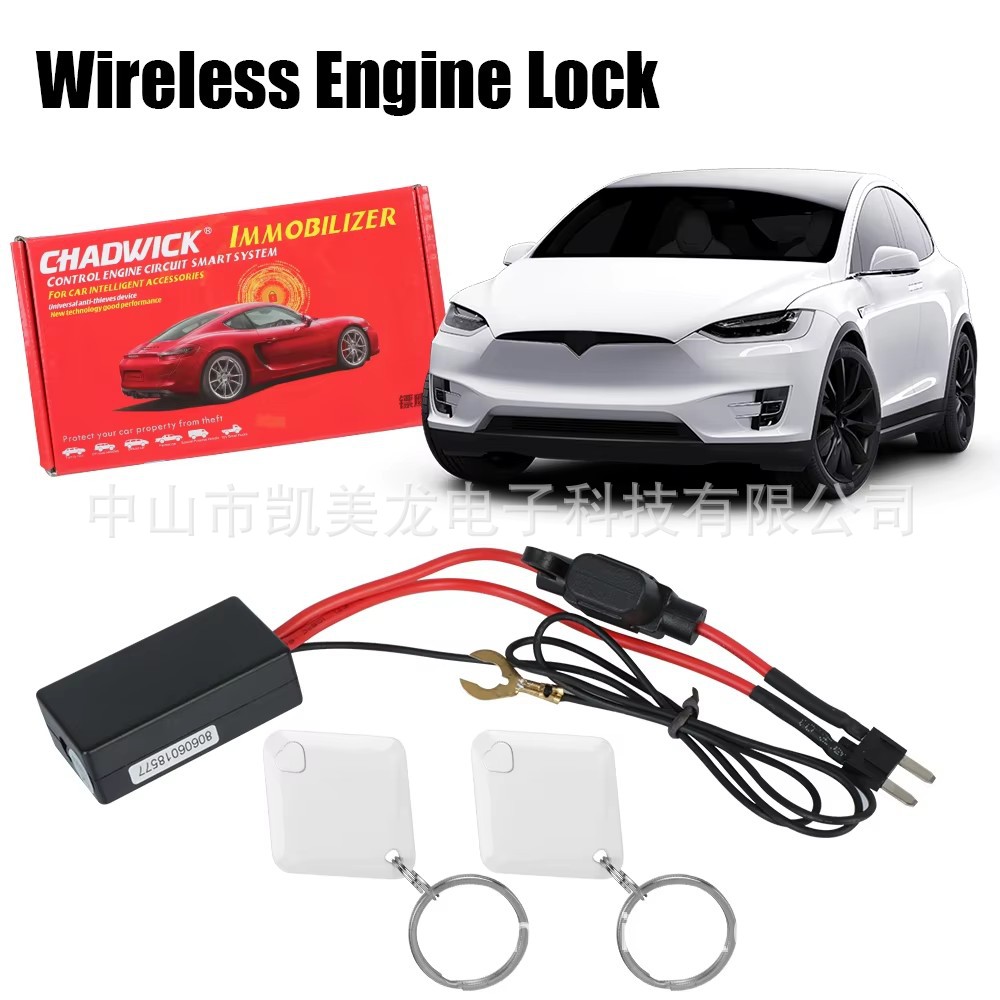

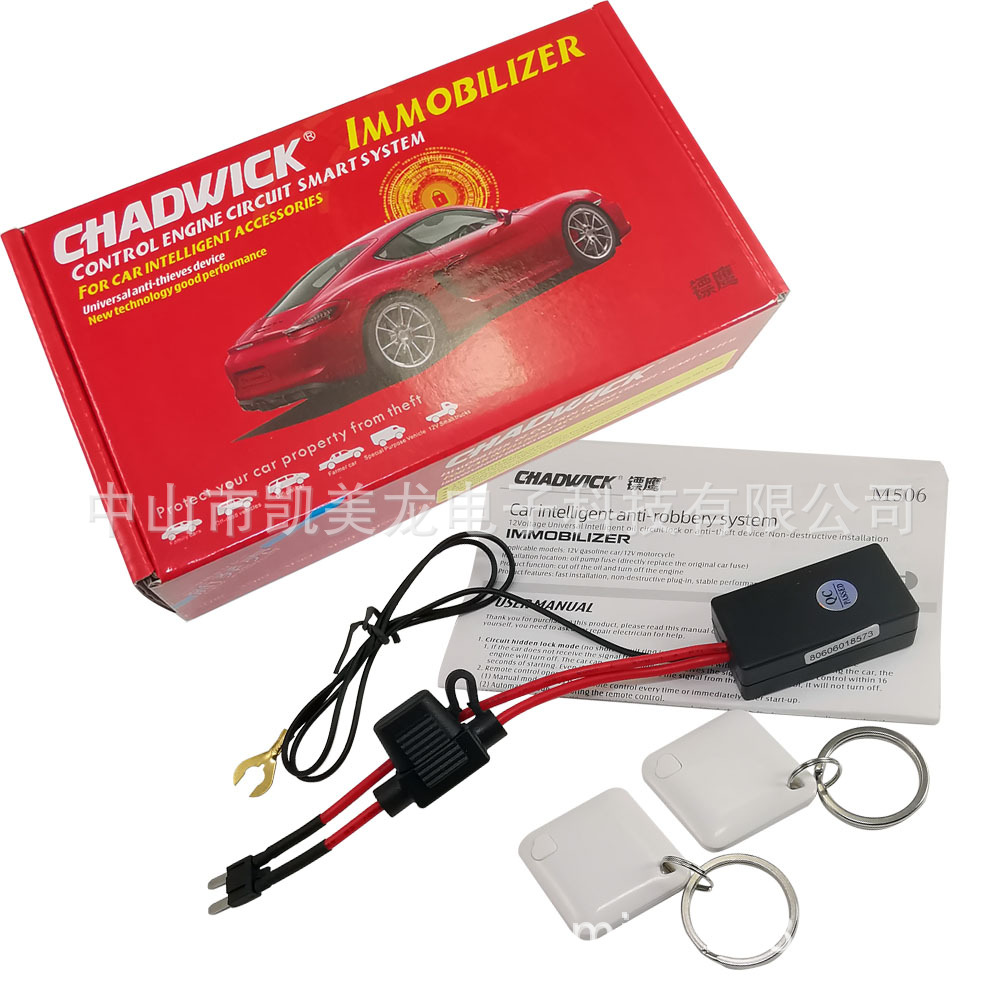

Package Include:
Package list:(1 set)

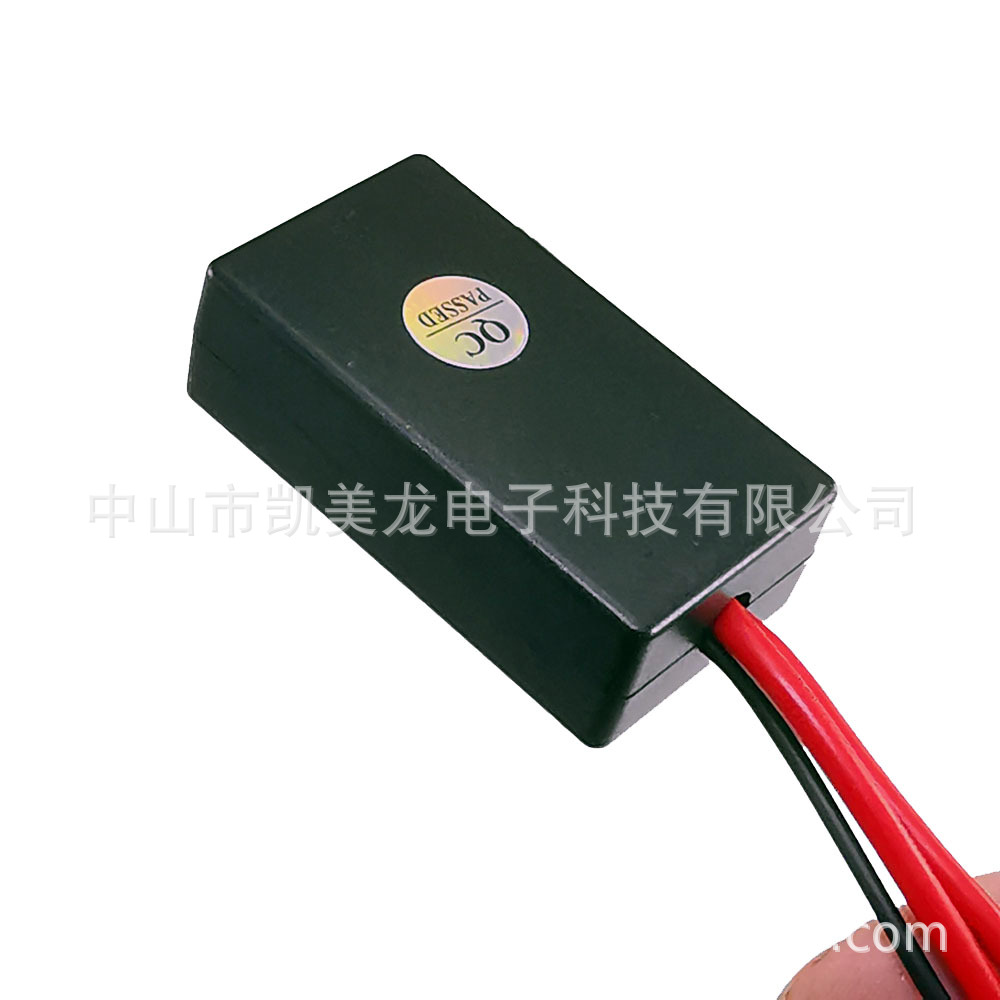

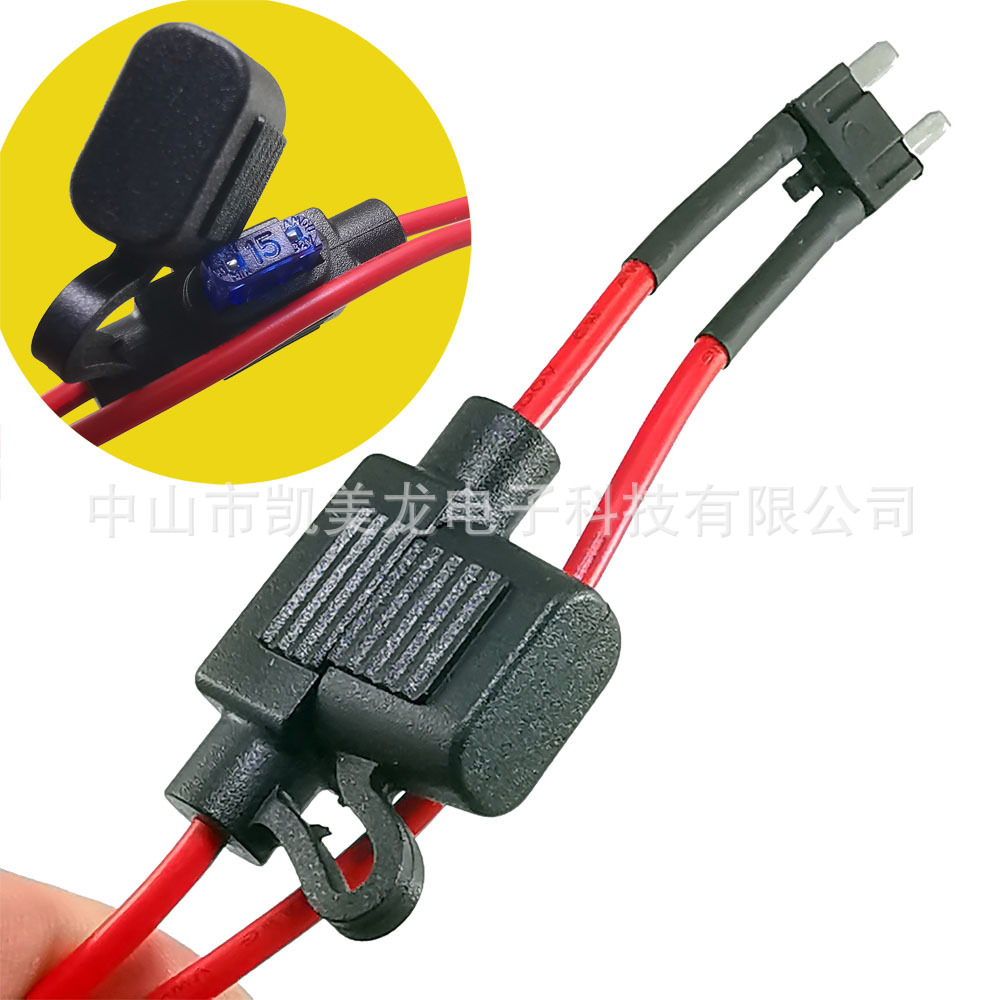

1 x Unit with wire (fuse=15A)

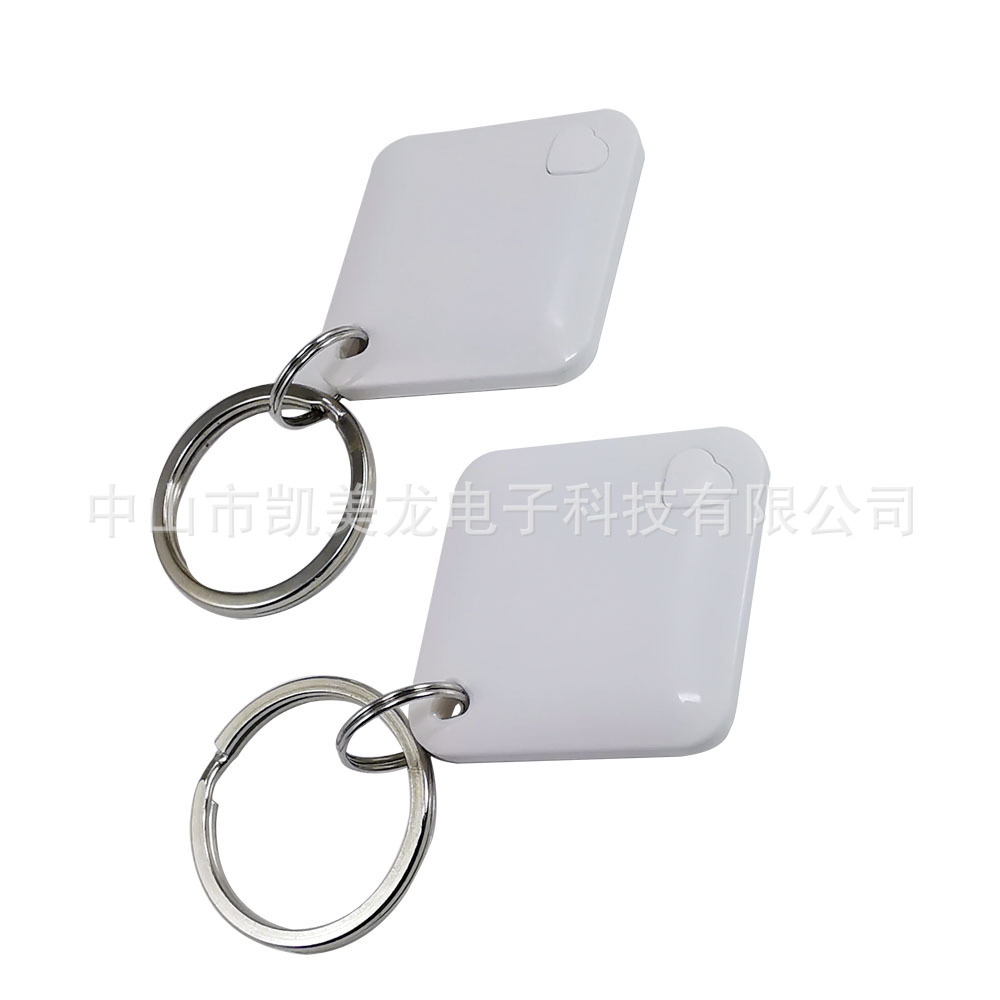

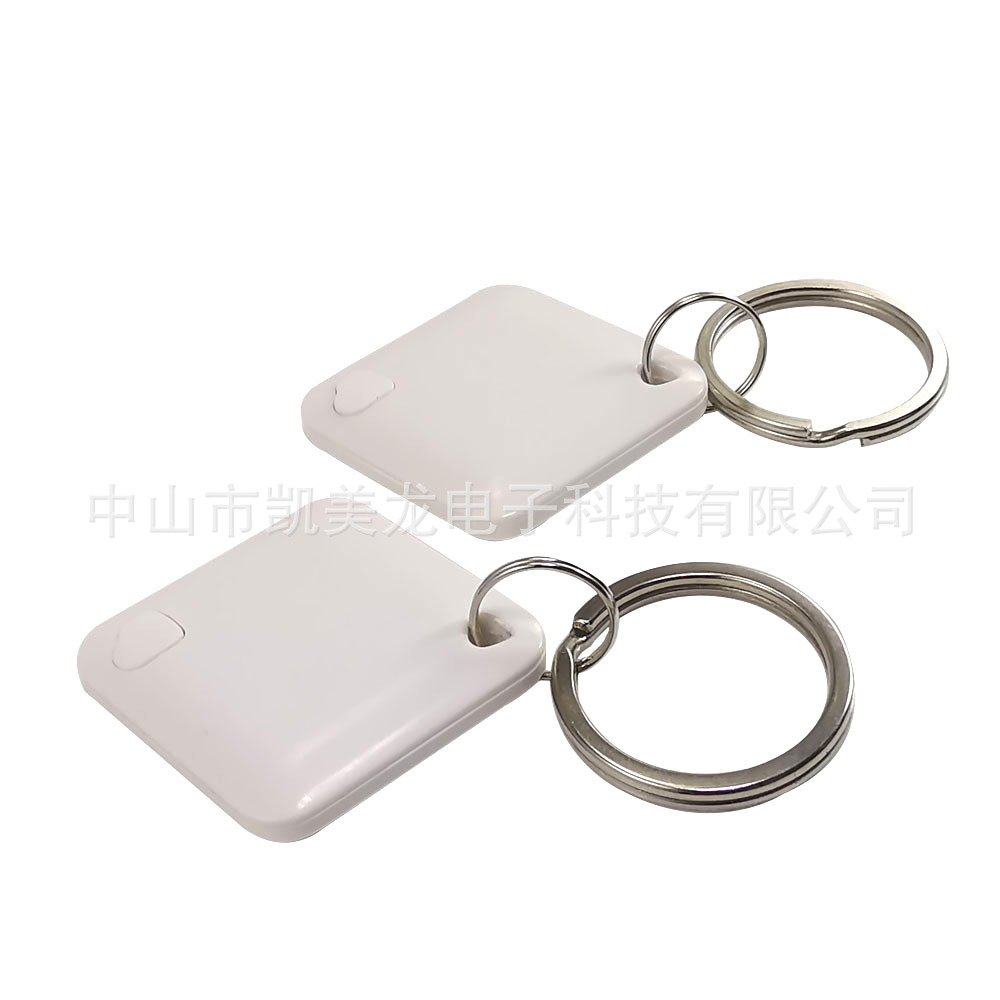

2 x Sensor Remomte
1 x User manual in English
